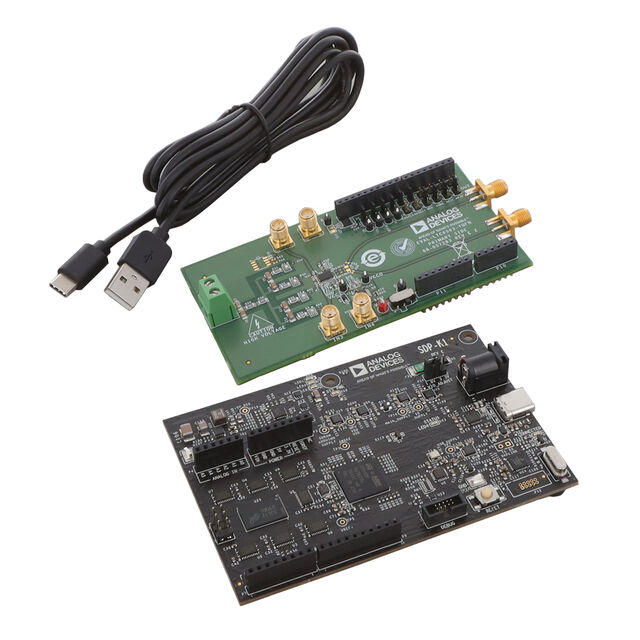

EVAL-LTC6563TQFN-EZKIT

Active

Analog Devices

LTC6563 EVAL KIT

Search across all available documentation for this part.

Active

Analog Devices

LTC6563 EVAL KIT

Technical Specifications

Parameters and characteristics for this part

Part	Board Type	Current - Supply (Main IC)	Supplied Contents	Slew Rate	Amplifier Type	Utilized IC / Part	Current - Output / Channel	-3db Bandwidth	Channels per IC	Output Type	Qualification	Grade	Type	Applications	Supplier Device Package	Mounting Type	Package / Case
Analog Devices EVAL-LTC6563TQFN-EZKIT	Fully Populated	34 mA	Board(s)	3000 V/µs	Transimpedance	LTC6563	64.5 mA	600 MHz	4	Differential
Analog Devices LTC6563HUDDM#WPBF											AEC-Q100	Automotive	Transimpedance Amplifier	Receiver	24-QFN (3x5)	Surface Mount Wettable Flank	24-WFQFN Exposed Pad
Analog Devices LTC6563HUDDM#WTRPBF													Transimpedance Amplifier	Receiver	24-QFN (3x5)	Surface Mount Wettable Flank	24-WFQFN Exposed Pad
Analog Devices LTC6563HUDDM#PBF													Transimpedance Amplifier	Receiver	24-QFN (3x5)	Surface Mount Wettable Flank	24-WFQFN Exposed Pad

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 63.62

General part information

LTC6563 4 - Quad Channels per IC Transimpedance Amplifier Evaluation Board
