AS1130B-BWLT WLP LF T&R

Active

ams-OSRAM USA INC.

IC DRVR DOT MATRIX 20WLCSP

Search across all available documentation for this part.

Active

ams-OSRAM USA INC.

IC DRVR DOT MATRIX 20WLCSP

Technical Specifications

Parameters and characteristics commom to parts in this series

IC DRVR DOT MATRIX 20WLCSP

Part	Operating Temperature [Max]	Operating Temperature [Min]	Supplier Device Package [x]	Supplier Device Package [y]	Supplier Device Package	Mounting Type	Package / Case	Interface	Configuration	Current - Supply	Voltage - Supply [Min]	Voltage - Supply [Max]	Display Type	Package / Case [custom]	Package / Case [custom]
ams-OSRAM USA INC. AS1130-BWLT WLP LF T&R	85 °C	-40 °C	2.48	2.23	20-WLCSP (2.48x2.23)	Surface Mount	20-UFBGA, WLCSP	I2C	Dot Matrix	340 mA	2.7 V	5.5 V	LED
ams-OSRAM USA INC. AS1130B-BWLT WLP LF T&R	85 °C	-40 °C	2.48	2.23	20-WLCSP (2.48x2.23)	Surface Mount	20-UFBGA, WLCSP	I2C	Dot Matrix	340 mA	2.7 V	5.5 V	LED
ams-OSRAM USA INC. AS1130B-BSST	85 °C	-40 °C			28-SSOP	Surface Mount	28-SSOP	I2C	Dot Matrix	340 mA	2.7 V	5.5 V	LED	0.209 in	5.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

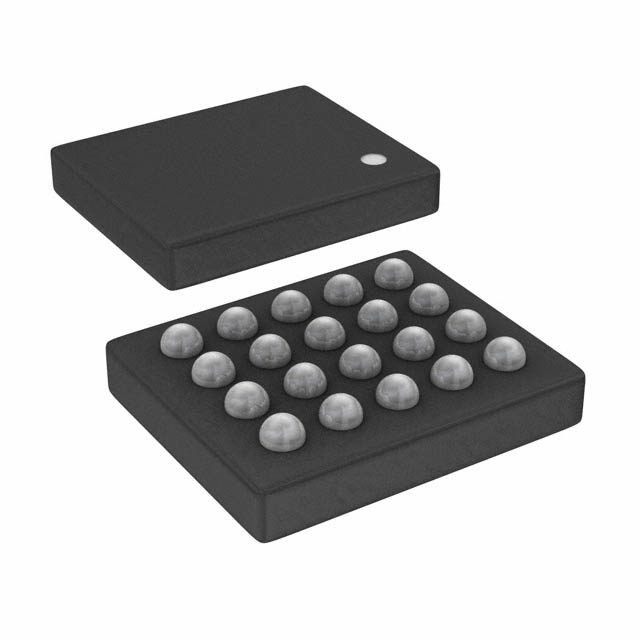

LED Driver 20-WLCSP (2.48x2.23)
