4-87230-0

Active

TE Connectivity AMP Connectors

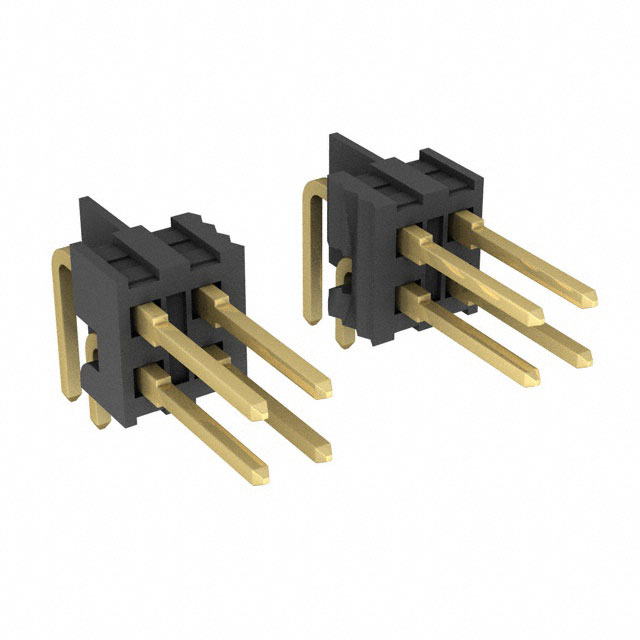

CONN HEADER R/A 80POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

4-87230-0

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 80POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	4-87230-0	87230 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Gold	Gold
Contact Finish Thickness - Mating	15 µin	15 µin
Contact Finish Thickness - Mating	0.38 µm	0.38 µm
Contact Finish Thickness - Post	Flash	Flash
Contact Length - Mating [x]	0.318 "	0.318 "
Contact Length - Mating [x]	8.08 mm	8.08 mm
Contact Length - Post	2.79 mm	2.79 mm
Contact Length - Post [x]	0.11 in	0.11 in
Contact Material	Phosphor Bronze	Phosphor Bronze
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Push-Pull	Push-Pull
Insulation Color	Black	Black
Insulation Height	6.05 mm	6.05 mm
Insulation Height	0.238 in	0.238 in
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole, Right Angle	Through Hole, Right Angle
Number of Positions	80	4 - 80
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-65 ░C	-65 ░C
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Unshrouded	Unshrouded
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder	Solder

87230 Series

CONN HEADER R/A 6POS 2.54MM

Part	Insulation Height	Insulation Height	Number of Positions Loaded	Insulation Material	Contact Length - Post [x]	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Contact Shape	Contact Type	Style	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Finish - Post	Insulation Color	Pitch - Mating	Pitch - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Number of Positions	Number of Rows	Shrouding	Mounting Type	Contact Finish Thickness - Post	Contact Material	Fastening Type	Connector Type	Contact Finish - Mating	Termination	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Positions
TE Connectivity AMP Connectors 87230-3	6.05 mm	0.238 in	All	Thermoplastic	0.11 in	2.79 mm	-65 ░C	105 ░C	3 A	Square	Male Pin	Board to Board, Cable	0.318 "	8.08 mm	Gold	Black	0.1 in	2.54 mm	15 µin	0.38 µm	UL94 V-0	6	2	Unshrouded	Through Hole, Right Angle	Flash	Phosphor Bronze	Push-Pull	Header	Gold	Solder	2.54 mm	0.1 in
TE Connectivity AMP Connectors 87230-5	6.05 mm	0.238 in	All	Thermoplastic	0.11 in	2.79 mm	-65 ░C	105 ░C	3 A	Square	Male Pin	Board to Board, Cable	0.318 "	8.08 mm	Gold	Black	0.1 in	2.54 mm	15 µin	0.38 µm	UL94 V-0	10	2	Unshrouded	Through Hole, Right Angle	Flash	Phosphor Bronze	Push-Pull	Header	Gold	Solder	2.54 mm	0.1 in
TE Connectivity AMP Connectors 87230-6	6.05 mm	0.238 in	All	Thermoplastic	0.11 in	2.79 mm	-65 ░C	105 ░C	3 A	Square	Male Pin	Board to Board, Cable	0.318 "	8.08 mm	Gold	Black	0.1 in	2.54 mm	15 µin	0.38 µm	UL94 V-0	12	2	Unshrouded	Through Hole, Right Angle	Flash	Phosphor Bronze	Push-Pull	Header	Gold	Solder	2.54 mm	0.1 in
TE Connectivity AMP Connectors 87230-9	6.05 mm	0.238 in	All	Thermoplastic	0.11 in	2.79 mm	-65 ░C	105 ░C	3 A	Square	Male Pin	Board to Board, Cable	0.318 "	8.08 mm	Gold	Black	0.1 in	2.54 mm	15 µin	0.38 µm	UL94 V-0	18	2	Unshrouded	Through Hole, Right Angle	Flash	Phosphor Bronze	Push-Pull	Header	Gold	Solder	2.54 mm	0.1 in
TE Connectivity AMP Connectors 1-87230-2	6.05 mm	0.238 in	All	Thermoplastic	0.11 in	2.79 mm	-65 ░C	105 ░C	3 A	Square	Male Pin	Board to Board, Cable	0.318 "	8.08 mm	Gold	Black	0.1 in	2.54 mm	15 µin	0.38 µm	UL94 V-0	24	2	Unshrouded	Through Hole, Right Angle	Flash	Phosphor Bronze	Push-Pull	Header	Gold	Solder	2.54 mm	0.1 in
TE Connectivity AMP Connectors 3-87230-0	6.05 mm	0.238 in	All	Thermoplastic	0.11 in	2.79 mm	-65 ░C	105 ░C	3 A	Square	Male Pin	Board to Board, Cable	0.318 "	8.08 mm	Gold	Black	0.1 in	2.54 mm	15 µin	0.38 µm	UL94 V-0	60	2	Unshrouded	Through Hole, Right Angle	Flash	Phosphor Bronze	Push-Pull	Header	Gold	Solder	2.54 mm	0.1 in
TE Connectivity AMP Connectors 87230-8	6.05 mm	0.238 in	All	Thermoplastic	0.11 in	2.79 mm	-65 ░C	105 ░C	3 A	Square	Male Pin	Board to Board, Cable	0.318 "	8.08 mm	Gold	Black	0.1 in	2.54 mm	15 µin	0.38 µm	UL94 V-0		2	Unshrouded	Through Hole, Right Angle	Flash	Phosphor Bronze	Push-Pull	Header	Gold	Solder	2.54 mm	0.1 in	16
TE Connectivity AMP Connectors 3-87230-5	6.05 mm	0.238 in	All	Thermoplastic	0.11 in	2.79 mm	-65 ░C	105 ░C	3 A	Square	Male Pin	Board to Board, Cable	0.318 "	8.08 mm	Gold	Black	0.1 in	2.54 mm	15 µin	0.38 µm	UL94 V-0	70	2	Unshrouded	Through Hole, Right Angle	Flash	Phosphor Bronze	Push-Pull	Header	Gold	Solder	2.54 mm	0.1 in
TE Connectivity AMP Connectors 1-87230-3	6.05 mm	0.238 in	All	Thermoplastic	0.11 in	2.79 mm	-65 ░C	105 ░C	3 A	Square	Male Pin	Board to Board, Cable	0.318 "	8.08 mm	Gold	Black	0.1 in	2.54 mm	15 µin	0.38 µm	UL94 V-0	26	2	Unshrouded	Through Hole, Right Angle	Flash	Phosphor Bronze	Push-Pull	Header	Gold	Solder	2.54 mm	0.1 in
TE Connectivity AMP Connectors 2-87230-0	6.05 mm	0.238 in	All	Thermoplastic	0.11 in	2.79 mm	-65 ░C	105 ░C	3 A	Square	Male Pin	Board to Board, Cable	0.318 "	8.08 mm	Gold	Black	0.1 in	2.54 mm	15 µin	0.38 µm	UL94 V-0	40	2	Unshrouded	Through Hole, Right Angle	Flash	Phosphor Bronze	Push-Pull	Header	Gold	Solder	2.54 mm	0.1 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	150	$ 22.21

Description

General part information

87230 Series

Connector Header Through Hole, Right Angle 80 position 0.100" (2.54mm)
