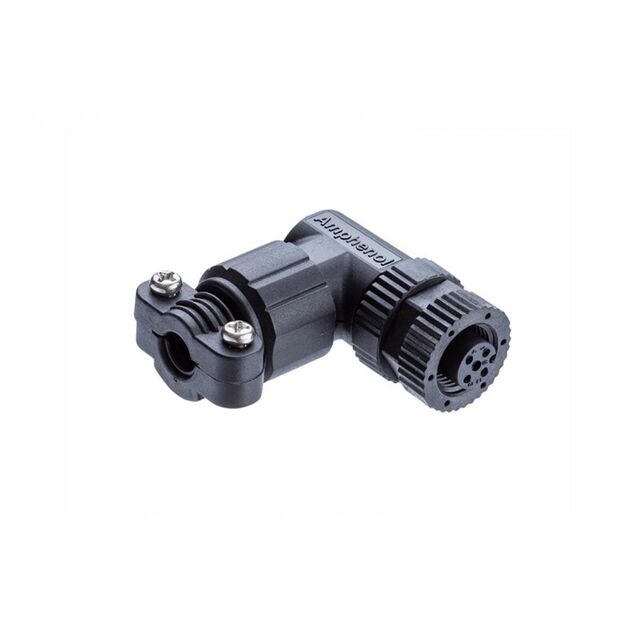

HPC-05BFFB-SR7001
ActiveAmphenol LTW
NMEA 2000, MICRO, 4A, 05 PINS, F
Deep-Dive with AI
Search across all available documentation for this part.
HPC-05BFFB-SR7001
ActiveAmphenol LTW
NMEA 2000, MICRO, 4A, 05 PINS, F
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | HPC-05BFFB-SR7001 |
|---|---|
| Cable Opening [Max] [diameter] | 0.276 in |
| Cable Opening [Max] [diameter] | 7 mm |
| Cable Opening [Min] [diameter] | 4 mm |
| Cable Opening [Min] [diameter] | 0.157 in |
| Color | Black |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 4 A |
| Features | Cable Clamp, Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Nylon, Polyamide (PA) |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shell Size - Insert | M12-5 |
| Shielding | Unshielded |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 17.46 | |
Description
General part information
HPC-05BFFB Series
5 Position Circular Connector Plug, Female Sockets Solder Cup
