39112 189100

Active

Belden Inc.

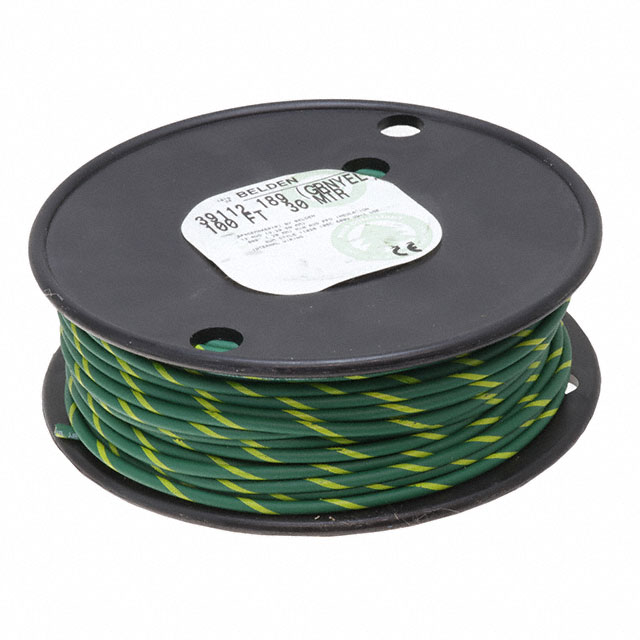

HOOK-UP STRND 12AWG GRN/YLW 100'

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet SpaceMaker™ Series

39112 189100

Active

Belden Inc.

HOOK-UP STRND 12AWG GRN/YLW 100'

Deep-Dive with AI

DocumentsDatasheet SpaceMaker™ Series

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	39112 189100

Cable Type	Hook-Up
Conductor Material	Copper, Tinned
Conductor Strand [custom]	30 AWG
Conductor Strand [custom]	65
Jacket (Insulation) Diameter [diameter]	0.111 in
Jacket (Insulation) Diameter [diameter]	2.82 mm
Jacket (Insulation) Material	Polyphenylene Oxide (PPO)
Jacket (Insulation) Thickness	0.012 in
Jacket (Insulation) Thickness	0.3 mm
Jacket Color	Green, Yellow Stripe
Length [x]	30.5 m
Length [x]	100 ft
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Ratings	UL Style 11028
Voltage	600 V
Wire Gauge	12 AWG

39112 Series

Part	Wire Gauge	Cable Type	Length	Length	Ratings	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Conductor Material	Voltage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Conductor Strand [custom]	Conductor Strand [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Jacket (Insulation) Material	Jacket Color	Length [x]	Length [x]
Belden Inc. 39112 0091000	12 AWG	Hook-Up	1000 ft	304.8 m	UL Style 11028	0.111 in	2.82 mm	Copper Tinned	600 V	0.012 in	0.3 mm	30 AWG	65	-40 °C	105 ░C	Polyphenylene Oxide (PPO)
Belden Inc. 39112 0051000	12 AWG	Hook-Up	1000 ft	304.8 m	UL Style 11028	0.111 in	2.82 mm	Copper Tinned	600 V	0.012 in	0.3 mm	30 AWG	65	-40 °C	105 ░C	Polyphenylene Oxide (PPO)	Green
Belden Inc. 39112 0131000	12 AWG	Hook-Up	1000 ft	304.8 m	UL Style 11028	0.111 in	2.82 mm	Copper Tinned	600 V	0.012 in	0.3 mm	30 AWG	65	-40 °C	105 ░C	Polyphenylene Oxide (PPO)	Blue
Belden Inc. 39112 0075000	12 AWG	Hook-Up			UL Style 11028	0.111 in	2.82 mm	Copper Tinned	600 V	0.012 in	0.3 mm	30 AWG	65	-40 °C	105 ░C	Polyphenylene Oxide (PPO)	Violet
Belden Inc. 39112 189100	12 AWG	Hook-Up			UL Style 11028	0.111 in	2.82 mm	Copper Tinned	600 V	0.012 in	0.3 mm	30 AWG	65	-40 °C	105 ░C	Polyphenylene Oxide (PPO)	Green Yellow Stripe	30.5 m	100 ft
Belden Inc. 39112 008100	12 AWG	Hook-Up			UL Style 11028	0.111 in	2.82 mm	Copper Tinned	600 V	0.012 in	0.3 mm	30 AWG	65	-40 °C	105 ░C	Polyphenylene Oxide (PPO)	Gray	30.5 m	100 ft
Belden Inc. 39112 002100	12 AWG	Hook-Up			UL Style 11028	0.111 in	2.82 mm	Copper Tinned	600 V	0.012 in	0.3 mm	30 AWG	65	-40 °C	105 ░C	Polyphenylene Oxide (PPO)	Red	30.5 m	100 ft
Belden Inc. 39112 009100	12 AWG	Hook-Up			UL Style 11028	0.111 in	2.82 mm	Copper Tinned	600 V	0.012 in	0.3 mm	30 AWG	65	-40 °C	105 ░C	Polyphenylene Oxide (PPO)		30.5 m	100 ft
Belden Inc. 39112 003100	12 AWG	Hook-Up			UL Style 11028	0.111 in	2.82 mm	Copper Tinned	600 V	0.012 in	0.3 mm	30 AWG	65	-40 °C	105 ░C	Polyphenylene Oxide (PPO)	Orange	30.5 m	100 ft
Belden Inc. 39112 0135000	12 AWG	Hook-Up			UL Style 11028	0.111 in	2.82 mm	Copper Tinned	600 V	0.012 in	0.3 mm	30 AWG	65	-40 °C	105 ░C	Polyphenylene Oxide (PPO)	Blue

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 573.02
		2	$ 544.80
		3	$ 528.83
		5	$ 509.27
		7	$ 496.71
		10	$ 483.66

Description

General part information

39112 Series

12 AWG Hook-Up Wire 65/30 Green, Yellow Stripe 600V 100.0' (30.5m)

Documents

Technical documentation and resources

Datasheet

SpaceMaker™ Series

Datasheet
