EDAC Inc.

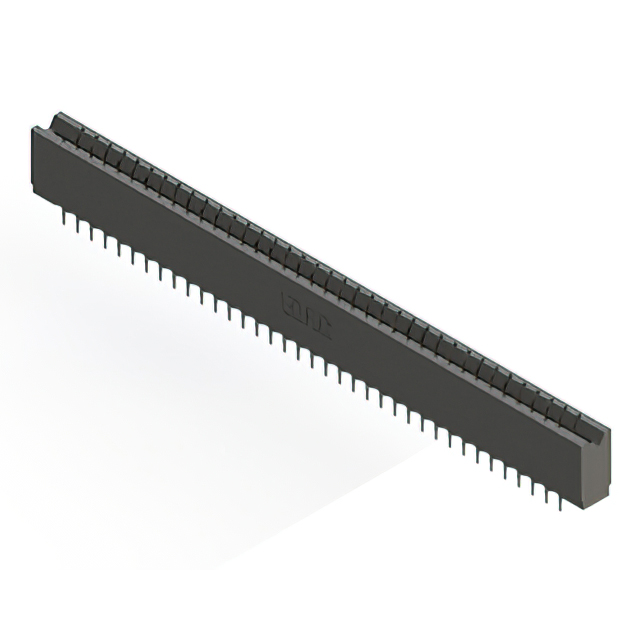

3.96MM STRAIGHT 74P -40℃~+105℃ PLUGIN,P=3.96MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

737-074-525-206

Active

EDAC Inc.

3.96MM STRAIGHT 74P -40℃~+105℃ PLUGIN,P=3.96MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	737-074-525-206

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	74
Number of Positions/Bay/Row [custom]	37
Number of Positions/Bay/Row [custom]	37
Number of Positions/Bay/Row [custom]	37
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Press-Fit
Termination Rows	2

737-074 Series

Part	Read Out	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Number of Positions/Bay/Row [custom]	Contact Type	Number of Rows	Termination Rows	Contact Material	Number of Positions	Termination	Mounting Type	Card Type	Color	Operating Temperature [Min]	Operating Temperature [Max]	Pitch [x]	Pitch [x]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Contact Finish Thickness	Contact Finish Thickness	Gender	Material - Insulation	Contact Finish
EDAC Inc. 737-074-560-201	Dual	37	37	37	Cantilever Make Before Break	2	2	Copper Alloy	74	Press-Fit	Through Hole	Non Specified - Dual Edge	Black	-40 °C	105 ░C	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	0.76 Ám	30 Áin	Female	Polyester Thermoplastic	Gold
EDAC Inc. 737-074-525-201	Dual	37	37	37	Cantilever	2	2	Copper Alloy	74	Press-Fit	Through Hole	Non Specified - Dual Edge	Black	-40 °C	105 ░C	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	0.76 Ám	30 Áin	Female	Polyester Thermoplastic	Gold
EDAC Inc. 737-074-545-206	Dual	37	37	37	Cantilever	2	2	Copper Alloy	74	Press-Fit Wire Wrap	Through Hole	Non Specified - Dual Edge	Black	-40 °C	105 ░C	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	0.76 Ám	30 Áin	Female	Polyester Thermoplastic	Gold
EDAC Inc. 737-074-545-201	Dual	37	37	37	Cantilever	2	2	Copper Alloy	74	Press-Fit Wire Wrap	Through Hole	Non Specified - Dual Edge	Black	-40 °C	105 ░C	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	0.76 Ám	30 Áin	Female	Polyester Thermoplastic	Gold
EDAC Inc. 737-074-541-201	Dual	37	37	37	Cantilever	2	2	Copper Alloy	74	Press-Fit Wire Wrap	Through Hole	Non Specified - Dual Edge	Black	-40 °C	105 ░C	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	0.76 Ám	30 Áin	Female	Polyester Thermoplastic	Gold
EDAC Inc. 737-074-560-206	Dual	37	37	37	Cantilever Make Before Break	2	2	Copper Alloy	74	Press-Fit	Through Hole	Non Specified - Dual Edge	Black	-40 °C	105 ░C	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	0.76 Ám	30 Áin	Female	Polyester Thermoplastic	Gold
EDAC Inc. 737-074-525-206	Dual	37	37	37	Cantilever	2	2	Copper Alloy	74	Press-Fit	Through Hole	Non Specified - Dual Edge	Black	-40 °C	105 ░C	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	0.76 Ám	30 Áin	Female	Polyester Thermoplastic	Gold

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 11.14
LCSC	Piece	1	$ 9.06
		200	$ 3.50
		500	$ 3.38
		1000	$ 3.32

Description

General part information

737-074 Series

74 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
