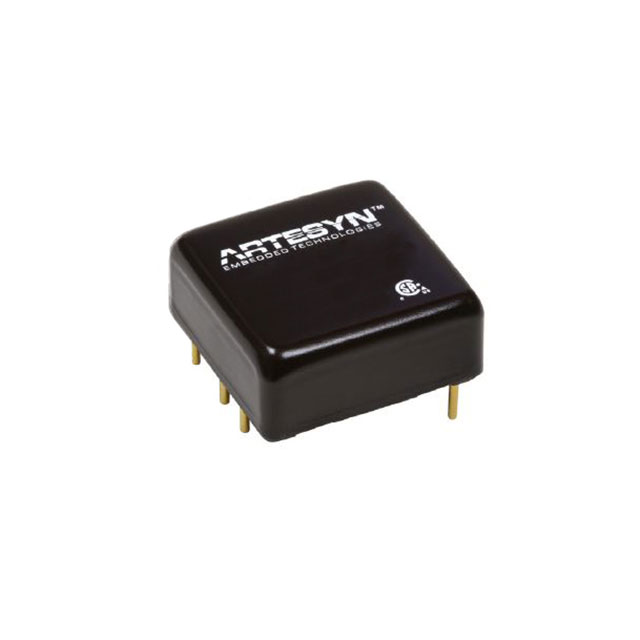

AXA00C18-L
ActiveARTESYN / Advanced Energy
ISOLATED THROUGH HOLE DC/DC CONVERTER, DIP, 4:1, 10 W, 1 OUTPUT, 15 V
AXA00C18-L
ActiveARTESYN / Advanced Energy
ISOLATED THROUGH HOLE DC/DC CONVERTER, DIP, 4:1, 10 W, 1 OUTPUT, 15 V
Description
General part information
AXA00C Series
Isolated Module DC DC Converter 1 Output 15V 660mA 9V - 36V Input
Technical Specifications
Parameters and characteristics for this part
| Specification | AXA00C18-L |
|---|---|
| Applications | ITE (Commercial) |
| Current - Output (Max) | 660 mA |
| Efficiency | 87 % |
| Features | Remote On/Off, SCP |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 85 °C |
| Operating Temperature (Min) | -40 °C |
| Package Leads | 5 Leads |
| Package Name | 6-DIP Module |
| Power (Watts) | 10 W |
| Size / Dimension Height | 0.4 in |
| Size / Dimension Length | 1 in |
| Size / Dimension Width | 1 in |
| Type | Isolated Module |
| Voltage - Input (Max) | 36 V |
| Voltage - Input (Min) | 9 V |
| Voltage - Isolation | 1500 Vrns |
| Voltage - Output 1 | 15 V |
