63205-501
ActiveLaird Thermal Systems, Inc.

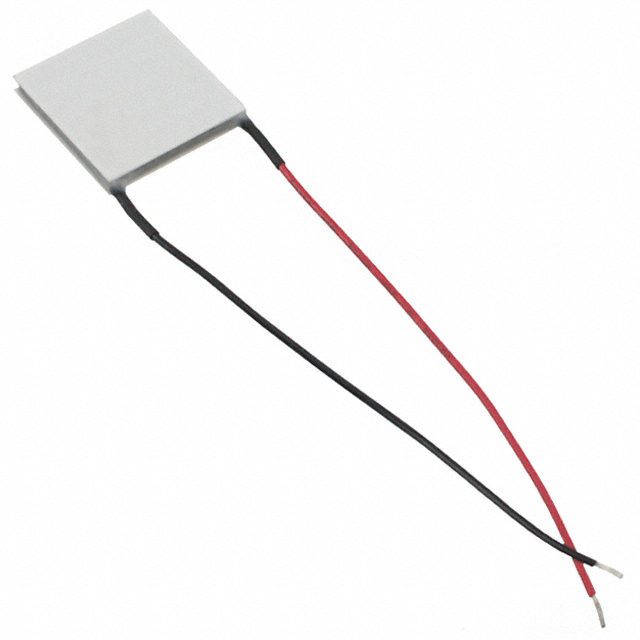

PELTIER MOD CP10,127,08,L1,W4.5
Deep-Dive with AI
Search across all available documentation for this part.
63205-501
ActiveLaird Thermal Systems, Inc.
PELTIER MOD CP10,127,08,L1,W4.5
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 63205-501 |
|---|---|
| Current - Max [Max] | 2.5 A |
| Delta Tmax @ Th | 68 °C |
| Features | Lead Wires, Non-Sealed |
| Height [z] | 3.99 mm |
| Operating Temperature | 80 °C |
| Qmax @ Th | 21.4 W |
| Resistance | 5.3 Ohms |
| Size / Dimension [x] | 29.72 mm |
| Size / Dimension [y] | 29.72 mm |
| Voltage - Max [Max] | 14.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 36.44 | |
| 5 | $ 34.16 | |||
| 20 | $ 33.33 | |||
| 40 | $ 32.09 | |||
| 60 | $ 31.26 | |||
| 100 | $ 30.43 | |||
Description
General part information
63205 Series
Peltier Module 21.4W @ 25°C 2.5 A 80°C
Documents
Technical documentation and resources
