D2514-5002-AR

Active

3M (TC)

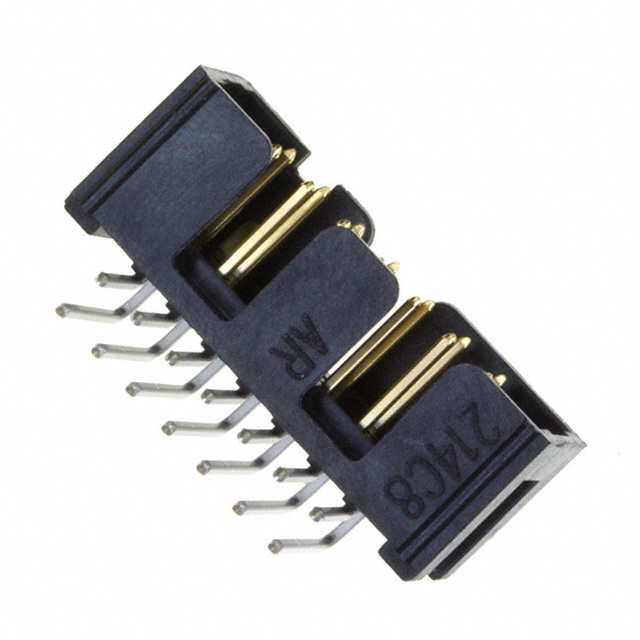

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 14 CONTACTS, THROUGH HOLE RIGHT ANGLE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Product Change Notice EN

D2514-5002-AR

Active

3M (TC)

PIN HEADER, PCB HEADER, WIRE-TO-BOARD, 2.54 MM, 2 ROWS, 14 CONTACTS, THROUGH HOLE RIGHT ANGLE

Deep-Dive with AI

DocumentsDatasheet Product Change Notice EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	D2514-5002-AR

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Finish Thickness - Post	1 çm
Contact Finish Thickness - Post	39.4 çin
Contact Length - Post	2.84 mm
Contact Length - Post	0.112 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	1.75 A
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	Black
Insulation Height	0.338 in
Insulation Height	8.59 mm
Insulation Material	Polyester, Glass Filled, Polycyclohexylenedimethylene Terephthalate (PCT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	14
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder

D2514 Series

Part	Style	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Height	Insulation Height	Features	Current Rating (Amps)	Contact Finish - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Shrouding	Fastening Type	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Post	Contact Length - Post	Contact Material	Insulation Material	Insulation Color	Number of Rows	Contact Finish - Post	Mounting Type	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Material Flammability Rating	Contact Type	Contact Shape	Connector Type	Pitch - Mating	Pitch - Mating	Number of Positions	Insulation Height [z]	Insulation Height [z]	Overall Contact Length	Overall Contact Length
3M (TC) D2514-5002-AR	Board to Cable/Wire	10 çin	0.25 çm	0.338 in	8.59 mm	Keying Slot	1.75 A	Gold	2.54 mm	0.1 in	Shrouded - 4 Wall	Push-Pull	Solder	105 ░C	-55 °C	2.84 mm	0.112 in	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	2	Tin	Through Hole Right Angle	All	1 çm	39.4 çin	UL94 V-0	Male Pin	Square	Header	0.1 in	2.54 mm	14
3M (TC) D2514-6002-AR	Board to Cable/Wire	10 çin	0.25 çm			Keying Slot	1.75 A	Gold	2.54 mm	0.1 in	Shrouded - 4 Wall	Push-Pull	Solder	105 ░C	-55 °C	2.84 mm	0.112 in	Brass	Glass Filled Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Black	2	Tin	Through Hole	All	1 çm	39.4 çin	UL94 V-0	Male Pin	Square	Header	0.1 in	2.54 mm	14	0.253 in	6.43 mm	12.5 mm	0.492 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 3.02
		10	$ 2.31
		80	$ 1.83
		440	$ 1.52
		945	$ 1.41
		4900	$ 1.20
Newark	Each	500	$ 4.13
		1000	$ 3.71

Description

General part information

D2514 Series

The D2500 series Four-wall Header with brass contacts and a high temp glass-filled polyester insulator. Optional retainer clip for locking sockets in place and increasing connection reliability in vibration prone environments. The exposed solder tails (on right angle version) are designed to provide ease of cleaning and help reduce repair costs.
