CSB-M1250M1250

Active

BANNER ENGINEERING

EURO-STYLE QUICK DISCONNECT SPLITTER CONNECTOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CSB-M1250M1250

Active

BANNER ENGINEERING

EURO-STYLE QUICK DISCONNECT SPLITTER CONNECTOR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CSB-M1250M1250

Connector Style	Distributor Y-Shaped
Convert From (Adapter End)	Female Sockets
Convert To (Adapter End)	Female Sockets (1), Male Pins (1)
Current Rating (Amps)	4 A
Features	Coupling Nut
Housing Color	Black
Housing Material	Polyurethane
Housing Material	PUR
Ingress Protection	IP67 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions (Convert From)	5
Number of Positions (Convert To)	5
Number of Positions (Convert To)	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation (Convert From)	Keyed
Orientation (Convert To)	Keyed
Shell Size - Insert (Convert From)	M12
Shell Size - Insert (Convert To) [custom]	M12
Shielding	Unshielded
Voltage Rating	300 VDC, 250 VAC

CSB-M Series

Part	Convert To (Adapter End)	Shielding	Shell Size - Insert (Convert From)	Orientation (Convert To)	Mounting Type	Convert From (Adapter End)	Number of Positions (Convert From)	Orientation (Convert From)	Connector Style	Shell Size - Insert (Convert To) [custom]	Number of Positions (Convert To)	Number of Positions (Convert To)	1st Connector Gender	Cable Material	Assembly Configuration	1st Connector Mounting Type	2nd Connector Type	2nd Connector Type	2nd Connector Number of Positions	2nd Connector Mounting Type	1st Connector Number of Positions Loaded	1st Connector Shell Size - Insert	1st Connector Type	Cable Type	Usage	2nd Connector Shell Size - Insert	2nd Connector Gender	1st Connector Orientation [custom]	Length [x]	Length [x]	1st Connector Number of Positions	Color	Ingress Protection	2nd Connector Number of Positions Loaded	Operating Temperature [Min]	Operating Temperature [Max]	Housing Color	Features	Housing Material	Housing Material	Current Rating (Amps)	Voltage Rating	Length	Length
BANNER ENGINEERING CSB-M1250M1280	Female Sockets (2)	Unshielded	M12	Keyed	Free Hanging (In-Line)	Male Pins	5	Keyed	Distributor Y-Shaped	M12	8	2
BANNER ENGINEERING CSB-M1251M1251B		Unshielded											Male Pins	Polyvinyl Chloride (PVC)	Y-Adapter on One End	Free Hanging (In-Line)	Plug	2	5	Free Hanging (In-Line)	All	M12	Receptacle	Round - Split	Industrial Environments	M12	Female Sockets	Keyed	2 '	609.6 mm	5	Black	IP67 - Dust Tight Waterproof	All
BANNER ENGINEERING CSB-M1250M1250	Female Sockets (1) Male Pins (1)	Unshielded	M12	Keyed	Free Hanging (In-Line)	Female Sockets	5	Keyed	Distributor Y-Shaped	M12	5	2																					IP67 - Dust Tight Waterproof		-40 °C	105 ░C	Black	Coupling Nut	Polyurethane	PUR	4 A	250 VAC 300 VDC
BANNER ENGINEERING CSB-M12415M1241		Unshielded											Male Pins	Polyvinyl Chloride (PVC)	Y-Adapter on One End	Free Hanging (In-Line)	Plug	2	4	Free Hanging (In-Line)	All	M12	Receptacle	Round - Split	Industrial Environments	M12	Female Sockets	Keyed			4	Black	IP67 - Dust Tight Waterproof	All									4.88 m	16 '
BANNER ENGINEERING CSB-M1241M1241		Unshielded											Male Pins	Polyvinyl Chloride (PVC)	Y-Adapter on One End	Free Hanging (In-Line)	Plug	2	4	Free Hanging (In-Line)	All	M12	Receptacle	Round - Split	Industrial Environments	M12	Female Sockets	Keyed			4	Black	IP67 - Dust Tight Waterproof	All									304.8 mm	1 ft
BANNER ENGINEERING CSB-M1281M1281		Unshielded											Male Pins	Polyvinyl Chloride (PVC)	Y-Adapter on One End	Free Hanging (In-Line)	Plug	2	8	Free Hanging (In-Line)	All	M12	Receptacle	Round - Split	Industrial Environments	M12	Female Sockets	Keyed			8 positions	Yellow	IP67 - Dust Tight Waterproof	All									304.8 mm	1 ft
BANNER ENGINEERING CSB-M1258M1251		Unshielded											Male Pins	Polyvinyl Chloride (PVC)	Y-Adapter on One End	Free Hanging (In-Line)	Plug	2	5	Free Hanging (In-Line)	All	M12	Receptacle	Round - Split	Industrial Environments	M12	Female Sockets	Keyed			5	Black	IP67 - Dust Tight Waterproof	All									2.74 m	9 '

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 34.00
Newark	Each	1	$ 35.00

Description

General part information

CSB-M Series

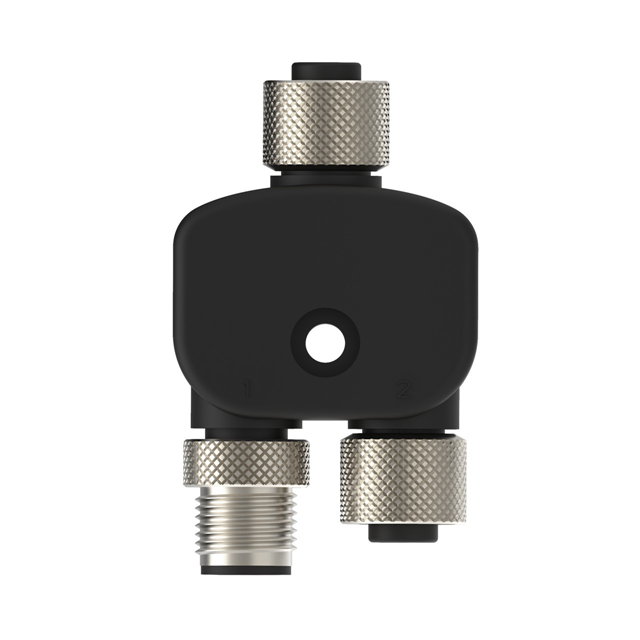

Circular Connector Distributor Y-Shaped 5/5 (2) Female Sockets/Female Sockets (1), Male Pins (1) Free Hanging (In-Line)
