1446000-2
ObsoleteTE Connectivity Raychem Cable Protection
CONN PLUG 2POS PNL MNT CRIMP
Deep-Dive with AI
Search across all available documentation for this part.
1446000-2
ObsoleteTE Connectivity Raychem Cable Protection
CONN PLUG 2POS PNL MNT CRIMP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 1446000-2 |
|---|---|
| Color | Blue |
| Connector Style | 2 Poles |
| Connector Type | Non-Gendered |
| Contact Finish | Silver |
| Contact Material | Copper |
| Current Rating (Amps) | 120 A |
| Fastening Type | Spring Retention |
| Material - Insulation | Polycarbonate |
| Material - Insulation | PC |
| Number of Positions | 2 |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -20 C |
| Termination | Crimp |
| Voltage Rating | 600 V |
| Wire Gauge | 6 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
1446000 Series

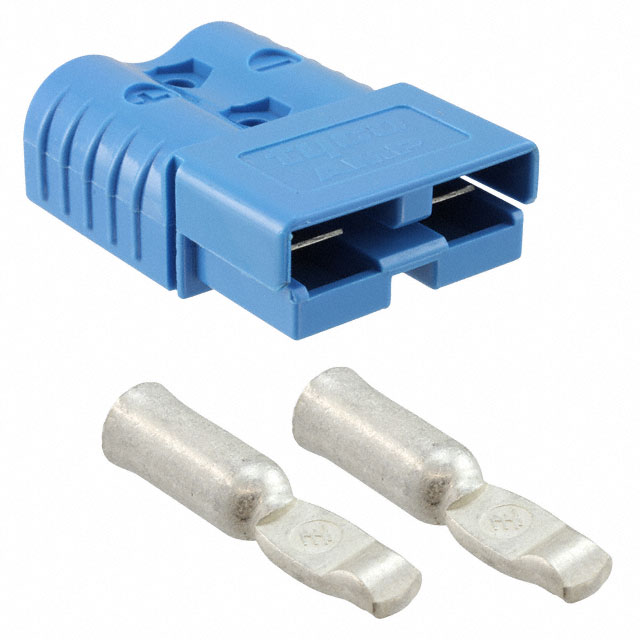

2 Position Non-Gendered Connector Crimp Panel Mount
Documents
Technical documentation and resources
No documents available
