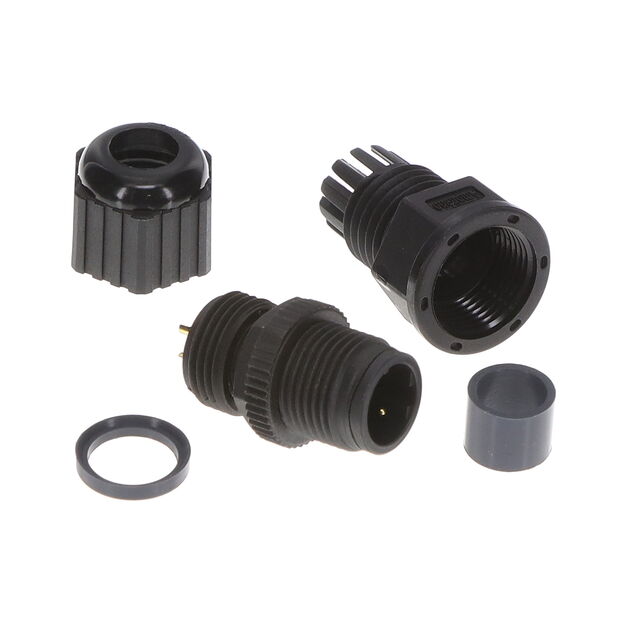

MSDP-03BMMA-SL8001
ActiveAmphenol LTW
M SERIES, M12, 4A, 03 PINS, FIEL
Deep-Dive with AI
Search across all available documentation for this part.
MSDP-03BMMA-SL8001
ActiveAmphenol LTW
M SERIES, M12, 4A, 03 PINS, FIEL
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MSDP-03BMMA-SL8001 |
|---|---|
| Backshell Material, Plating | Thermoplastic |
| Cable Opening [diameter] | 4.5 mm, 6.5 mm |
| Cable Opening [diameter] | 0.256 in, 0.177 in |
| Color | Black |
| Connector Type | Plug, Male Pins |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | 4 A |
| Features | Coupling Nut, Backshell |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Mounting Type | Free Hanging (In-Line) |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | D |
| Primary Material | Plastic |
| Shell Size - Insert | M12-3 |
| Shielding | Unshielded |
| Voltage Rating | 60 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.63 | |
| 10 | $ 6.48 | |||
| 100 | $ 5.51 | |||
| 1000 | $ 4.69 | |||
Description
General part information
MSDP-03BMMA Series
3 Position Circular Connector Plug, Male Pins Solder Cup
