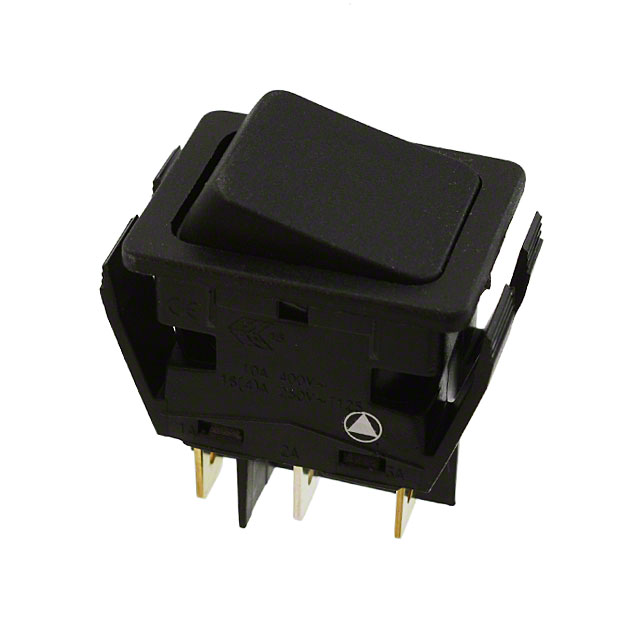

C6061ALBB-B
ActiveBULGIN LIMITED
SWITCH ROCKER DPDT 20A 277V
Deep-Dive with AI
Search across all available documentation for this part.
C6061ALBB-B
ActiveBULGIN LIMITED
SWITCH ROCKER DPDT 20A 277V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | C6061ALBB-B |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Flat |
| Approval Agency | UL, ENEC, CSA |
| Circuit | DPDT |
| Color - Actuator/Cap | Black |
| Current Rating (Amps) | 20 A |
| Features | Antimicrobial |
| Ingress Protection | Splash Proof |
| Mounting Type | Panel Mount, Snap-In |
| Panel Cutout Dimensions [x] | 30.1 mm |
| Panel Cutout Dimensions [y] | 22.2 mm |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.250" (6.3mm) |
| Voltage Rating - AC | 277 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
C6061AL Series
Rocker Switch DPDT 20A (AC) 277 V Panel Mount, Snap-In
Documents
Technical documentation and resources
