EGG.1B.661.ZZM

Active

LEMO

CONTACT SOCKET 22-26AWG CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

EGG.1B.661.ZZM

Active

LEMO

CONTACT SOCKET 22-26AWG CRIMP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 4.37

Description

General part information

EGG.1B Series

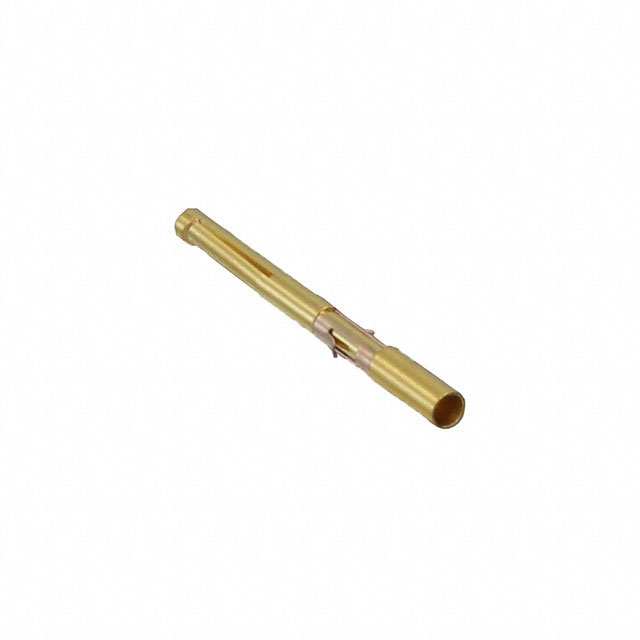

Socket Contact 22-26 AWG Size 0.9mm Crimp Gold

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	EGG.1B.661.ZZM	EGG.1B Series

Color	-	Silver
Connector Type	-	Receptacle, Female Sockets, Female Sockets, Insert, Receptacle Housing
Contact Finish	Gold	Gold
Contact Finish - Mating	-	Gold
Contact Finish Thickness - Mating	-	59 Áin
Contact Finish Thickness - Mating	-	1.5 Ám
Contact Material	Bronze	Bronze, Copper
Contact Shape	-	Circular
Contact Size	0.9 mm	0.5 - 1.3 mm
Contact Termination	Crimp	Crimp
Contact Type	Socket	Socket, Crimp and Solder Cup, Crimp
Current Rating (Amps)	-	1.5 - 15 A
Fastening Type	-	Push-Pull, Detent Lock
Features	-	Insert Only, Requires Shell
Housing Color	-	Silver
Ingress Protection	-	IP50
Insert Material	-	Polyetheretherketone (PEEK)
Material Flammability Rating	-	UL94 V-0
Mounting Feature	-	Bulkhead - Rear Side Nut
Mounting Type	-	Through Hole, Panel Mount, Right Angle
Note	-	Note: Contacts Not Included; Insert Only, Requires Shell, Contacts Not Included
Number of Positions	-	2 - 14
Number of Positions	-	16
Operating Temperature	-	-55 °C
Operating Temperature	-	250 °C
Orientation	-	G
Primary Material	-	Metal
Shell Finish	-	Chrome
Shell Material	-	Brass
Shell Size - Insert	-	302 - 731
Shielding	-	Shielded, Unshielded
Termination	-	Crimp, Solder
Type	Signal, Machined	Signal, Machined, For Female Sockets
Wire Gauge or Range - AWG [Max]	26 AWG	20 - 32 AWG
Wire Gauge or Range - AWG [Min]	22 AWG	18 - 28 AWG
Wire Gauge or Range - mm˛ [Max]	0.34 mm˛	0.34 mm˛
Wire Gauge or Range - mm˛ [Min]	0.14 mm˛	0.14 mm˛
Wire Gauge or Range - mm²	-	0.04 - 0.5 mm²
Wire Gauge or Range - mm²	-	0.09 - 1 mm²

EGG.1B Series

CONTACT SOCKET 22-26AWG CRIMP

Part	Contact Type	Type	Contact Termination	Contact Finish	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Contact Size	Contact Material	Wire Gauge or Range - mm˛ [Min]	Wire Gauge or Range - mm˛ [Max]	Primary Material	Shell Finish	Shielding	Insert Material	Shell Size - Insert	Ingress Protection	Connector Type	Mounting Feature	Orientation	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Fastening Type	Shell Material	Termination	Material Flammability Rating	Color	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Note	Contact Shape	Features	Wire Gauge or Range - mm² [Min]	Wire Gauge or Range - mm² [Max]	Housing Color
LEMO EGG.1B.661.ZZM	Socket	Machined, Signal	Crimp	Gold	22 AWG	26 AWG	0.9 mm	Bronze	0.14 mm˛	0.34 mm˛
LEMO EGG.1B.303.CYM								Bronze			Metal	Chrome	Shielded	Polyetheretherketone (PEEK)	303	IP50	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	G	Gold	59 Áin	1.5 Ám	Push-Pull	Brass	Crimp	UL94 V-0	Silver	12 A	-55 °C	250 °C
LEMO EGG.1B.404.YL	Crimp and Solder Cup	For Female Sockets					0.9 mm						Unshielded		404	IP50			G										-55 °C	250 °C	4	Note: Contacts Not Included; Insert Only, Requires Shell	Circular
LEMO EGG.1B.655.ZZF	Socket	Machined, Signal	Crimp	Gold	22 AWG	26 AWG	0.7 mm	Bronze	0.14 mm˛	0.34 mm˛
LEMO EGG.1B.731.ZJL								Bronze					Shielded	Polyetheretherketone (PEEK)	731	IP50	Female Sockets, Insert		G	Gold	59 Áin	1.5 Ám				UL94 V-0		12 A	-55 °C	250 °C				Insert Only, Requires Shell
LEMO EGG.1B.660.ZZM	Socket	Machined, Signal	Crimp	Gold	20 AWG	24 AWG	0.9 mm	Bronze																											0.25 mm²	0.5 mm²
LEMO EGG.1B.314.ZLL								Bronze					Shielded	Polyetheretherketone (PEEK)	314	IP50	Female Sockets, Insert		G	Gold	59 Áin	1.5 Ám				UL94 V-0		2 A	-55 °C	250 °C	14			Insert Only, Requires Shell
LEMO EGG.1B.306.CYZ	Crimp	For Female Sockets					0.7 mm					Chrome	Shielded	Polyetheretherketone (PEEK)	306	IP50	Receptacle Housing	Bulkhead - Rear Side Nut	G				Detent Lock, Push-Pull	Brass					-55 °C	250 °C	6	Contacts Not Included	Circular				Silver
LEMO EGG.1B.305.CYM								Bronze			Metal	Chrome	Shielded	Polyetheretherketone (PEEK)	305	IP50	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	G	Gold	59 Áin	1.5 Ám	Push-Pull	Brass	Crimp	UL94 V-0	Silver	9 A	-55 °C	250 °C
LEMO EGG.1B.308.CLL								Bronze			Metal	Chrome	Shielded	Polyetheretherketone (PEEK)	308	IP50	Receptacle, Female Sockets	Bulkhead - Rear Side Nut	G	Gold	59 Áin	1.5 Ám	Push-Pull	Brass		UL94 V-0	Silver	5 A	-55 °C	250 °C	8
