FS400R07A1E3S7BOMA1

Active

Infineon Technologies

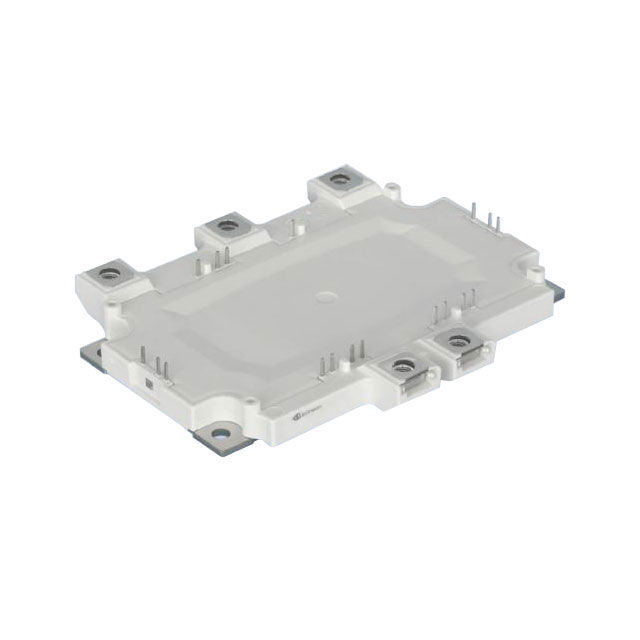

THE FS400R07A1E3_S7 IS AN AUTOMOTIVE QUALIFIED SIXPACK IGBT3 - E3 MODULE IN A HYBRIDPACK™ 1 HOUSING FOR AUTOMOTIVE APPLICATIONS UP TO 650 V AND 400 A.

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

FS400R07A1E3S7BOMA1

Active

Infineon Technologies

THE FS400R07A1E3_S7 IS AN AUTOMOTIVE QUALIFIED SIXPACK IGBT3 - E3 MODULE IN A HYBRIDPACK™ 1 HOUSING FOR AUTOMOTIVE APPLICATIONS UP TO 650 V AND 400 A.

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	FS400R07A1E3S7BOMA1

Configuration	Full Bridge Inverter
Current - Collector (Ic) (Max) [Max]	500 A
IGBT Type	Trench Field Stop
Input	Three Phase Bridge Rectifier
Input Capacitance (Cies) @ Vce	28 nF
Mounting Type	Chassis Mount
NTC Thermistor	True
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Max [Max]	1250 W
Supplier Device Package	AG-HYBRID1-1
Vce(on) (Max) @ Vge, Ic	1.7 V
Voltage - Collector Emitter Breakdown (Max)	705 V

FS400R07 Series

Part	Supplier Device Package	Configuration	Vce(on) (Max) @ Vge, Ic	Operating Temperature [Max]	Operating Temperature [Min]	Current - Collector (Ic) (Max) [Max]	IGBT Type	Voltage - Collector Emitter Breakdown (Max)	Input Capacitance (Cies) @ Vce	Mounting Type	Input	Package / Case	Power - Max [Max]	Operating Temperature
Infineon Technologies FS400R07A1E3S7BOMA1	AG-HYBRID1-1	Full Bridge Inverter	1.7 V	150 °C	-40 °C	500 A	Trench Field Stop	705 V	28 nF	Chassis Mount	Three Phase Bridge Rectifier	Module	1250 W
Infineon Technologies FS400R07A3E3BOMA1
Infineon Technologies FS400R07A3E3H6BPSA1	Module	Three Phase Inverter				400 A		650 V		Chassis Mount	Standard	Module		175 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 353.81
		16	$ 340.51

Description

General part information

FS400R07 Series

HybridPACKTM1 700 V, 400 A 3-phase six-pack TRENCHSTOPTMIGBT3 with emitter controlled diode is anautomotive qualified power moduledesigned forelectric vehicle applications. The HybridPACKTM1 power module is built on Infineon’s long time experience in the development of IGBT power modules, intense research efforts of new material combinations and assembly technologies. HybridPACKTM1 is suitable for air or liquid cooling. The copper base plate combined with high-performance ceramic substrate and Infineon’s enhanced wire-bonding process provides unparalleled thermal and power cycling capability and highest reliability for mild hybrid inverter or generator applications. For a compact design the driver stage PCB can easily be soldered on top of the module. All power connections are realized with screw terminals.

Documents

Technical documentation and resources
