316-015-420-108
ActiveEDAC Inc.

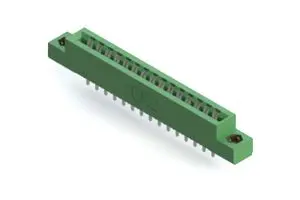

CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 15 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
316-015-420-108
ActiveEDAC Inc.
CARD EDGE CONNECTOR, SINGLE SIDE, 1.57 MM, 15 CONTACTS, THROUGH HOLE MOUNT, STRAIGHT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 316-015-420-108 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Green |
| Contact Finish | Tin |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Flange Feature | Flush Mount, Threaded Insert, 4-40, Top Opening |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Through Hole, Panel Mount |
| Number of Positions | 30 |
| Number of Positions/Bay/Row [custom] | 15 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 1 |
316-015 Series
| Part | Contact Type | Contact Finish | Pitch [x] | Pitch [x] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Number of Positions | Contact Material | Material - Insulation | Number of Positions/Bay/Row [custom] | Gender | Flange Feature | Termination Rows | Contact Finish Thickness | Contact Finish Thickness | Color | Card Type | Read Out | Features | Termination | Mounting Type | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Cantilever | Gold | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 2 | 30 | Copper Alloy | Polyester Thermoplastic | 15 | Female | 4-40 Flush Mount Threaded Insert Top Opening | 1 | 10 Áin | 0.25 Ám | Green | Non Specified - Dual Edge | Dual | Card Guides | Solder Eyelet(s) | |||
EDAC Inc. | Cantilever | Tin | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 2 | 30 | Copper Alloy | Polyester Thermoplastic | 15 | Female | 4-40 Flush Mount Threaded Insert Top Opening | 1 | Green | Non Specified - Dual Edge | Dual | Solder | Panel Mount Through Hole | |||||
EDAC Inc. | Cantilever | Gold | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 2 | 30 | Copper Alloy | Polyester Thermoplastic | 15 | Female | Flush Mount Top Opening Unthreaded | 1 | 10 Áin | 0.25 Ám | Green | Non Specified - Dual Edge | Dual | Solder | Through Hole | 3.96 mm | 0.156 in | |
EDAC Inc. | Cantilever | Tin | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 2 | 30 | Copper Alloy | Polyester Thermoplastic | 15 | Female | 4-40 Flush Mount Threaded Insert Top Opening | 1 | Green | Non Specified - Dual Edge | Dual | Card Guides | Solder | Panel Mount Through Hole | ||||
EDAC Inc. | Cantilever | Tin | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 2 | 30 | Copper Alloy | Polyester Thermoplastic | 15 | Female | Flush Mount Side Opening Unthreaded | 1 | Green | Non Specified - Dual Edge | Dual | Solder | Panel Mount Through Hole | 3.25 mm | 0.128 " | |||
EDAC Inc. | Cantilever | Gold | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 2 | 30 | Copper Alloy | Polyester Thermoplastic | 15 | Female | Flush Mount Side Opening Unthreaded | 1 | 10 Áin | 0.25 Ám | Green | Non Specified - Dual Edge | Dual | Solder Eyelet(s) | 3.25 mm | 0.128 " | ||
EDAC Inc. | Cantilever | Tin | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 2 | 30 | Copper Alloy | Polyester Thermoplastic | 15 | Female | 4-40 Flush Mount Threaded Insert Top Opening | 1 | Green | Non Specified - Dual Edge | Dual | Card Guides | Solder | Panel Mount Through Hole | ||||
EDAC Inc. | Cantilever | Tin | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 2 | 30 | Copper Alloy | Polyester Thermoplastic | 15 | Female | 4-40 Flush Mount Threaded Insert Top Opening | 1 | Green | Non Specified - Dual Edge | Dual | Card Guides | Solder Eyelet(s) | |||||
EDAC Inc. | Cantilever | Tin | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 2 | 30 | Copper Alloy | Polyester Thermoplastic | 15 | Female | 1 | Green | Non Specified - Dual Edge | Dual | Solder Eyelet(s) | Free Hanging (In-Line) | ||||||
EDAC Inc. | Cantilever | Tin | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | -40 °C | 105 ░C | 2 | 30 | Copper Alloy | Polyester Thermoplastic | 15 | Female | Floating Bobbin Flush Mount | 1 | Green | Non Specified - Dual Edge | Dual | Solder | Panel Mount Through Hole | 2.95 mm | 0.116 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
316-015 Series
30 Position Female Connector Non Specified - Dual Edge Tin 0.156" (3.96mm) Green
