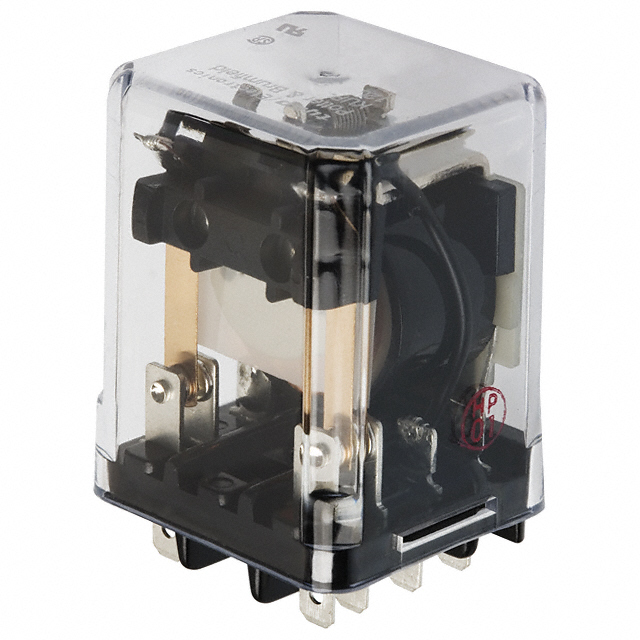

KUEP-11A15-120

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE DPDT 10A 120V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

KUEP-11A15-120

Active

TE Connectivity Potter & Brumfield Relays

RELAY GEN PURPOSE DPDT 10A 120V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	KUEP-11A15-120

Approval Agency	CSA, UR
Coil Current	24 mA
Coil Insulation	Class B
Coil Resistance	1.7 kOhms
Coil Type	Non Latching
Coil Voltage	120 VAC
Contact Form	DPDT (2 Form C)
Contact Material	Silver Cadmium Oxide (AgCdO)
Contact Rating (Current)	10 A
Load - Max Switching	1500 VA
Mounting Type	Socketable
Must Operate Voltage	102 VAC
Operate Time	15 ms
Operating Temperature [Max] [custom]	45 °C
Operating Temperature [Min] [custom]	-45 °C
Relay Type	General Purpose
Release Time	10 ms
Switching Voltage	150 VDC
Termination Style	Plug In, Quick Connect - 0.187" (4.7mm)

KUEP-11 Series

Part	Contact Material	Operating Temperature [Max] [custom]	Operating Temperature [Min] [custom]	Coil Resistance	Switching Voltage	Coil Type	Approval Agency	Relay Type	Release Time	Coil Voltage	Mounting Type	Coil Current	Operate Time	Coil Insulation	Must Operate Voltage	Contact Rating (Current)	Load - Max Switching	Contact Form	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]
TE Connectivity Potter & Brumfield Relays KUEP-11AT5-120	Silver Cadmium Oxide (AgCdO)	45 °C	-45 °C	1.7 kOhms	150 VDC	Non Latching	CSA UR	General Purpose	10 ms	120 VAC	Chassis Mount	70.6 mA	15 ms	Class B	102 VAC	10 A	1500 VA	DPDT (2 Form C)	Quick Connect - 0.187" (4.7mm)
TE Connectivity Potter & Brumfield Relays KUEP-11A15-240	Silver Cadmium Oxide (AgCdO)	45 °C	-45 °C	7.2 kOhms	150 VDC	Non Latching	CSA UR	General Purpose	10 ms	240 VAC	Socketable	12 mA	15 ms	Class B	204 VAC	10 A	1500 VA	DPDT (2 Form C)	Plug In Quick Connect - 0.187" (4.7mm)
TE Connectivity Potter & Brumfield Relays KUEP-11D15-48	Silver Cadmium Oxide (AgCdO)			1250 Ohms	150 VDC	Non Latching	CSA UR	General Purpose	10 ms	48 VDC	Socketable	38 mA	15 ms	Class B	36 VDC	10 A	1500 VA	DPDT (2 Form C)	Plug In Quick Connect - 0.187" (4.7mm)	-45 °C	70 °C
TE Connectivity Potter & Brumfield Relays KUEP-11A15-120	Silver Cadmium Oxide (AgCdO)	45 °C	-45 °C	1.7 kOhms	150 VDC	Non Latching	CSA UR	General Purpose	10 ms	120 VAC	Socketable	24 mA	15 ms	Class B	102 VAC	10 A	1500 VA	DPDT (2 Form C)	Plug In Quick Connect - 0.187" (4.7mm)
TE Connectivity Potter & Brumfield Relays KUEP-11A35-120	Silver Cadmium Oxide (AgCdO)	45 °C	-45 °C	1.7 kOhms	150 VDC	Non Latching	CSA UR	General Purpose	10 ms	120 VAC	Socketable	24 mA	15 ms	Class B	102 VAC	10 A	1500 VA	DPDT (2 Form C)	Plug In Quick Connect - 0.187" (4.7mm)
TE Connectivity Potter & Brumfield Relays KUEP-11D17-48	Silver Cadmium Oxide (AgCdO)			1250 Ohms	150 VDC	Non Latching	CSA UR	General Purpose	10 ms	48 VDC	Through Hole	38 mA	15 ms	Class B	36 VDC	10 A	1500 VA	DPDT (2 Form C)	PC Pin	-45 °C	70 °C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 45.43
		10	$ 43.16
		25	$ 40.89
		50	$ 38.62
		100	$ 36.34
		250	$ 34.07

Description

General part information

KUEP-11 Series

General Purpose Relay DPDT (2 Form C) 120VAC Coil Socketable
