PTA4553-2015CPB204

Active

Bourns Inc.

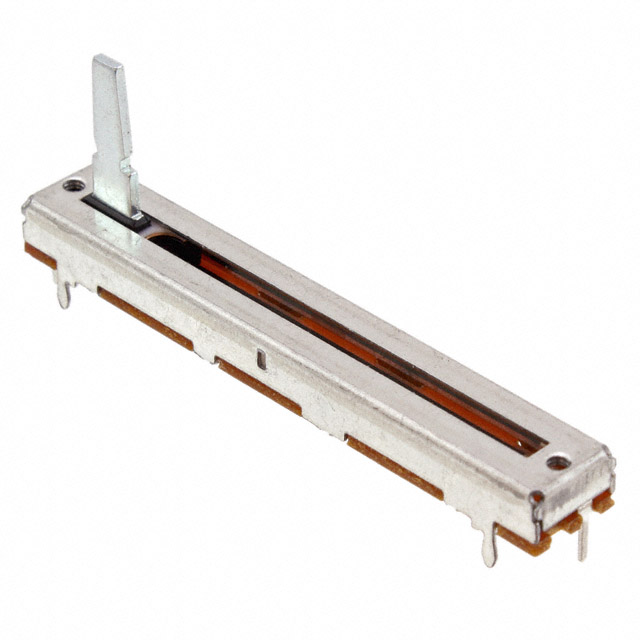

SLIDE POT 200KOHM 0.25W TOP 45MM

Search across all available documentation for this part.

Active

Bourns Inc.

SLIDE POT 200KOHM 0.25W TOP 45MM

Technical Specifications

Parameters and characteristics for this part

Part	Tolerance	Resistance	Fader Type	Mounting Type	Travel Range	Power (Watts)	Power (Watts)	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension	Adjustment Type	Power (Watts)
Bourns Inc. PTA4553-2010CIB103	20 %	10000 Ohms	Standard	Through Hole	45 mm	0.25 W	250 mW	6.5 mm	2.362 in	60 mm	0.256 in	0.354 in	9 mm	Rectangular	Top
Bourns Inc. PTA4553-2015CPB204	20 %	200000 Ohms	Standard	Through Hole	45 mm	0.25 W	250 mW	6.5 mm	2.362 in	60 mm	0.256 in	0.354 in	9 mm	Rectangular	Top
Bourns Inc. PTA4553-2215CIB103	20 %	10000 Ohms	Standard	Through Hole	45 mm	0.25 W	250 mW	6.5 mm	2.362 in	60 mm	0.256 in	0.354 in	9 mm	Rectangular	Top
Bourns Inc. PTA4553-2015CPA103	20 %	10000 Ohms	Standard	Through Hole	45 mm	0.125 W		6.5 mm	2.362 in	60 mm	0.256 in	0.354 in	9 mm	Rectangular	Top	0.125 W
Bourns Inc. PTA4553-2015CPB103	20 %	10000 Ohms	Standard	Through Hole	45 mm	0.25 W	250 mW	6.5 mm	2.362 in	60 mm	0.256 in	0.354 in	9 mm	Rectangular	Top
Bourns Inc. PTA4553-2015DPB102	20 %	1000 Ohms	Standard	Through Hole	45 mm	0.25 W	250 mW	6.5 mm	2.362 in	60 mm	0.256 in	0.354 in	9 mm	Rectangular	Top
Bourns Inc. PTA4553-2015DPA105	20 %	1 MOhms	Standard	Through Hole	45 mm	0.125 W		6.5 mm	2.362 in	60 mm	0.256 in	0.354 in	9 mm	Rectangular	Top	0.125 W

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1000	$ 1.15

General part information

200 kOhms 0.25W, 1/4W Through Hole Slide Potentiometer Top Adjustment Type

Technical documentation and resources
