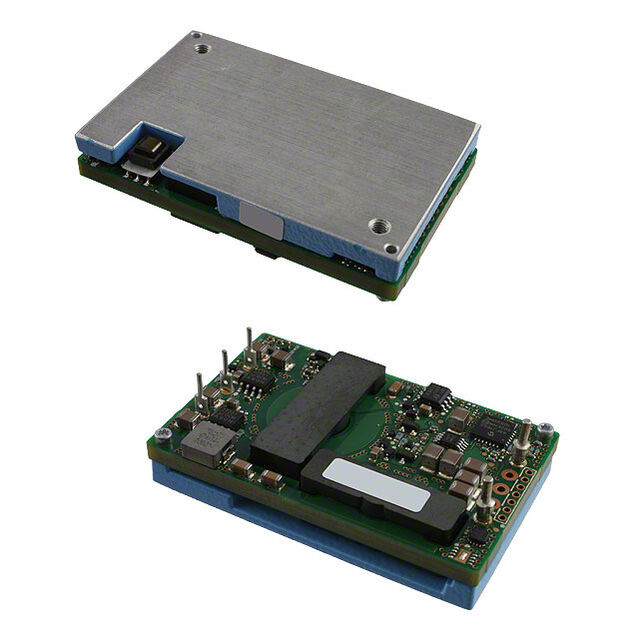

QBVW033A0B61-PHZ

Active

OmniOn Power™

DC DC CONVERTER 12V 400W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

QBVW033A0B61-PHZ

Active

OmniOn Power™

DC DC CONVERTER 12V 400W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	QBVW033A0B61-PHZ

Applications	ITE (Commercial)
Control Features	Active Low, Enable
Current - Output (Max) [Max]	33 A
Efficiency	96 %
Features	OTP, Remote On/Off, OVP, UVLO, OCP
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	8-DIP Module
Power (Watts)	400 W
Size / Dimension [x]	58.4 mm
Size / Dimension [x]	2.3 in
Size / Dimension [y]	36.8 mm
Size / Dimension [y]	1.45 in
Size / Dimension [z]	0.5 in
Size / Dimension [z]	12.6 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	75 V
Voltage - Input (Min) [Min]	36 V
Voltage - Isolation	2250 VDC
Voltage - Output 1	12 V

QBVW033 Series

Part	Voltage - Input (Min) [Min]	Number of Outputs	Voltage - Output 1	Current - Output (Max) [Max]	Type	Features	Voltage - Input (Max) [Max]	Applications	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [y]	Package / Case	Power (Watts)	Efficiency	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Voltage - Isolation
OmniOn Power™ QBVW033A0B41Z	36 V	1	12 V	33 A	Intermediate Bus Converter	OCP OTP OVP Remote On/Off UVLO	75 V	ITE (Commercial)	58.4 mm	0.46 in	2.3 in	1.45 in	11.7 mm	36.8 mm	1/4 Brick 5-DIP Module	400 W	96 %	Active Low Enable	85 °C	-40 °C	Through Hole	2250 VDC
OmniOn Power™ QBVW033A0B641-PHZ	36 V	1	12 V	33 A	Isolated Module	OCP OTP OVP Remote On/Off UVLO	75 V	ITE (Commercial)	58.4 mm	0.5 in	2.3 in	1.45 in	12.6 mm	36.8 mm	8-DIP Module	400 W	96 %	Active Low Enable	85 °C	-40 °C	Through Hole	2250 VDC
OmniOn Power™ QBVW033A0B61-PHZ	36 V	1	12 V	33 A	Isolated Module	OCP OTP OVP Remote On/Off UVLO	75 V	ITE (Commercial)	58.4 mm	0.5 in	2.3 in	1.45 in	12.6 mm	36.8 mm	8-DIP Module	400 W	96 %	Active Low Enable	85 °C	-40 °C	Through Hole	2250 VDC
OmniOn Power™ QBVW033A0B41-IHZ	36 V	1	12 V	33 A	Isolated Module	OCP OTP OVP Remote On/Off UVLO	75 V	ITE (Commercial)	58.4 mm	0.5 in	2.3 in	1.45 in	12.6 mm	36.8 mm	8-DIP Module	400 W	96 %	Active Low Enable	85 °C	-40 °C	Through Hole	2250 VDC
OmniOn Power™ QBVW033A0B541-PZ	36 V	1	12 V	33 A	Isolated Module	OCP OTP OVP Remote On/Off UVLO	75 V	ITE (Commercial)	58.4 mm	0.5 in	2.3 in	1.45 in	12.6 mm	36.8 mm	8-DIP Module	400 W	96 %	Active Low Enable	85 °C	-40 °C	Through Hole	2250 VDC
OmniOn Power™ QBVW033A0B841-PZ	36 V	1	12 V	33 A	Isolated Module	OCP OTP OVP Remote On/Off UVLO	75 V	ITE (Commercial)	58.4 mm	0.5 in	2.3 in	1.45 in	12.6 mm	36.8 mm	8-DIP Module	400 W	96 %	Active Low Enable	85 °C	-40 °C	Through Hole	2250 VDC
OmniOn Power™ QBVW033A0B41-IHZ	36 V	1	12 V	33 A	Isolated Module	OCP OTP OVP Remote On/Off UVLO	75 V	ITE (Commercial)	58.4 mm	0.5 in	2.3 in	1.45 in	12.6 mm	36.8 mm	8-DIP Module	400 W	96 %	Active Low Enable	85 °C	-40 °C	Through Hole	2250 VDC
OmniOn Power™ QBVW033A0B541Z	36 V	1	12 V	33 A	Isolated Module	OCP OTP OVP Remote On/Off UVLO	75 V	ITE (Commercial)	58.4 mm	0.5 in	2.3 in	1.45 in	12.6 mm	36.8 mm	8-DIP Module	400 W	96 %	Active Low Enable	85 °C	-40 °C	Through Hole	2250 VDC
OmniOn Power™ QBVW033A0B641-HZ	36 V	1	12 V	33 A	Intermediate Bus Converter	OCP OTP OVP Remote On/Off UVLO	75 V	ITE (Commercial)	58.4 mm	0.46 in	2.3 in	1.45 in	11.7 mm	36.8 mm	1/4 Brick 5-DIP Module	400 W	95.5 %	Active Low Enable	85 °C	-40 °C	Through Hole	2250 VDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	480	$ 78.03

Description

General part information

QBVW033 Series

Isolated Module DC DC Converter 1 Output 12V 33A 36V - 75V Input
