XM2S-3712

Active

Omron Electronics Inc-EMC Div

CONN BACKSHELL 37POS 180DEG SHLD

Search across all available documentation for this part.

Active

Omron Electronics Inc-EMC Div

CONN BACKSHELL 37POS 180DEG SHLD

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

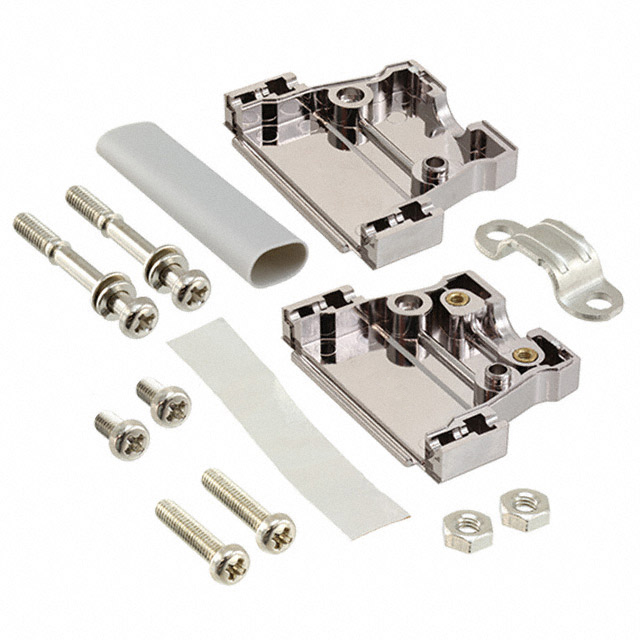

37 Position Two Piece Backshell Connector Silver 180° Shielded

Technical documentation and resources

Specification	XM2S-3712	XM2S Series

Accessory Type	Two Piece Backshell	Two Piece Backshell
Cable Exit	180 °	180 °
Cable Type	Round	Round
Color	Silver	Silver
Compatible D-Sub Size	37pos, HD62pos	37pos, HD62pos, HD15pos, 9pos
Compatible Shell Size	C	C, E
Features	Mating Screws M3	Mating Screws 4-40, Mating Screws M2.6, Mating Screws M3
Hardware	Assembly Hardware	Assembly Hardware
Material	Acrylonitrile Butadiene Styrene (ABS)	Acrylonitrile Butadiene Styrene (ABS)
Number of Positions	37	9 - 37
Plating	Nickel	Nickel
Primary Material	Plastic	Plastic
Shielding	Shielded	Shielded

Part	Primary Material	Features	Plating	Accessory Type	Cable Type	Material	Compatible D-Sub Size	Number of Positions	Hardware	Color	Cable Exit	Shielding	Compatible Shell Size
Omron Electronics Inc-EMC Div XM2S-3713	Plastic	Mating Screws 4-40	Nickel	Two Piece Backshell	Round	Acrylonitrile Butadiene Styrene (ABS)	37pos, HD62pos	37	Assembly Hardware	Silver	180 °	Shielded	C
Omron Electronics Inc-EMC Div XM2S-0911	Plastic	Mating Screws M2.6	Nickel	Two Piece Backshell	Round	Acrylonitrile Butadiene Styrene (ABS)	9pos, HD15pos	9	Assembly Hardware	Silver	180 °	Shielded	E
Omron Electronics Inc-EMC Div XM2S-3712	Plastic	Mating Screws M3	Nickel	Two Piece Backshell	Round	Acrylonitrile Butadiene Styrene (ABS)	37pos, HD62pos	37	Assembly Hardware	Silver	180 °	Shielded	C
