HD36-24-9PN

Active

TE Connectivity Raychem Cable Protection

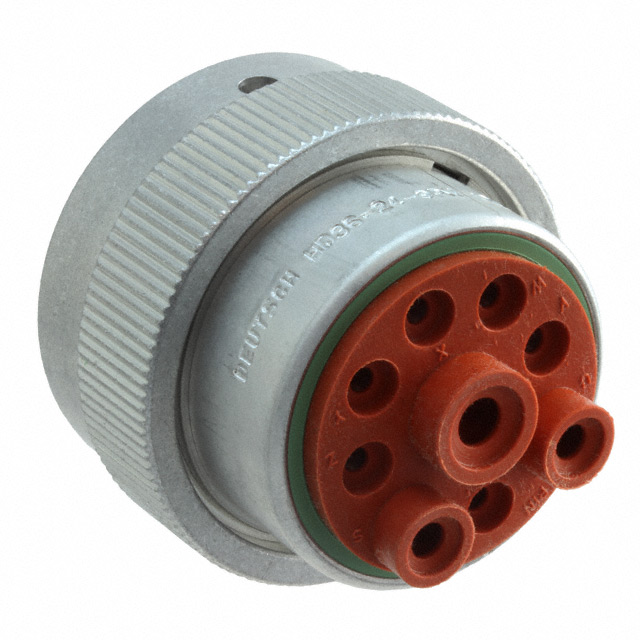

CONN PLUG HSNG MALE 9POS INLINE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HD36-24-9PN

Active

TE Connectivity Raychem Cable Protection

CONN PLUG HSNG MALE 9POS INLINE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HD36-24-9PN

Connector Type	Plug Housing
Contact Shape	Circular
Contact Size	8 (2), 4 (1), 12 (6)
Contact Type	Crimp
Fastening Type	Bayonet Lock
Features	Coupling Nut
Housing Color	Silver
Ingress Protection	IP67 - Dust Tight, Waterproof
Insert Material	Polyetherimide (PEI)
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	9
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	Keyed
Shell Material	Aluminum
Shell Size - Insert	24-9
Shielding	Unshielded
Type	For Male Pins

DEUTSCH HD30 Series

...

Part	Insert Material	Ingress Protection	Housing Color	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Contact Size	Contact Size	Shell Size - Insert	Fastening Type	Note	Contact Shape	Connector Type	Type	Contact Type	Mounting Type	Shielding	Orientation	Shell Material	Primary Material	Shell Size - Insert [Min]	Shell Size - Insert [Max]	Number of Positions	Features	Material Flammability Rating	Accessory Type	Color	Material	Shell Size - Insert	For Use With/Related Products	For Use With/Related Products	Contact Size	Mounting Feature
TE Connectivity Raychem Cable Protection HD36-24-19PE	Polyetherimide (PEI)	IP67 - Dust Tight Waterproof	Silver	19	-55 °C	125 °C	12 16	6 13	24-19	Bayonet Lock	Contacts Not Included	Circular	Plug Housing	For Male Pins	Crimp	Free Hanging (In-Line)	Unshielded	Keyed	Aluminum
TE Connectivity Raychem Cable Protection HD36-24-16SN-072		IP67 - Dust Tight Waterproof	Silver		-55 °C	125 °C	12			Bayonet Lock	Contacts Not Included	Circular	Plug Housing	For Female Sockets	Crimp	Free Hanging (In-Line)	Unshielded	Keyed	Aluminum Alloy	Metal	24	16	16	Coupling Nut	UL94 V-0
TE Connectivity Raychem Cable Protection 0413-214-1205																										Sealing Plug	Yellow	Polybutylene Terephthalate (PBT)	12	Contacts	12 Size
TE Connectivity Raychem Cable Protection HD36-24-9PN	Polyetherimide (PEI)	IP67 - Dust Tight Waterproof	Silver	9	-55 °C	125 °C			24-9	Bayonet Lock	Contacts Not Included	Circular	Plug Housing	For Male Pins	Crimp	Free Hanging (In-Line)	Unshielded	Keyed	Aluminum					Coupling Nut								12 (6) 4 (1) 8 (2)
TE Connectivity Raychem Cable Protection HD34-24-19PN	Polyetherimide (PEI)	IP67 - Dust Tight Waterproof	Silver	19	-55 °C	125 °C	12 16	6 13	24-19	Bayonet Lock	Contacts Not Included Jam Nut Not Included	Circular	Receptacle Housing	For Male Pins	Crimp		Unshielded	Keyed	Aluminum														Bulkhead - Front Side Nut
TE Connectivity Raychem Cable Protection HD34-24-9PN	Polyetherimide (PEI)	IP67 - Dust Tight Waterproof	Silver	9	-55 °C	125 °C			24-9	Bayonet Lock	Contacts Not Included Jam Nut Not Included	Circular	Receptacle Housing	For Male Pins	Crimp		Unshielded	Keyed	Aluminum													12 (6) 4 (1) 8 (2)	Bulkhead - Front Side Nut
TE Connectivity Raychem Cable Protection HD36-18-14PN	Polyetherimide (PEI)	IP67 - Dust Tight Waterproof	Silver	14	-55 °C	125 °C	16		18-14	Bayonet Lock	Contacts Not Included	Circular	Plug Housing	For Male Pins	Crimp	Free Hanging (In-Line)	Unshielded	Keyed	Aluminum					Coupling Nut
TE Connectivity Raychem Cable Protection HD34-24-18PE	Thermoplastic	IP67 - Dust Tight Waterproof	Silver	18	-55 °C	125 °C				Bayonet Lock	Contacts Not Included Jam Nut Not Included	Circular	Receptacle Housing	For Male Pins	Crimp		Unshielded	Keyed	Aluminum		24	18										12 (3) 16 (14) 8 (1)	Bulkhead - Front Side Nut
TE Connectivity Raychem Cable Protection HD36-24-31PT-059		IP67 - Dust Tight Waterproof	Silver	31	-55 °C	125 °C	16			Bayonet Lock	Contacts Not Included	Circular	Plug Housing	For Male Pins	Crimp	Free Hanging (In-Line)	Unshielded	Keyed	Aluminum Alloy	Metal	24	31		Cable Clamp Coupling Nut	UL94 V-0
TE Connectivity Raychem Cable Protection HD36-24-21SE-072	Polyetherimide (PEI)	IP67 - Dust Tight Waterproof	Silver	21	-55 °C	125 °C	12 16		24-21	Bayonet Lock	Contacts Not Included	Circular	Plug Housing	For Female Sockets	Crimp	Free Hanging (In-Line)	Unshielded	Keyed	Aluminum					Backshell Coupling Nut

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	200	$ 19.53

Description

General part information

DEUTSCH HD30 Series

9 Position Circular Connector Plug Housing Free Hanging (In-Line) Coupling Nut
