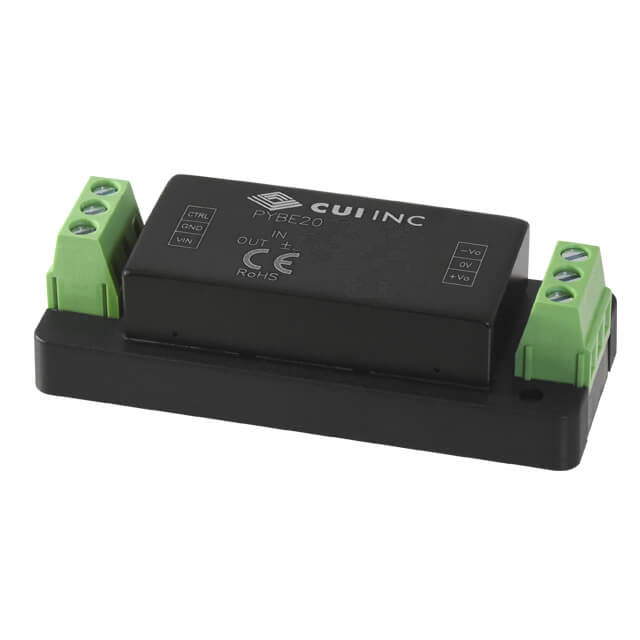

PYBE20-Q24-D12-T

CUI Inc.

DC/DC CONVERTER +/-12V 20W

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PYBE20-Q24-D12-T

Applications	ITE (Commercial)
Approval Agency	EN
Current - Output (Max)	834 mA
Efficiency	88 %
Mounting Type	Chassis Mount
Number of Outputs	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	20 W
Size / Dimension [x]	2.99 in
Size / Dimension [x]	76 mm
Size / Dimension [y]	31.5 mm
Size / Dimension [y]	1.24 in
Size / Dimension [z]	21.2 mm
Size / Dimension [z]	0.83 in
Standard Number	55024, 55032
Type	Enclosed
Voltage - Input (Max) [Max]	36 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	12 V
Voltage - Output 2	-12 V

PYBE20 Series

Part	Voltage - Input (Min) [Min]	Number of Outputs	Type	Operating Temperature [Max]	Operating Temperature [Min]	Features	Mounting Type	Voltage - Output 1	Power (Watts)	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Applications	Current - Output (Max) [Max]	Standard Number	Voltage - Input (Max) [Max]	Approval Agency	Voltage - Isolation	Efficiency	Package / Case	DC Voltage - Input (Max) [Max]	Input Type	DC Voltage - Input (Min) [Min]	Current - Output (Max)	Voltage - Output 2
CUI Inc. PYBE20-Q24-S24	9 V	1	Isolated Module	85 °C	-40 °C	OCP OVP Remote On/Off SCP	Through Hole	24 V	20 W	2 in	50.8 mm	0.46 in	25.4 mm	25.4 mm	11.8 mm	ITE (Commercial)	834 mA	55024 55032 Class A 60950-1	36 V	CB Scheme EN IEC UL	1.5 kV	90 %	6-DIP Module
CUI Inc. PYBE20-Q24-S15-T	9 V	1	Enclosed	85 °C	-40 °C		Chassis Mount	15 V	20 W	2.99 in	76 mm	0.83 in	31.5 mm	1.24 in	21.2 mm	ITE (Commercial)	1.333 A	55024 55032	36 V	EN	1.5 kV	90 %
CUI Inc. PYBE20-Q48-S9-DIN		1		85 °C	-40 °C	Adjustable Output Remote On/Off		9 V	20 W	2.99 in	76 mm	0.87 in	31.5 mm	1.24 in	22.2 mm	ITE (Commercial)	2.222 A			CE cURus	1.5 kV	89 %		75 V	DC	18 V
CUI Inc. PYBE20-Q24-S3	9 V	1	Isolated Module	85 °C	-40 °C	OCP OVP Remote On/Off SCP	Through Hole	3.3 V	17 W	2 in	50.8 mm	0.46 in	25.4 mm	25.4 mm	11.8 mm	ITE (Commercial)	5 A	55024 55032 Class A 60950-1	36 V	CB Scheme EN IEC UL	1.5 kV	86 %	6-DIP Module
CUI Inc. PYBE20-Q24-S24-DIN		1		85 °C	-40 °C	Adjustable Output Remote On/Off		24 V	20 W	2.99 in	76 mm	0.87 in	31.5 mm	1.24 in	22.2 mm	ITE (Commercial)	834 mA			CE cURus	1.5 kV	90 %		36 V	DC	9 V
CUI Inc. PYBE20-Q48-D12-T	18 V	2	Enclosed	85 °C	-40 °C		Chassis Mount	12 V	20 W	2.99 in	76 mm	0.83 in	31.5 mm	1.24 in	21.2 mm	ITE (Commercial)		55024 55032	75 V	EN	1.5 kV	88 %					834 mA	-12 V
CUI Inc. PYBE20-Q48-S3-DIN		1		85 °C	-40 °C	Adjustable Output Remote On/Off		3.3 V	17 W	2.99 in	76 mm	0.87 in	31.5 mm	1.24 in	22.2 mm	ITE (Commercial)	5 A			CE cURus	1.5 kV	86 %		75 V	DC	18 V
CUI Inc. PYBE20-Q24-D12-T	9 V	2	Enclosed	85 °C	-40 °C		Chassis Mount	12 V	20 W	2.99 in	76 mm	0.83 in	31.5 mm	1.24 in	21.2 mm	ITE (Commercial)		55024 55032	36 V	EN	1.5 kV	88 %					834 mA	-12 V
CUI Inc. PYBE20-Q48-S24-T	18 V	1	Enclosed	85 °C	-40 °C		Chassis Mount	24 V	20 W	2.99 in	76 mm	0.83 in	31.5 mm	1.24 in	21.2 mm	ITE (Commercial)	834 mA	55024 55032	75 V	EN	1.5 kV	88 %
CUI Inc. PYBE20-Q24-D12	9 V	2	Isolated Module	85 °C	-40 °C	OCP OVP Remote On/Off SCP	Through Hole	12 V	20 W	2 in	50.8 mm	0.46 in	25.4 mm	25.4 mm	11.8 mm	ITE (Commercial)		55024 55032 Class A 60950-1	36 V	CB Scheme EN IEC UL	1.5 kV	88 %	6-DIP Module				834 mA	-12 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 39.18
		5	$ 38.88

Description

General part information

PYBE20 Series

Enclosed DC DC Converter 2 Output 12V -12V 834mA, 834mA 36V Input
