392-044-544-207

Active

EDAC Inc.

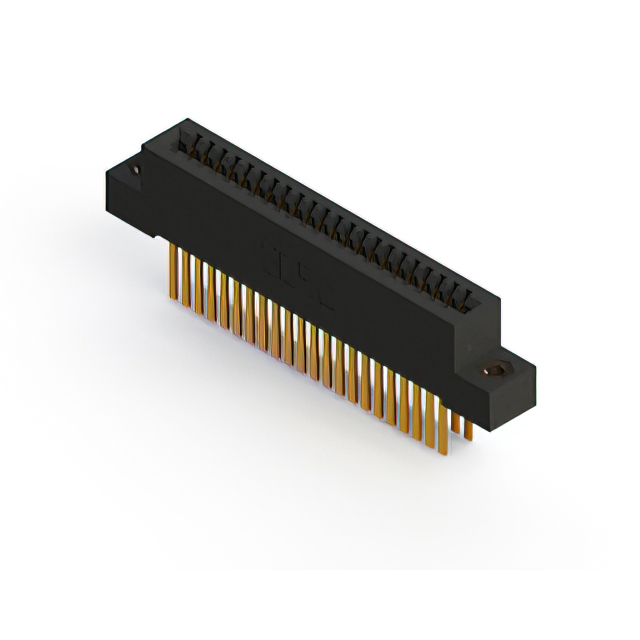

CARD EDGE CONNECTOR, 44 CONTACT(S), 2 ROW(S), FEMALE, 0.1 INCH PITCH, WIRE WRAP TERMINAL, M3, BLACK INSULATOR,

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

392-044-544-207

Active

EDAC Inc.

CARD EDGE CONNECTOR, 44 CONTACT(S), 2 ROW(S), FEMALE, 0.1 INCH PITCH, WIRE WRAP TERMINAL, M3, BLACK INSULATOR,

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	392-044-544-207

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Opening, Flush Mount, M3, Threaded Insert
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	44
Number of Positions/Bay/Row [custom]	22
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Read Out	Dual
Termination	Wire Wrap
Termination Rows	2

392-044 Series

...

Part	Mounting Type	Termination	Pitch [x]	Pitch [x]	Contact Finish	Number of Positions/Bay/Row [custom]	Termination Rows	Number of Rows	Number of Positions	Contact Material	Gender	Color	Contact Finish Thickness	Contact Finish Thickness	Material - Insulation	Read Out	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Card Type	Flange Feature	Contact Type	Flange Feature [diameter]	Flange Feature [diameter]	Features
EDAC Inc. 392-044-544-207	Through Hole	Wire Wrap	2.54 mm	0.1 in	Gold	22	2	2	44	Copper Alloy	Female	Black	10 Áin	0.25 Ám	Polyester Thermoplastic	Dual	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Flush Mount M3 Threaded Insert Top Opening	Cantilever
EDAC Inc. 392-044-560-203	Board Edge Straddle Mount	Solder	2.54 mm	0.1 in	Gold	22	2	2	44	Copper Alloy	Female	Black	10 Áin	0.25 Ám	Polyester Thermoplastic	Dual	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Floating Bobbin Flush Mount	Cantilever	0.116 in	2.95 mm	Card Extender
EDAC Inc. 392-044-520-104	Through Hole	Solder	2.54 mm	0.1 in	Gold	44	1	1	44	Copper Alloy	Female	Black	10 Áin	0.25 Ám	Polyester Thermoplastic	Single	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Flush Mount Top Opening Unthreaded	Cantilever	0.156 in	3.96 mm
EDAC Inc. 392-044-542-103	Through Hole	Wire Wrap	2.54 mm	0.1 in	Gold	44	1	1	44	Copper Alloy	Female	Black	10 Áin	0.25 Ám	Polyester Thermoplastic	Single	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Floating Bobbin Flush Mount	Cantilever	0.116 in	2.95 mm
EDAC Inc. 392-044-524-201	Through Hole	Solder	2.54 mm	0.1 in	Gold	22	2	2	44	Copper Alloy	Female	Black	10 Áin	0.25 Ám	Polyester Thermoplastic	Dual	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge		Cantilever
EDAC Inc. 392-044-544-212	Through Hole	Wire Wrap	2.54 mm	0.1 in	Gold	22	2	2	44	Copper Alloy	Female	Black	10 Áin	0.25 Ám	Polyester Thermoplastic	Dual	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Flush Mount Side Opening Unthreaded	Cantilever	0.128 "	3.25 mm
EDAC Inc. 392-044-524-112	Through Hole	Solder	2.54 mm	0.1 in	Gold	44	1	1	44	Copper Alloy	Female	Black	10 Áin	0.25 Ám	Polyester Thermoplastic	Single	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	Flush Mount Side Opening Unthreaded	Cantilever	0.128 "	3.25 mm
EDAC Inc. 392-044-521-212	Through Hole	Solder	2.54 mm	0.1 in	Gold	22	2	2	44	Copper Alloy	Female	Black	10 Áin	0.25 Ám	Polyester Thermoplastic	Dual	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Flush Mount Side Opening Unthreaded	Cantilever	0.128 "	3.25 mm
EDAC Inc. 392-044-559-212	Through Hole Right Angle	Solder Wire Wrap	2.54 mm	0.1 in	Gold	22	2	2	44	Copper Alloy	Female	Black	10 Áin	0.25 Ám	Polyester Thermoplastic	Dual	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Dual Edge	Flush Mount Side Opening Unthreaded	Cantilever	0.128 "	3.25 mm
EDAC Inc. 392-044-523-108	Through Hole	Solder	2.54 mm	0.1 in	Gold	44	1	1	44	Copper Alloy	Female	Black	10 Áin	0.25 Ám	Polyester Thermoplastic	Single	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Non Specified - Single Edge	4-40 Flush Mount Threaded Insert Top Opening	Cantilever

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 13.26
Newark	Each	1	$ 12.72
		100	$ 9.70
		250	$ 8.34
		500	$ 7.17
		1000	$ 5.22

Description

General part information

392-044 Series

44 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black
