1376009-2

Active

TE Connectivity AMP Connectors

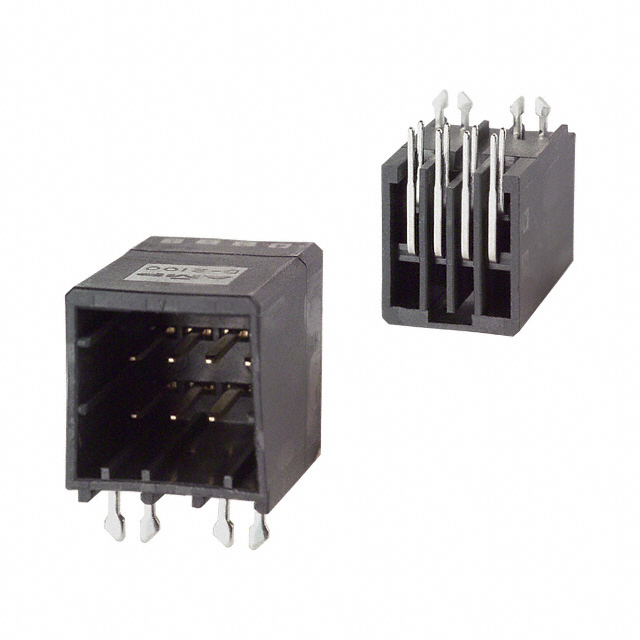

CONN HEADER R/A 8POS 2.5MM

Search across all available documentation for this part.

Active

TE Connectivity AMP Connectors

CONN HEADER R/A 8POS 2.5MM

Technical Specifications

Parameters and characteristics for this part

Specification	1376009-2

Applications	General Purpose, Industrial
Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	15 µin
Contact Finish Thickness - Mating	0.38 µm
Contact Length - Post [x]	0.134 in
Contact Length - Post [x]	3.4 mm
Contact Material	Copper Alloy
Contact Shape	Rectangular
Contact Type	Tab
Current Rating (Amps)	5 A
Fastening Type	Detent Lock
Insulation Color	Black
Insulation Height	14.7 mm
Insulation Height	0.579 in
Insulation Material	Thermoplastic, Glass Filled, Polyester
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	250 VAC

CONN HEADER R/A 8POS 2.5MM

Part	Applications	Termination	Operating Temperature [Max]	Operating Temperature [Min]	Fastening Type	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Shrouding	Contact Finish - Post	Insulation Height	Insulation Height	Insulation Material	Contact Shape	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Contact Type	Number of Positions	Insulation Color	Connector Type	Material Flammability Rating	Voltage Rating	Number of Positions Loaded	Contact Material	Contact Finish - Mating	Style	Contact Length - Post [x]	Contact Length - Post [x]
TE Connectivity AMP Connectors 1376009-2	General Purpose, Industrial	Solder	105 ░C	-55 °C	Detent Lock	Through Hole, Right Angle	15 µin	0.38 µm	2	Shrouded - 4 Wall	Tin	14.7 mm	0.579 in	Glass Filled, Polyester, Thermoplastic	Rectangular	2.5 mm	0.098 in	5 A	Tab	8	Black	Header	UL94 V-0	250 VAC	All	Copper Alloy	Gold	Board to Board, Cable	0.134 in	3.4 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Through Hole, Right Angle 8 position 0.098" (2.50mm)
