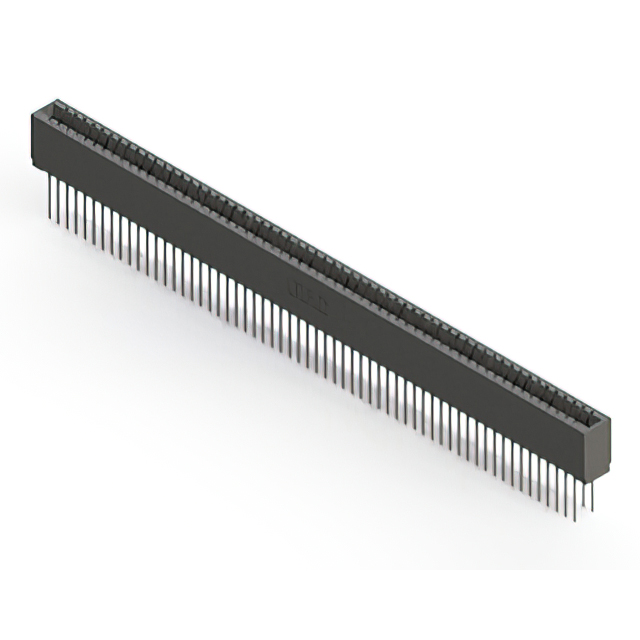

746-120-553-601

Active

EDAC Inc.

CONN EDGE DUAL FML 120POS 0.125

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

746-120-553-601

Active

EDAC Inc.

CONN EDGE DUAL FML 120POS 0.125

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	746-120-553-601

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	120
Number of Positions/Bay/Row [custom]	60
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.125 in
Pitch [x]	3.18 mm
Read Out	Dual
Termination	Wire Wrap, Press-Fit
Termination Rows	2

746-120 Series

Part	Contact Finish Thickness	Contact Finish Thickness	Read Out	Termination Rows	Gender	Operating Temperature [Min]	Operating Temperature [Max]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Mounting Type	Pitch [x]	Pitch [x]	Color	Number of Positions/Bay/Row [custom]	Termination	Material - Insulation	Contact Material	Contact Finish	Contact Type	Number of Positions	Number of Rows	Card Type
EDAC Inc. 746-120-525-201	0.76 Ám	30 Áin	Dual	2	Female	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	0.125 in	3.18 mm	Black	60	Press-Fit	Polyester Thermoplastic	Copper Alloy	Gold	Cantilever	120	2	Non Specified - Dual Edge
EDAC Inc. 746-120-553-201	0.76 Ám	30 Áin	Dual	2	Female	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	0.125 in	3.18 mm	Black	60	Press-Fit Wire Wrap	Polyester Thermoplastic	Copper Alloy	Gold	Cantilever	120	2	Non Specified - Dual Edge
EDAC Inc. 746-120-520-601	0.76 Ám	30 Áin	Dual	2	Female	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	0.125 in	3.18 mm	Black	60	Press-Fit	Polyester Thermoplastic	Copper Alloy	Gold	Cantilever	120	2	Non Specified - Dual Edge
EDAC Inc. 746-120-540-601	0.76 Ám	30 Áin	Dual	2	Female	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	0.125 in	3.18 mm	Black	60	Press-Fit Wire Wrap	Polyester Thermoplastic	Copper Alloy	Gold	Cantilever	120	2	Non Specified - Dual Edge
EDAC Inc. 746-120-540-606	0.76 Ám	30 Áin	Dual	2	Female	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	0.125 in	3.18 mm	Black	60	Press-Fit Wire Wrap	Polyester Thermoplastic	Copper Alloy	Gold	Cantilever	120	2	Non Specified - Dual Edge
EDAC Inc. 746-120-520-206	0.76 Ám	30 Áin	Dual	2	Female	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	0.125 in	3.18 mm	Black	60	Press-Fit	Polyester Thermoplastic	Copper Alloy	Gold	Cantilever	120	2	Non Specified - Dual Edge
EDAC Inc. 746-120-545-201	0.76 Ám	30 Áin	Dual	2	Female	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	0.125 in	3.18 mm	Black	60	Press-Fit Wire Wrap	Polyester Thermoplastic	Copper Alloy	Gold	Cantilever	120	2	Non Specified - Dual Edge
EDAC Inc. 746-120-553-601	0.76 Ám	30 Áin	Dual	2	Female	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	0.125 in	3.18 mm	Black	60	Press-Fit Wire Wrap	Polyester Thermoplastic	Copper Alloy	Gold	Cantilever	120	2	Non Specified - Dual Edge
EDAC Inc. 746-120-520-606	0.76 Ám	30 Áin	Dual	2	Female	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	0.125 in	3.18 mm	Black	60	Press-Fit	Polyester Thermoplastic	Copper Alloy	Gold	Cantilever	120	2	Non Specified - Dual Edge
EDAC Inc. 746-120-520-201	0.76 Ám	30 Áin	Dual	2	Female	-40 °C	105 ░C	1.37 mm	0.054 "	1.78 mm	0.07 in	Through Hole	0.125 in	3.18 mm	Black	60	Press-Fit	Polyester Thermoplastic	Copper Alloy	Gold	Cantilever	120	2	Non Specified - Dual Edge

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 18.81

Description

General part information

746-120 Series

120 Position Female Connector Non Specified - Dual Edge Gold 0.125" (3.18mm) Black
