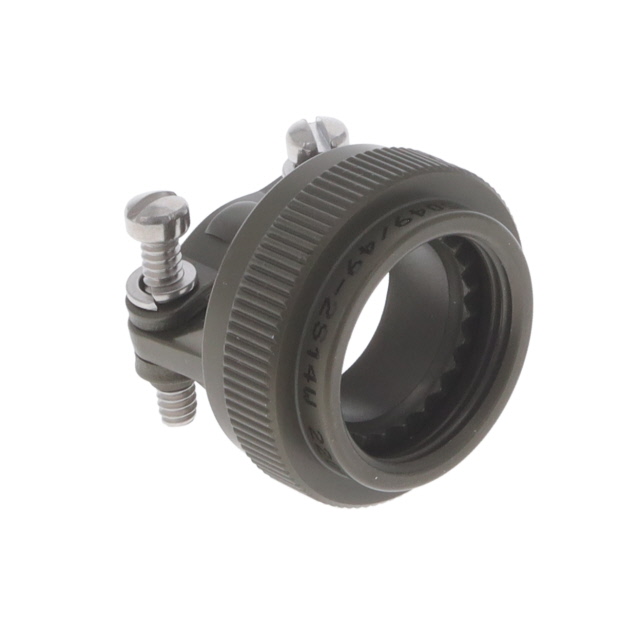

M85049/49-2S14W

Active

AMPHENOL PCD

CONN CABLE CLAMP SZ14 15 OLIVE

Search across all available documentation for this part.

Active

AMPHENOL PCD

CONN CABLE CLAMP SZ14 15 OLIVE

Technical Specifications

Parameters and characteristics for this part

Specification	M85049/49-2S14W

Cable Exit	180 °
Cable Opening [custom]	0.457 in, 0.26 in
Cable Opening [custom]	11.61 mm, 6.6 mm
Color	Olive Drab
Diameter - Outside [diameter]	1.281 in
Diameter - Outside [diameter]	32.54 mm
Features	Clamp Screws, Self-Locking
For Use With/Related Products	MIL-DTL-38999 Series I, II
Material	Aluminum Alloy
Plating	Cadmium
Shell Size - Insert	15, 14
Shielding	Unshielded
Type	Cable Clamp

Part	Features	Color	Cable Exit	Diameter - Outside [diameter]	Diameter - Outside [diameter]	Type	Shielding	Plating	For Use With/Related Products	Material	Shell Size - Insert	Cable Opening [custom]	Cable Opening [custom]	Thread Size	Cable Opening [Max] [custom]	Cable Opening [Max] [custom]	Cable Opening [Min] [custom]	Cable Opening [Min] [custom]
AMPHENOL PCD M85049/49-2S14W	Clamp Screws Self-Locking	Olive Drab	180 °	1.281 in	32.54 mm	Cable Clamp	Unshielded	Cadmium	MIL-DTL-38999 Series I II	Aluminum Alloy	14 15	0.26 in 0.457 in	6.6 mm 11.61 mm
AMPHENOL PCD M85049/49-2-14W	Clamp Screws	Olive	180 °			Cable Clamp	Unshielded	Cadmium Nickel	MIL-DTL-27599 MIL-DTL-38999 Series I MIL-DTL-38999 Series II	Aluminum Alloy	14			13/16-20 UNEF
AMPHENOL PCD M85049/49-2S16W	Clamp Screws Self-Locking	Olive	180 °			Cable Clamp	Unshielded	Cadmium Nickel	MIL-DTL-27599 MIL-DTL-38999 Series I MIL-DTL-38999 Series II	Aluminum Alloy	16			15/16-20 UNEF
AMPHENOL PCD M85049/49-2-12N	Clamp Screws	Silver	180 °			Cable Clamp	Unshielded	Electroless Nickel	MIL-DTL-27599 MIL-DTL-38999 Series I MIL-DTL-38999 Series II	Aluminum Alloy	12			11/16-24 UNEF
AMPHENOL PCD M85049/49-2-8W	Clamp Screws	Olive	180 °	0.617 in	15.67 mm	Cable Clamp	Unshielded	Cadmium	MIL-DTL-38999 Series I II	Aluminum Alloy	8				0.2 in	5.08 mm	0.13 in	3.3 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Olive Drab Connector Cable Clamp 14, 15
