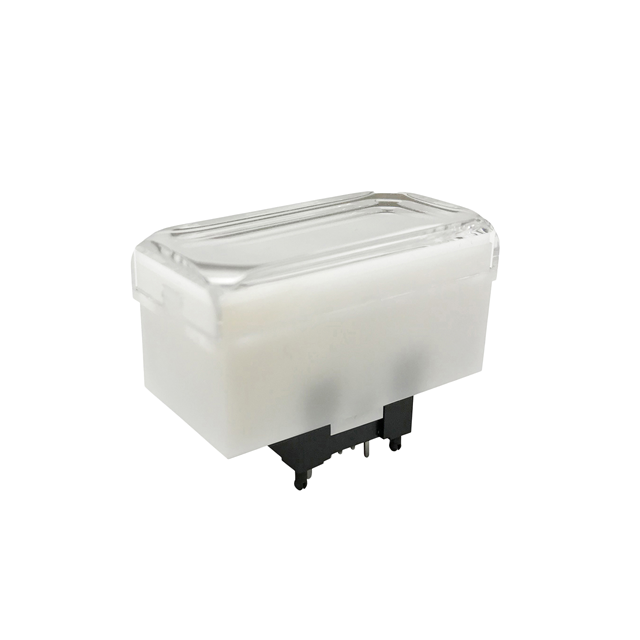

KP0115ACBKG03RGBJB

Obsolete

NKK Switches

SWITCH PUSH SPST-NO 0.1A 12V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

KP0115ACBKG03RGBJB

Obsolete

NKK Switches

SWITCH PUSH SPST-NO 0.1A 12V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	KP0115ACBKG03RGBJB

Actuator Marking	No Marking
Actuator Type	Rectangular, Button
Circuit	SPST-NO
Color - Actuator/Cap	Clear
Current Rating (Amps)	100 mA
Electrical Life	1000000 Cycles
Illumination Type, Color	Red, LED, Blue, Green
Illumination Voltage (Nominal)	2 VDC, 2.9 VDC
Mechanical Life	1000000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Switch Function	Off-Mom
Termination Style	PC Pin
Type	Illuminated, Standard
Voltage Rating - DC	12 V

KP0115A Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Illumination Voltage (Nominal)	Switch Function	Current Rating (Amps)	Voltage Rating - DC	Circuit	Type	Color - Actuator/Cap	Features	Termination Style	Actuator Marking	Illumination Type, Color	Mounting Type	Electrical Life	Actuator Type
NKK Switches KP0115ACBKG03RGBP-2SJB	50 °C	-25 °C	5000000 Cycles	2 VDC 2.9 VDC	Off-Mom	100 mA	12 V	SPST-NO	Illuminated Standard	Clear	Tactile Feedback	PC Pin	No Marking	Blue Green LED Red	Through Hole	5000000 Cycles	Button Square
NKK Switches KP0115ANBKG03RGB-3TJB	50 °C	-25 °C	5000000 Cycles	2 VDC 2.9 VDC	Off-Mom	100 mA	12 V	SPST-NO	Illuminated Standard	Clear		PC Pin	No Marking	Blue Green LED Red	Through Hole	5000000 Cycles	Button Square
NKK Switches KP0115ACBKG03RGB-3TJB	50 °C	-25 °C	5000000 Cycles	2 VDC 2.9 VDC	Off-Mom	100 mA	12 V	SPST-NO	Illuminated Standard	Clear	Tactile Feedback	PC Pin	No Marking	Blue Green LED Red	Through Hole	5000000 Cycles	Button Square
NKK Switches KP0115ACBKG03RGBP-2FJB	50 °C	-25 °C	5000000 Cycles	2 VDC 2.9 VDC	Off-Mom	100 mA	12 V	SPST-NO	Illuminated Standard	Clear	Tactile Feedback	PC Pin	No Marking	Blue Green LED Red	Through Hole	5000000 Cycles	Button Square
NKK Switches KP0115ACBKG03RGBP-2TJB	50 °C	-25 °C	5000000 Cycles	2 VDC 2.9 VDC	Off-Mom	100 mA	12 V	SPST-NO	Illuminated Standard	Clear	Tactile Feedback	PC Pin	No Marking	Blue Green LED Red	Through Hole	5000000 Cycles	Button Square
NKK Switches KP0115ANBKG03RGBP-2FJB	50 °C	-25 °C	5000000 Cycles	2 VDC 2.9 VDC	Off-Mom	100 mA	12 V	SPST-NO	Illuminated Standard	Clear		PC Pin	No Marking	Blue Green LED Red	Through Hole	5000000 Cycles	Button Square
NKK Switches KP0115ACBKG03CJB	50 °C	-25 °C	1000000 Cycles	2 VDC	Off-Mom	100 mA	12 V	SPST-NO	Illuminated Standard	Clear	Tactile Feedback	PC Pin	No Marking	LED Red	Through Hole	5000000 Cycles	Rectangular Button
NKK Switches KP0115ACBKG03RGBJB	50 °C	-25 °C	1000000 Cycles	2 VDC 2.9 VDC	Off-Mom	100 mA	12 V	SPST-NO	Illuminated Standard	Clear		PC Pin	No Marking	Blue Green LED Red	Through Hole	1000000 Cycles	Rectangular Button
NKK Switches KP0115ACAKG03RGB-1FJB	50 °C	-25 °C	5000000 Cycles	2 VDC 2.9 VDC	Off-Mom	100 mA	12 V	SPST-NO	Illuminated Standard	Clear	Tactile Feedback	PC Pin	No Marking	Blue Green LED Red	Through Hole	5000000 Cycles	Button Square
NKK Switches KP0115ACAKG03RGBP-1SJB	50 °C	-25 °C	5000000 Cycles	2 VDC 2.9 VDC	Off-Mom	100 mA	12 V	SPST-NO	Illuminated Standard	Clear	Tactile Feedback	PC Pin	No Marking	Blue Green LED Red	Through Hole	5000000 Cycles	Button Square

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 36.50
		10	$ 31.49

Description

General part information

KP0115A Series

Pushbutton Switch SPST-NO Standard, Illuminated Through Hole
