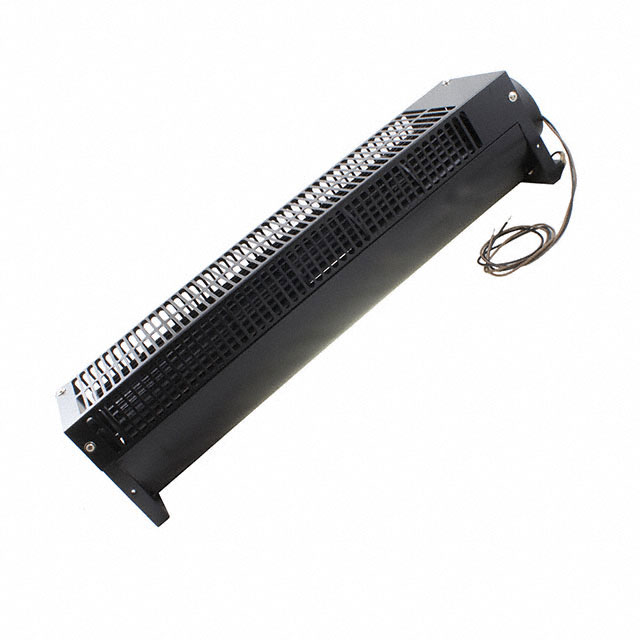

UF9446CBP23H-L

Active

Mechatronics Fan Group

FAN BLWR CF 230VAC 570X150X130MM

Search across all available documentation for this part.

Active

Mechatronics Fan Group

FAN BLWR CF 230VAC 570X150X130MM

Technical Specifications

Parameters and characteristics for this part

Specification	UF9446CBP23H-L

Air Flow	9.91 mł/min
Air Flow	354 CFM
Approval Agency	CE, TUV
Bearing Type	Ball
Current Rating (Amps)	0.23 A
Fan Type	Blower, Cross Flow
Features	Thermal Overload Protector (TOP), Permanent Split Capacitor Motor
Material - Blade	Plastic
Material - Frame	Steel
Noise	53 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-40 °C
Operating Temperature [Min]	-40 °C
Power (Watts)	50 W
RPM	1550 RPM
Size / Dimension [x]	570 mm
Size / Dimension [z]	130 mm
Static Pressure	49.8 Pa
Static Pressure	0.2 in H2O
Termination	2 Wire Leads
Voltage - Rated	230 VAC
Weight	7.9 lbs
Weight	3.6 kg
Width [y]	125 mm

FAN BLWR CF 230VAC 570X150X130MM

Part	Termination	Material - Frame	Width [y]	Power (Watts)	Weight	Weight	Size / Dimension [z]	Size / Dimension [x]	Material - Blade	Air Flow	Air Flow	Current Rating (Amps)	Fan Type	Static Pressure	Static Pressure	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Min]	RPM	Approval Agency	Bearing Type	Features	Noise	Voltage - Rated
Mechatronics Fan Group UF9446CBP23H-L	2 Wire Leads	Steel	125 mm	50 W	7.9 lbs	3.6 kg	130 mm	570 mm	Plastic	9.91 mł/min	354 CFM	0.23 A	Blower, Cross Flow	49.8 Pa	0.2 in H2O	70 °C	70 °C	-40 °C	-40 °C	1550 RPM	CE, TUV	Ball	Permanent Split Capacitor Motor, Thermal Overload Protector (TOP)	53 dB	230 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Fan Blower, Cross Flow 230VAC Rectangular - 570mm L x 130mm H Ball 354.0 CFM (9.91mł/min) 2 Wire Leads
