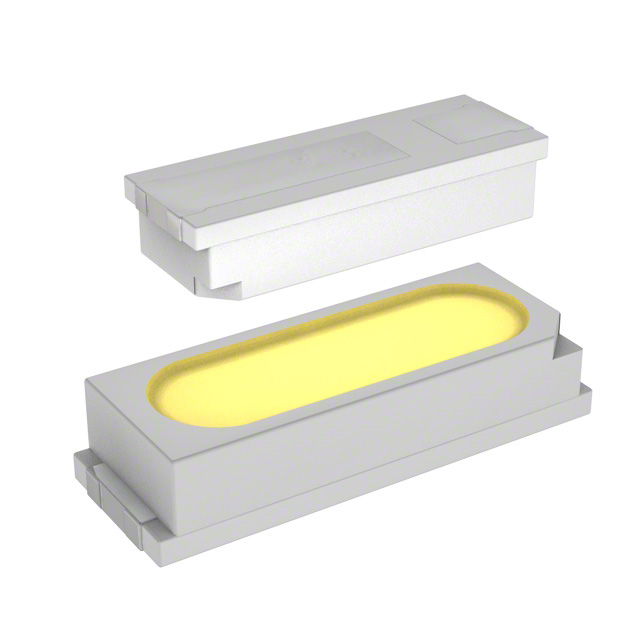

LED LUXEON WARM WHITE 2200K 2SMD

Search across all available documentation for this part.

Obsolete

Lumileds

LED LUXEON WARM WHITE 2200K 2SMD

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MXZ8-PW22-0000	MXZ8-PW Series

CCT (K)	2200 K	2200 - 5000 K
Color	White, Warm	White, Warm, Cool
CRI (Color Rendering Index)	80	80
Current - Max [Max]	90 mA	90 mA
Current - Test	30 mA	30 mA
Flux @ 25°C, Current - Test	10 lm	10 - 12 lm
Height - Seated (Max) [Max] [z]	0.8 mm	0.8 mm
Height - Seated (Max) [Max] [z]	0.031 "	0.031 "
Lumens/Watt @ Current - Test	115 lm/W	115 - 138 lm/W
Mounting Type	Surface Mount	Surface Mount
Package / Case	1606 (4014 Metric)	1606 (4014 Metric)
Size / Dimension [x]	0.157 "	0.157 "
Size / Dimension [x]	4 mm	4 mm
Size / Dimension [y]	1.4 mm	1.4 mm
Size / Dimension [y]	0.055 in	0.055 in
Supplier Device Package	4014	4014
Thermal Resistance of Package [diameter]	45 °C/W	45 °C/W
Voltage - Forward (Vf) (Typ)	2.9 V	2.9 V

LED LUXEON WARM WHITE 2200K 2SMD

Part	Voltage - Forward (Vf) (Typ)	CCT (K)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Thermal Resistance of Package [diameter]	CRI (Color Rendering Index)	Lumens/Watt @ Current - Test	Package / Case	Flux @ 25°C, Current - Test	Color	Supplier Device Package	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current - Test	Current - Max [Max]
Lumileds MXZ8-PW22-0000	2.9 V	2200 K	0.8 mm	0.031 "	45 °C/W	80	115 lm/W	1606 (4014 Metric)	10 lm	Warm, White	4014	Surface Mount	0.157 "	1.4 mm	4 mm	0.055 in	30 mA	90 mA
Lumileds MXZ8-PW50-0000	2.9 V	5000 K	0.8 mm	0.031 "	45 °C/W	80	138 lm/W	1606 (4014 Metric)	12 lm	Cool, White	4014	Surface Mount	0.157 "	1.4 mm	4 mm	0.055 in	30 mA	90 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting LUXEON 4014 White, Warm 2200K 2.9V 30mA 1606 (4014 Metric)
