102699-4

Active

TE Connectivity AMP Connectors

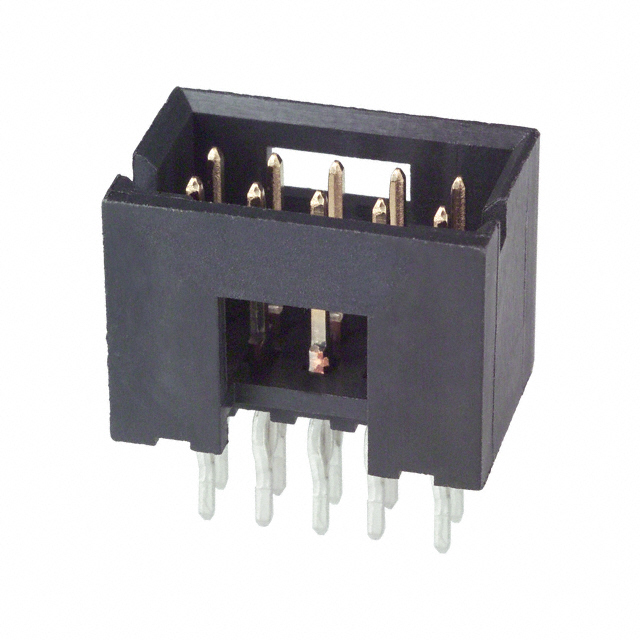

CONN HEADER VERT 10POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

102699-4

Active

TE Connectivity AMP Connectors

CONN HEADER VERT 10POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	102699-4	102699 Series

Connector Type	Header	Header
Contact Finish - Mating	Gold	Gold
Contact Finish - Post	Tin-Lead	Tin-Lead, Tin
Contact Finish Thickness - Mating	30 Áin	30 Áin
Contact Finish Thickness - Mating	0.76 Ám	0.76 Ám
Contact Finish Thickness - Post	2.54 µm	2.54 µm
Contact Finish Thickness - Post	100 µin	100 µin
Contact Length - Mating	8.13 mm	8.13 mm
Contact Length - Mating	0.32 in	0.32 in
Contact Length - Post	0.25 in	0.25 in
Contact Length - Post	6.35 mm	6.35 mm
Contact Material	Copper Alloy	Copper Alloy
Contact Shape	Square	Square
Contact Type	Male Pin	Male Pin
Current Rating (Amps)	3 A	3 A
Fastening Type	Detent Lock	Detent Lock
Insulation Color	Black	Black
Insulation Height	0.44 in	0.44 in
Insulation Height	11.18 mm	11.18 mm
Insulation Material	Thermoplastic	Thermoplastic
Material Flammability Rating	UL94 V-0	UL94 V-0
Mounting Type	Through Hole	Through Hole
Number of Positions	10	6 - 50
Number of Positions	-	16
Number of Positions Loaded	All	All
Number of Rows	2	2
Operating Temperature [Max]	105 ░C	105 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Overall Contact Length	16.76 mm	16.76 mm
Overall Contact Length	0.66 in	0.66 in
Pitch - Mating	0.1 in	0.1 in
Pitch - Mating	2.54 mm	2.54 mm
Row Spacing - Mating [x]	2.54 mm	2.54 mm
Row Spacing - Mating [x]	0.1 in	0.1 in
Shrouding	Shrouded - 4 Wall	Shrouded - 4 Wall
Style	Board to Board, Cable	Board to Board, Cable
Termination	Solder, Press-Fit	Solder, Press-Fit

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1600	$ 4.54

102699 Series

CONN HEADER VERT 10POS 2.54MM

Part	Shrouding	Fastening Type	Contact Length - Post	Contact Length - Post	Contact Type	Style	Contact Finish - Post	Number of Positions Loaded	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Mating	Pitch - Mating	Termination	Number of Positions	Insulation Color	Overall Contact Length	Overall Contact Length	Current Rating (Amps)	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Insulation Material	Connector Type	Contact Length - Mating	Contact Length - Mating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Contact Material	Contact Shape	Material Flammability Rating	Contact Finish - Mating	Mounting Type	Number of Positions
TE Connectivity AMP Connectors 102699-4	Shrouded - 4 Wall	Detent Lock	0.25 in	6.35 mm	Male Pin	Board to Board, Cable	Tin-Lead	All	2.54 µm	100 µin	0.1 in	2.54 mm	Press-Fit, Solder	10	Black	16.76 mm	0.66 in	3 A	2.54 mm	0.1 in	0.44 in	11.18 mm	30 Áin	0.76 Ám	Thermoplastic	Header	8.13 mm	0.32 in	105 ░C	-55 °C	2	Copper Alloy	Square	UL94 V-0	Gold	Through Hole
TE Connectivity AMP Connectors 5-102699-2	Shrouded - 4 Wall	Detent Lock	0.25 in	6.35 mm	Male Pin	Board to Board, Cable	Tin	All	2.54 µm	100 µin	0.1 in	2.54 mm	Press-Fit, Solder	6	Black	16.76 mm	0.66 in	3 A	2.54 mm	0.1 in	0.44 in	11.18 mm	30 Áin	0.76 Ám	Thermoplastic	Header	8.13 mm	0.32 in	105 ░C	-55 °C	2	Copper Alloy	Square	UL94 V-0	Gold	Through Hole
TE Connectivity AMP Connectors 5-102699-4	Shrouded - 4 Wall	Detent Lock	0.25 in	6.35 mm	Male Pin	Board to Board, Cable	Tin	All	2.54 µm	100 µin	0.1 in	2.54 mm	Press-Fit, Solder	10	Black	16.76 mm	0.66 in	3 A	2.54 mm	0.1 in	0.44 in	11.18 mm	30 Áin	0.76 Ám	Thermoplastic	Header	8.13 mm	0.32 in	105 ░C	-55 °C	2	Copper Alloy	Square	UL94 V-0	Gold	Through Hole
TE Connectivity AMP Connectors 5-102699-7	Shrouded - 4 Wall	Detent Lock	0.25 in	6.35 mm	Male Pin	Board to Board, Cable	Tin	All	2.54 µm	100 µin	0.1 in	2.54 mm	Press-Fit, Solder		Black	16.76 mm	0.66 in	3 A	2.54 mm	0.1 in	0.44 in	11.18 mm	30 Áin	0.76 Ám	Thermoplastic	Header	8.13 mm	0.32 in	105 ░C	-55 °C	2	Copper Alloy	Square	UL94 V-0	Gold	Through Hole	16
TE Connectivity AMP Connectors 102699-9	Shrouded - 4 Wall	Detent Lock	0.25 in	6.35 mm	Male Pin	Board to Board, Cable	Tin-Lead	All	2.54 µm	100 µin	0.1 in	2.54 mm	Press-Fit, Solder	20	Black	16.76 mm	0.66 in	3 A	2.54 mm	0.1 in	0.44 in	11.18 mm	30 Áin	0.76 Ám	Thermoplastic	Header	8.13 mm	0.32 in	105 ░C	-55 °C	2	Copper Alloy	Square	UL94 V-0	Gold	Through Hole
TE Connectivity AMP Connectors 7-102699-3	Shrouded - 4 Wall	Detent Lock	0.25 in	6.35 mm	Male Pin	Board to Board, Cable	Tin	All	2.54 µm	100 µin	0.1 in	2.54 mm	Press-Fit, Solder	50	Black	16.76 mm	0.66 in	3 A	2.54 mm	0.1 in	0.44 in	11.18 mm	30 Áin	0.76 Ám	Thermoplastic	Header	8.13 mm	0.32 in	105 ░C	-55 °C	2	Copper Alloy	Square	UL94 V-0	Gold	Through Hole
TE Connectivity AMP Connectors 6-102699-2	Shrouded - 4 Wall	Detent Lock	0.25 in	6.35 mm	Male Pin	Board to Board, Cable	Tin	All	2.54 µm	100 µin	0.1 in	2.54 mm	Press-Fit, Solder	26	Black	16.76 mm	0.66 in	3 A	2.54 mm	0.1 in	0.44 in	11.18 mm	30 Áin	0.76 Ám	Thermoplastic	Header	8.13 mm	0.32 in	105 ░C	-55 °C	2	Copper Alloy	Square	UL94 V-0	Gold	Through Hole
TE Connectivity AMP Connectors 102699-3	Shrouded - 4 Wall	Detent Lock	0.25 in	6.35 mm	Male Pin	Board to Board, Cable	Tin-Lead	All	2.54 µm	100 µin	0.1 in	2.54 mm	Press-Fit, Solder	8	Black	16.76 mm	0.66 in	3 A	2.54 mm	0.1 in	0.44 in	11.18 mm	30 Áin	0.76 Ám	Thermoplastic	Header	8.13 mm	0.32 in	105 ░C	-55 °C	2	Copper Alloy	Square	UL94 V-0	Gold	Through Hole
TE Connectivity AMP Connectors 102699-7	Shrouded - 4 Wall	Detent Lock	0.25 in	6.35 mm	Male Pin	Board to Board, Cable	Tin-Lead	All	2.54 µm	100 µin	0.1 in	2.54 mm	Press-Fit, Solder		Black	16.76 mm	0.66 in	3 A	2.54 mm	0.1 in	0.44 in	11.18 mm	30 Áin	0.76 Ám	Thermoplastic	Header	8.13 mm	0.32 in	105 ░C	-55 °C	2	Copper Alloy	Square	UL94 V-0	Gold	Through Hole	16
TE Connectivity AMP Connectors 1-102699-9	Shrouded - 4 Wall	Detent Lock	0.25 in	6.35 mm	Male Pin	Board to Board, Cable	Tin-Lead	All	2.54 µm	100 µin	0.1 in	2.54 mm	Press-Fit, Solder	40	Black	16.76 mm	0.66 in	3 A	2.54 mm	0.1 in	0.44 in	11.18 mm	30 Áin	0.76 Ám	Thermoplastic	Header	8.13 mm	0.32 in	105 ░C	-55 °C	2	Copper Alloy	Square	UL94 V-0	Gold	Through Hole
TE Connectivity AMP Connectors 6-102699-9	Shrouded - 4 Wall	Detent Lock	0.25 in	6.35 mm	Male Pin	Board to Board, Cable	Tin	All	2.54 µm	100 µin	0.1 in	2.54 mm	Press-Fit, Solder	40	Black	16.76 mm	0.66 in	3 A	2.54 mm	0.1 in	0.44 in	11.18 mm	30 Áin	0.76 Ám	Thermoplastic	Header	8.13 mm	0.32 in	105 ░C	-55 °C	2	Copper Alloy	Square	UL94 V-0	Gold	Through Hole
TE Connectivity AMP Connectors 1-102699-2	Shrouded - 4 Wall	Detent Lock	0.25 in	6.35 mm	Male Pin	Board to Board, Cable	Tin-Lead	All	2.54 µm	100 µin	0.1 in	2.54 mm	Press-Fit, Solder	26	Black	16.76 mm	0.66 in	3 A	2.54 mm	0.1 in	0.44 in	11.18 mm	30 Áin	0.76 Ám	Thermoplastic	Header	8.13 mm	0.32 in	105 ░C	-55 °C	2	Copper Alloy	Square	UL94 V-0	Gold	Through Hole

Description

General part information

102699 Series

Connector Header Through Hole 10 position 0.100" (2.54mm)
