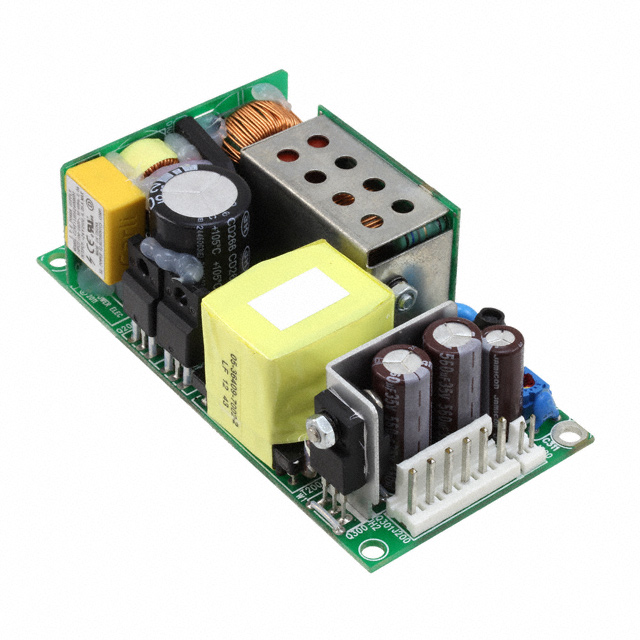

CINT1150A2406K01

Obsolete

SL POWER / Advanced Energy

AC/DC CONVERTER 24V 100W

Search across all available documentation for this part.

Obsolete

SL POWER / Advanced Energy

AC/DC CONVERTER 24V 100W

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Open Frame AC DC Converters 1 Output 24V 90 ~ 264 VAC Input

Technical documentation and resources

Parameters and characteristics commom to parts in this series

AC/DC POWER SUPPLY SINGLE-OUT 48V 2.08A 150W 11-PIN

Part	Voltage - Output 1	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Power (Watts)	Power (Watts)	Applications	Efficiency	Mounting Type	Current - Output 1	Type	Voltage - Input [Min]	Voltage - Input [Max]	Approval Agency
SL POWER / Advanced Energy CINT1150A4806K01	48 V	4000 V	101.6 mm	1.3 "	2 in	4 in	50.8 mm	33 mm	-10 °C	70 °C	1	150 W	100 W	ITE (Commercial)	88 %	Chassis Mount	2.08 A	Open Frame	90 VAC	264 VAC	CE
SL POWER / Advanced Energy CINT1150A5606K01	56 V	4000 V	101.6 mm	1.3 "	2 in	4 in	50.8 mm	33 mm	-10 °C	70 °C	1	150 W	100 W	ITE (Commercial)	88 %	Chassis Mount	1.79 A	Open Frame	90 VAC	264 VAC	CE
SL POWER / Advanced Energy CINT1150A2406K01	24 V	4000 V	101.6 mm	1.3 "	2 in	4 in	50.8 mm	33 mm	-10 °C	70 °C	1	150 W	100 W	ITE (Commercial)	88 %	Chassis Mount	4.17 A	Open Frame	90 VAC	264 VAC	CE
SL POWER / Advanced Energy CINT1150A1206K01	12 V	4000 V	101.6 mm	1.3 "	2 in	4 in	50.8 mm	33 mm	-10 °C	70 °C	1	150 W	100 W	ITE (Commercial)	88 %	Chassis Mount	8.33 A	Open Frame	90 VAC	264 VAC	CE
