96AB2-152-F

Active

Grayhill Inc.

SWITCH KEYPAD 12KEY 0.005A 12V

Search across all available documentation for this part.

Active

Grayhill Inc.

SWITCH KEYPAD 12KEY 0.005A 12V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

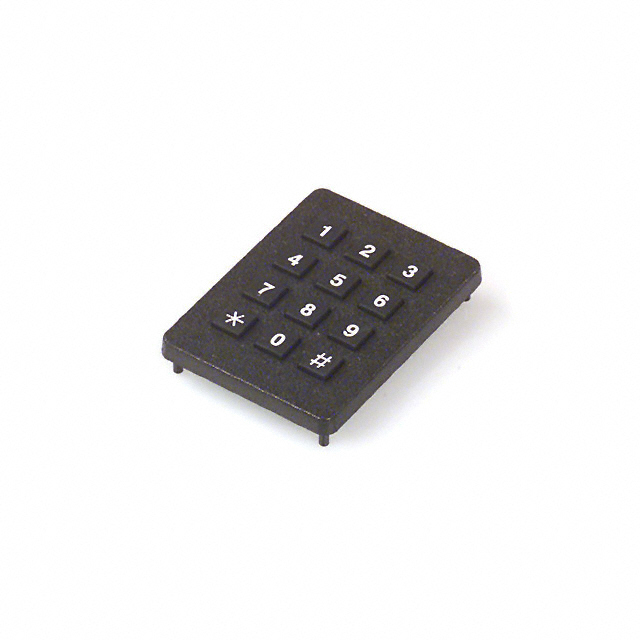

Keypad Switch 12 Polymer Keys Conductive Rubber Contacts Matrix Output Non-Illuminated 0.005A @ 12VDC

Technical documentation and resources

Parameters and characteristics commom to parts in this series

Specification	96AB2-152-F	96AB2 Series

Contact Rating @ Voltage	0.005 A, 12 VDC	0.005 - 12 A
Illumination	Non-Illuminated	Non-Illuminated, Illuminated
Ingress Protection	IP40	IP40
Key Color	Black	White, Black
Key Type	Polymer	Polymer
Legend	Telephone Format	Telephone Format
Legend Color	White	Black, White
Legend Type	Fixed	Fixed
Matrix (Columns x Rows) [custom]	4	4
Matrix (Columns x Rows) [custom]	3	3
Mounting Type	Panel Mount, Front	Panel Mount, Rear, Panel Mount, Front
Number of Keys	12	12
Operating Temperature [Max]	80 C	80 C
Operating Temperature [Min]	-30 ░C	-30 ░C
Operational Life	1000000 Cycles	1000000 Cycles
Output Type	1.81 mOhm	1.81 mOhm
Panel Cutout Dimensions	-	68.58 mm
Panel Cutout Dimensions	-	50.8 mm
Switch Type	Conductive Rubber	Conductive Rubber
Termination Style	Pin Header	Pin Header

SWITCH KEYPAD 12KEY 0.005A 12V

Part	Ingress Protection	Key Color	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Key Type	Legend Color	Matrix (Columns x Rows) [custom]	Matrix (Columns x Rows) [custom]	Illumination	Operating Temperature [Min]	Operating Temperature [Max]	Legend Type	Legend	Switch Type	Termination Style	Output Type	Contact Rating @ Voltage	Operational Life	Number of Keys	Mounting Type
Grayhill Inc. 96AB2-102-R	IP40	White	68.58 mm	50.8 mm	Polymer	Black	4	3	Non-Illuminated	-30 ░C	80 C	Fixed	Telephone Format	Conductive Rubber	Pin Header	1.81 mOhm	0.005 A, 12 VDC	1000000 Cycles	12	Panel Mount, Rear
Grayhill Inc. 96AB2-102-F-EL	IP40	White			Polymer	Black	4	3	Illuminated	-30 ░C	80 C	Fixed	Telephone Format	Conductive Rubber	Pin Header	1.81 mOhm	0.005 A, 12 VDC	1000000 Cycles	12	Panel Mount, Front
Grayhill Inc. 96AB2-152-F	IP40	Black			Polymer	White	4	3	Non-Illuminated	-30 ░C	80 C	Fixed	Telephone Format	Conductive Rubber	Pin Header	1.81 mOhm	0.005 A, 12 VDC	1000000 Cycles	12	Panel Mount, Front
