PH1RB-17-UA

Active

Adam Tech

CONN HEADER R/A 17POS 2.54MM

PH1RB-17-UA

Active

Adam Tech

CONN HEADER R/A 17POS 2.54MM

Description Specifications Series Pricing CAD Documents

Description

General part information

PH1RB Series

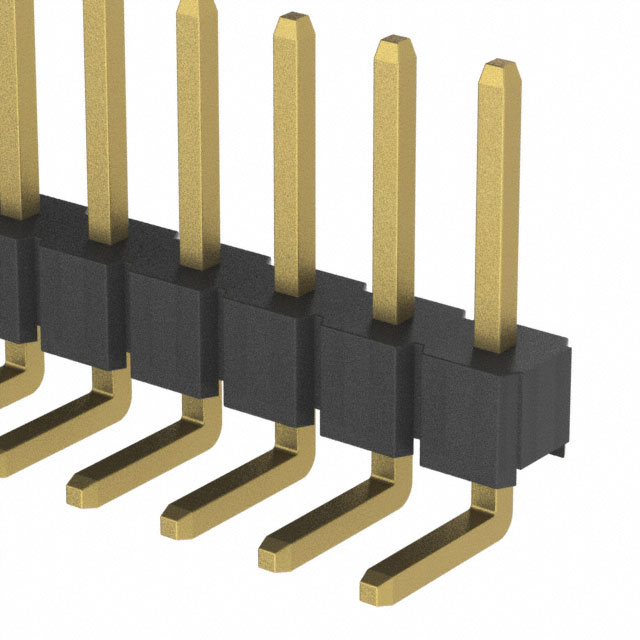

Connector Header Through Hole, Right Angle 17 position 0.100" (2.54mm)

Technical Specifications

Parameters and characteristics for this part

Specification	PH1RB-17-UA

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Finish Thickness - Post (string_set)	Flash
Contact Length - Mating	0.235 in
Contact Length - Post	0.12 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.098 in
Insulation Material	Polybutylene Terephthalate (PBT), Glass Filled
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	17
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch - Mating	0.1 in
Shrouding	Unshrouded
Style	Board
Termination	Solder
Voltage Rating	250 V

PH1RB Series

Part	Current Rating	Style	Insulation Height	Contact Type	Shrouding	Pitch - Mating	Contact Material	Contact Length - Mating	Contact Shape	Termination	Voltage Rating	Fastening Type	Contact Finish Thickness - Mating	Number of Rows	Insulation Material	Material Flammability Rating	Number of Positions	Contact Length - Post	Contact Finish - Mating	Contact Finish - Post	Mounting Type	Connector Type	Operating Temperature (Min)	Operating Temperature (Max)	Number of Positions Loaded	Insulation Color	Contact Finish Thickness - Post	Contact Finish Thickness - Post (string_set)
Adam Tech PH1RB-15-UA	3 A	Board	0.098 in	Male Pin	Unshrouded	0.1 in	Brass	0.235 in	Square	Solder	250 V	Push-Pull	Flash	1	Glass Filled Polybutylene Terephthalate (PBT)	UL94 V-0	15	0.12 in	Gold	Gold	Right Angle Through Hole	Header	-40 °C	105 °C	All	Black	Flash	Flash
Adam Tech PH1RB-04-UA	3 A	Board	0.098 in	Male Pin	Unshrouded	0.1 in	Brass	0.235 in	Square	Solder	250 V	Push-Pull	Flash	1	Glass Filled Polybutylene Terephthalate (PBT)	UL94 V-0	4	0.12 in	Gold	Gold	Right Angle Through Hole	Header	-40 °C	105 °C	All	Black	Flash	Flash
Adam Tech PH1RB-08-UA	3 A	Board	0.098 in	Male Pin	Unshrouded	0.1 in	Brass	0.235 in	Square	Solder	250 V	Push-Pull	Flash	1	Glass Filled Polybutylene Terephthalate (PBT)	UL94 V-0	8	0.12 in	Gold	Gold	Right Angle Through Hole	Header	-40 °C	105 °C	All	Black	Flash	Flash
Adam Tech PH1RB-01-UA	3 A	Board	0.098 in	Male Pin	Unshrouded	0.1 in	Brass	0.235 in	Square	Solder	250 V	Push-Pull	Flash	1	Glass Filled Polybutylene Terephthalate (PBT)	UL94 V-0	1	0.12 in	Gold	Gold	Right Angle Through Hole	Header	-40 °C	105 °C	All	Black	Flash	Flash
Adam Tech PH1RB-02-UA	3 A	Board	0.098 in	Male Pin	Unshrouded	0.1 in	Brass	0.235 in	Square	Solder	250 V	Push-Pull	Flash	1	Glass Filled Polybutylene Terephthalate (PBT)	UL94 V-0	2	0.12 in	Gold	Gold	Right Angle Through Hole	Header	-40 °C	105 °C	All	Black	Flash	Flash
Adam Tech PH1RB-10-UA	3 A	Board	0.098 in	Male Pin	Unshrouded	0.1 in	Brass	0.235 in	Square	Solder	250 V	Push-Pull	Flash	1	Glass Filled Polybutylene Terephthalate (PBT)	UL94 V-0	10	0.12 in	Gold	Gold	Right Angle Through Hole	Header	-40 °C	105 °C	All	Black	Flash	Flash
Adam Tech PH1RB-17-UA	3 A	Board	0.098 in	Male Pin	Unshrouded	0.1 in	Brass	0.235 in	Square	Solder	250 V	Push-Pull	Flash	1	Glass Filled Polybutylene Terephthalate (PBT)	UL94 V-0	17	0.12 in	Gold	Gold	Right Angle Through Hole	Header	-40 °C	105 °C	All	Black	Flash	Flash
Adam Tech PH1RB-13-UA	3 A	Board	0.098 in	Male Pin	Unshrouded	0.1 in	Brass	0.235 in	Square	Solder	250 V	Push-Pull	Flash	1	Glass Filled Polybutylene Terephthalate (PBT)	UL94 V-0	13	0.12 in	Gold	Gold	Right Angle Through Hole	Header	-40 °C	105 °C	All	Black	Flash	Flash
Adam Tech PH1RB-12-UA	3 A	Board	0.098 in	Male Pin	Unshrouded	0.1 in	Brass	0.235 in	Square	Solder	250 V	Push-Pull	Flash	1	Glass Filled Polybutylene Terephthalate (PBT)	UL94 V-0	12	0.12 in	Gold	Gold	Right Angle Through Hole	Header	-40 °C	105 °C	All	Black	Flash	Flash
Adam Tech PH1RB-09-UA	3 A	Board	0.098 in	Male Pin	Unshrouded	0.1 in	Brass	0.235 in	Square	Solder	250 V	Push-Pull	Flash	1	Glass Filled Polybutylene Terephthalate (PBT)	UL94 V-0	9	0.12 in	Gold	Gold	Right Angle Through Hole	Header	-40 °C	105 °C	All	Black	Flash	Flash
