L717DFA15P

Active

Amphenol ICC (Commercial Products)

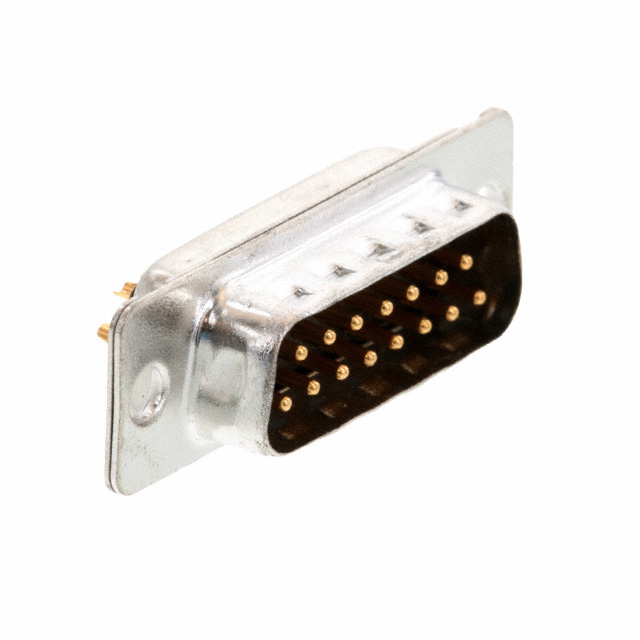

CONN D-SUB PLUG 15POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L717DFA15P

Active

Amphenol ICC (Commercial Products)

CONN D-SUB PLUG 15POS PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L717DFA15P

Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	0.51 µm
Contact Finish Thickness	20 µin
Contact Material	Brass
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Thermoplastic, Glass Filled
Features	Grounding Indents
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	2
Voltage Rating	300 VDC

L717DFA15 Series

Part	Number of Positions	Mounting Type	Backset Spacing	Backset Spacing	Dielectric Material	Voltage Rating	Features	Contact Material	Connector Style	Flange Feature	Current Rating (Amps)	Contact Finish Thickness	Contact Finish Thickness	Color	Connector Type	Termination	Contact Type	Contact Finish	Material Flammability Rating	Operating Temperature [Max]	Operating Temperature [Min]	Number of Rows	Shell Size, Connector Layout
Amphenol ICC (Commercial Products) L717DFA15P1APNA235	15	Panel Mount Right Angle Through Hole	0.406 in	10.3 mm	Thermoplastic Glass Filled	300 VDC	Grounding Indents Mounting Brackets	Brass	D-Sub	Housing/Shell (Unthreaded)	7.5 A	0.51 µm	20 µin	Black	Male Pins Plug	Solder	Signal	Gold	UL94 V-0	155 °C	-55 °C	2	2
Amphenol ICC (Commercial Products) L717DFA15P1BON	15	Panel Mount Right Angle Through Hole	0.406 in	10.3 mm	Thermoplastic Glass Filled	300 VDC	Grounding Indents	Brass	D-Sub	Housing/Shell (Unthreaded)	7.5 A	0.51 µm	20 µin	Black	Male Pins Plug	Solder	Signal	Gold	UL94 V-0	125 °C	-55 °C	2	2
Amphenol ICC (Commercial Products) L717DFA15P1BPN	15	Panel Mount Right Angle Through Hole	0.406 in	10.3 mm	Thermoplastic Glass Filled	300 VDC	Grounding Indents Mounting Brackets	Brass	D-Sub	Housing/Shell (Unthreaded)	7.5 A	0.51 µm	20 µin	Black	Male Pins Plug	Solder	Signal	Gold	UL94 V-0	155 °C	-55 °C	2	2
Amphenol ICC (Commercial Products) L717DFA15P1AUN	15	Panel Mount Right Angle Through Hole	0.406 in	10.3 mm	Thermoplastic Glass Filled	300 VDC	Grounding Indents Mounting Brackets	Brass	D-Sub	Housing/Shell (Unthreaded)	7.5 A	0.51 µm	20 µin	Black	Male Pins Plug	Solder	Signal	Gold	UL94 V-0	125 °C	-55 °C	2	2
Amphenol ICC (Commercial Products) L717DFA15P1ATN	15	Panel Mount Right Angle Through Hole	0.406 in	10.3 mm	Thermoplastic Glass Filled	300 VDC	Grounding Indents Mounting Brackets	Brass	D-Sub	Housing/Shell (Unthreaded)	7.5 A	0.51 µm	20 µin	Black	Male Pins Plug	Solder	Signal	Gold	UL94 V-0	125 °C	-55 °C	2	2
Amphenol ICC (Commercial Products) L717DFA15P1BTNRM6	15	Panel Mount Right Angle Through Hole	0.406 in	10.3 mm	Thermoplastic Glass Filled	300 VDC	Board Lock Grounding Indents Mounting Brackets	Brass	D-Sub	Housing/Shell (Unthreaded)	7.5 A	0.51 µm	20 µin	Black	Male Pins Plug	Solder	Signal	Gold	UL94 V-0	155 °C	-55 °C	2	2
Amphenol ICC (Commercial Products) L717DFA15P1ATNRM6	15	Panel Mount Right Angle Through Hole	0.406 in	10.3 mm	Thermoplastic Glass Filled	300 VDC	Board Lock Grounding Indents Mounting Brackets	Brass	D-Sub	Housing/Shell (Unthreaded)	7.5 A	0.51 µm	20 µin	Black	Male Pins Plug	Solder	Signal	Gold	UL94 V-0	125 °C	-55 °C	2	2
Amphenol ICC (Commercial Products) L717DFA15POL2RM8	15	Panel Mount Through Hole			Thermoplastic Glass Filled	300 VDC	Board Lock Grounding Indents	Brass	D-Sub	Housing/Shell (Unthreaded)	7.5 A	0.51 µm	20 µin	Black	Male Pins Plug	Solder	Signal	Gold	UL94 V-0	125 °C	-55 °C	2	2
Amphenol ICC (Commercial Products) L717DFA15P	15				Thermoplastic Glass Filled	300 VDC	Grounding Indents	Brass	D-Sub	Housing/Shell (Unthreaded)	7.5 A	0.51 µm	20 µin	Black	Male Pins Plug		Signal	Gold	UL94 V-0	125 °C	-55 °C	2	2
Amphenol ICC (Commercial Products) L717DFA15P1AON	15	Panel Mount Right Angle Through Hole	0.406 in	10.3 mm	Thermoplastic Glass Filled	300 VDC	Grounding Indents	Brass	D-Sub	Housing/Shell (Unthreaded)	7.5 A	0.51 µm	20 µin	Black	Male Pins Plug	Solder	Signal	Gold	UL94 V-0	125 °C	-55 °C	2	2

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 6.95
		10	$ 6.25
		25	$ 5.89
		50	$ 5.74
		100	$ 5.59
		300	$ 5.32

Description

General part information

L717DFA15 Series

15 Position D-Sub Plug, Male Pins Connector
