Q-1V03T000R072i

Active

Amphenol Custom Cable

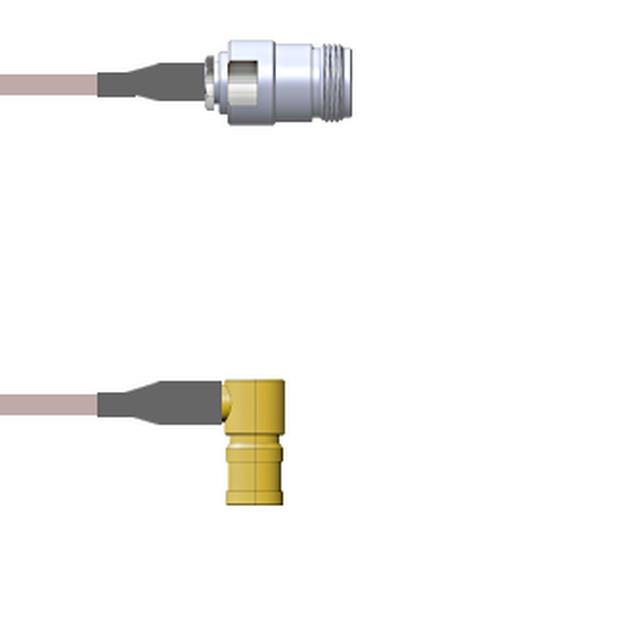

CBL ASSY SMB-NTYPE PLUG-JACK 6'

Deep-Dive with AI

Search across all available documentation for this part.

Q-1V03T000R072i

Active

Amphenol Custom Cable

CBL ASSY SMB-NTYPE PLUG-JACK 6'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1V03T000R072i

1st Connector	Right Angle, SMB Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	RG-316 DB
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	6 ft
Length	72 in
Length	1.8 m
Overall Impedance	50 Ohms
Style	SMB to N-Type

Q-1V03T0 Series

Part	2nd Connector	Length	Length	Cable Type	2nd Contact Gender	1st Connector Mounting Type	Style	2nd Connector Mounting Type	Frequency - Max [Max]	1st Connector	1st Contact Gender	Features	Overall Impedance	Color	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-1V03T000R036i	N-Type Jack	91.44 cm	36 in	RG-316 DB	Female	Free Hanging (In-Line)	SMB to N-Type	Free Hanging (In-Line)	4 GHz	Right Angle SMB Plug	Female	Shielded	50 Ohms	Copper
Amphenol Custom Cable Q-1V03T000R.75M	N-Type Jack	750 mm	29.53 "	RG-316 DB	Female	Free Hanging (In-Line)	SMB to N-Type	Free Hanging (In-Line)	4 GHz	Right Angle SMB Plug	Female	Shielded	50 Ohms	Copper
Amphenol Custom Cable Q-1V03T000R108i	N-Type Jack	2.7 m	108 in	RG-316 DB	Female	Free Hanging (In-Line)	SMB to N-Type	Free Hanging (In-Line)	4 GHz	Right Angle SMB Plug	Female	Shielded	50 Ohms	Copper	9 ft
Amphenol Custom Cable Q-1V03T000R072i	N-Type Jack	1.8 m	72 in	RG-316 DB	Female	Free Hanging (In-Line)	SMB to N-Type	Free Hanging (In-Line)	4 GHz	Right Angle SMB Plug	Female	Shielded	50 Ohms	Copper	6 ft
Amphenol Custom Cable Q-1V03T000R.25M	N-Type Jack			RG-316 DB	Female	Free Hanging (In-Line)	SMB to N-Type	Free Hanging (In-Line)	4 GHz	Right Angle SMB Plug	Female	Shielded	50 Ohms	Copper		9.843 "	250 mm
Amphenol Custom Cable Q-1V03T000R1.5M	N-Type Jack	1.5 m	59.1 in	RG-316 DB	Female	Free Hanging (In-Line)	SMB to N-Type	Free Hanging (In-Line)	4 GHz	Right Angle SMB Plug	Female	Shielded	50 Ohms	Copper	4.9 ft
Amphenol Custom Cable Q-1V03T000R003M	N-Type Jack	3 m	118.1 in	RG-316 DB	Female	Free Hanging (In-Line)	SMB to N-Type	Free Hanging (In-Line)	4 GHz	Right Angle SMB Plug	Female	Shielded	50 Ohms	Copper	9.8 '
Amphenol Custom Cable Q-1V03T000R2.5M	N-Type Jack	2.5 m	98.4 in	RG-316 DB	Female	Free Hanging (In-Line)	SMB to N-Type	Free Hanging (In-Line)	4 GHz	Right Angle SMB Plug	Female	Shielded	50 Ohms	Copper	8.2 '
Amphenol Custom Cable Q-1V03T000R024i	N-Type Jack	609.6 mm	24 "	RG-316 DB	Female	Free Hanging (In-Line)	SMB to N-Type	Free Hanging (In-Line)	4 GHz	Right Angle SMB Plug	Female	Shielded	50 Ohms	Copper
Amphenol Custom Cable Q-1V03T000R0.5M	N-Type Jack	50 cm	19.69 "	RG-316 DB	Female	Free Hanging (In-Line)	SMB to N-Type	Free Hanging (In-Line)	4 GHz	Right Angle SMB Plug	Female	Shielded	50 Ohms	Copper

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 343.08
		25	$ 338.19
		50	$ 333.31
		100	$ 328.43
		250	$ 323.54

Description

General part information

Q-1V03T0 Series

Cable Assembly Coaxial SMB to N-Type RG-316 DB 72.0" (1.8m) 6.0'

Documents

Technical documentation and resources

No documents available
