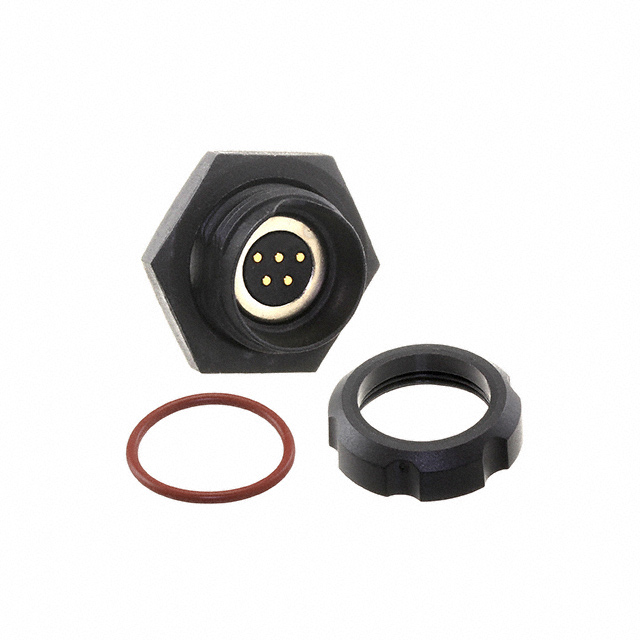

MF2K111-299L

Obsolete

Rosenberger

CONN JACK FMALE 5POS SOLDER CUP

Search across all available documentation for this part.

Obsolete

Rosenberger

CONN JACK FMALE 5POS SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	MF2K111-299L

Color	Black
Connector Type	Female Sockets, Jack
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.15 µm
Contact Finish Thickness - Mating	5.9 µin
Contact Material	Brass
Ingress Protection	IP67, IP65
Insert Material	Glass Filled, Polyamide (PA66), Nylon 6/6
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Front Side Nut
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-25 °C
Primary Material	Plastic
Shell Material	Polyamide (PA66), Nylon 6/6, Glass Filled
Shielding	Unshielded
Voltage Rating	50 V

Part	Color	Contact Material	Voltage Rating	Mounting Feature	Contact Finish - Mating	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Primary Material	Insert Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Connector Type	Material Flammability Rating	Shielding
Rosenberger MF2K111-299L	Black	Brass	50 V	Bulkhead - Front Side Nut	Gold	Polyamide (PA66) Nylon 6/6 Glass Filled	-25 °C	75 ░C	IP65 IP67	Plastic	Glass Filled Nylon 6/6 Polyamide (PA66)	0.15 µm	5.9 µin	Female Sockets Jack	UL94 V-0	Unshielded

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

5 Position Circular Connector Jack, Female Sockets Solder Cup

Technical documentation and resources

No documents available
