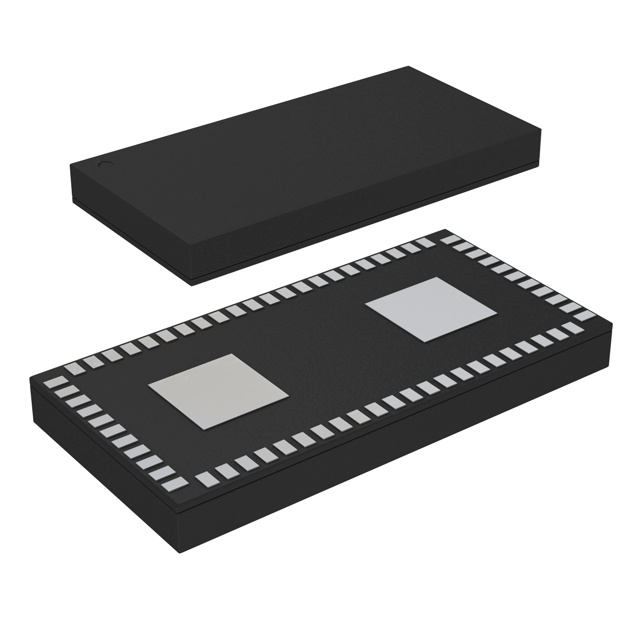

ZL30182LFF7
ActiveDUAL CHANNEL ANY-TO-ANY CLOCK TRANSLATOR 64 VFLGA 5X10X0.9MM T/R ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.

ZL30182LFF7
ActiveDUAL CHANNEL ANY-TO-ANY CLOCK TRANSLATOR 64 VFLGA 5X10X0.9MM T/R ROHS COMPLIANT: YES
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
Specification | ZL30182LFF7 | ZL30182 Series |
---|---|---|
- | - | |
Differential - Input:Output [custom] | True | True |
Differential - Input:Output [custom] | True | True |
Frequency - Max [Max] | 1.035 GHz | 1.035 GHz |
Input | CMOS, Crystal | CMOS, Crystal |
Main Purpose | Ethernet, SONET/SDH | Ethernet, SONET/SDH |
Mounting Type | Surface Mount | Surface Mount |
Number of Circuits | 2 | 2 |
Operating Temperature [Max] | 85 °C | 85 °C |
Operating Temperature [Min] | -40 °C | -40 °C |
Output | CMOS, CML | CMOS, CML |
Package / Case | 64-VFLGA Exposed Pad | 64-VFLGA Exposed Pad |
PLL | True | True |
Ratio - Input:Output | 4:3 | 4:3 |
Supplier Device Package | 64-LGA | 64-LGA |
Supplier Device Package [x] | 10 | 10 |
Supplier Device Package [y] | 5 | 5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Distributor | Package | Quantity | $ | |
---|---|---|---|---|
Digikey | Tape & Reel (TR) | 4000 | $ 24.41 | |
Microchip Direct | T/R | 1 | $ 30.32 | |
25 | $ 25.26 | |||
100 | $ 22.98 | |||
1000 | $ 21.21 | |||
5000 | $ 20.12 | |||
Newark | Each | 100 | $ 22.98 |
ZL30182 Series
Dual Channel Any-to-Any Translator and JA
Part | Operating Temperature [Max] | Operating Temperature [Min] | Input | Package / Case | Number of Circuits | Output | Ratio - Input:Output | PLL | Differential - Input:Output [custom] | Differential - Input:Output [custom] | Mounting Type | Supplier Device Package [x] | Supplier Device Package | Supplier Device Package [y] | Frequency - Max [Max] | Main Purpose |
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Microchip Technology ZL30182LFF7 | 85 °C | -40 °C | CMOS, Crystal | 64-VFLGA Exposed Pad | 2 | CML, CMOS | 4:3 | Surface Mount | 10 | 64-LGA | 5 | 1.035 GHz | Ethernet, SONET/SDH | |||
Microchip Technology ZL30182LFF7 | ||||||||||||||||
Microchip Technology ZL30182LFG7 | 85 °C | -40 °C | CMOS, Crystal | 64-VFLGA Exposed Pad | 2 | CML, CMOS | 4:3 | Surface Mount | 10 | 64-LGA | 5 | 1.035 GHz | Ethernet, SONET/SDH |
Description
General part information
ZL30182 Series
[CREATE AND SAMPLE YOUR CUSTOM ZL30182 HERE](https://clockworks.microchip.com/microchip/design/inputZL)
The ZL30182 is a dual channel high performance OTN clock translator that provides output clocks with jitter performance of 250fs RMS. The device integrates dual, independent digital phase locked loops (DPLLs), dual analog PLLs and EEPROM. With programmable loop bandwidth from 5Hz to 500 Hz the DPLL provides hitless reference switching, holdover and jitter filtering. The integrated APLLs generate the ultra-low jitter output clocks programmable to any frequency from <1Hz to 1035MHz. The integrated EEPROM provides automatic self-configuration of the device at start-up.
