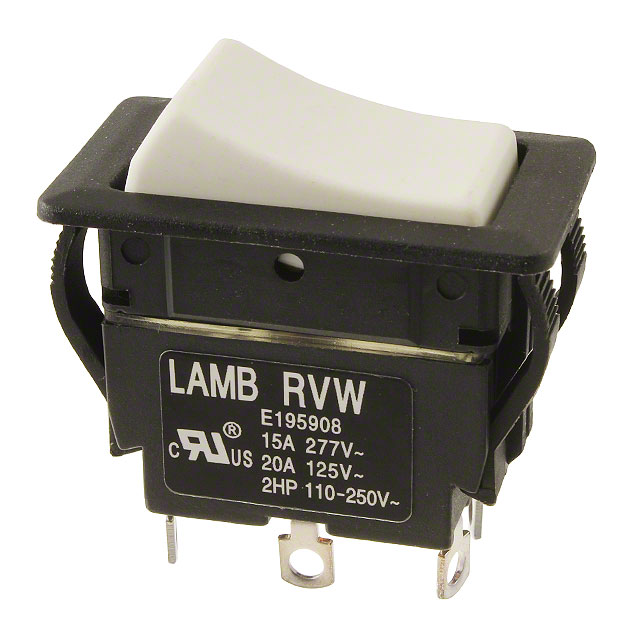

RVW5GD1200

Active

E-Switch

SWITCH ROCKER DPDT 20A 125V

Search across all available documentation for this part.

Active

E-Switch

SWITCH ROCKER DPDT 20A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	RVW5GD1200

Actuator Marking	No Marking
Actuator Type	Concave (Curved)
Circuit	DPDT
Color - Actuator/Cap	White
Current Rating (Amps)	20 A
Electrical Life	6000 Cycles
Ingress Protection	IP54 - Dust Protected, Water Resistant
Mounting Type	Panel Mount, Snap-In
Operating Temperature [Max]	55 °C
Operating Temperature [Min]	-20 C
Panel Cutout Dimensions [x]	36.8 mm
Panel Cutout Dimensions [y]	21 mm
Switch Function	On-On
Termination Style	Solder Lug
Voltage Rating - AC	125 V

Part	Actuator Type	Actuator Marking	Mounting Type	Termination Style	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Operating Temperature [Max]	Operating Temperature [Min]	Ingress Protection	Electrical Life	Color - Actuator/Cap	Current Rating (Amps)	Voltage Rating - AC	Switch Function	Circuit
E-Switch RVW5GD1200	Concave (Curved)	No Marking	Panel Mount Snap-In	Solder Lug	36.8 mm	21 mm	55 °C	-20 C	IP54 - Dust Protected Water Resistant	6000 Cycles	White	20 A	125 V	On-On	DPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 6.23

General part information

Rocker Switch DPDT 20A (AC) 125 V Panel Mount, Snap-In

Technical documentation and resources

No documents available
