NE03FS001

Active

WITHWAVE CO LTD

END LAUNCH 2.92 MM CONNECTOR (NA

Search across all available documentation for this part.

Active

WITHWAVE CO LTD

END LAUNCH 2.92 MM CONNECTOR (NA

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

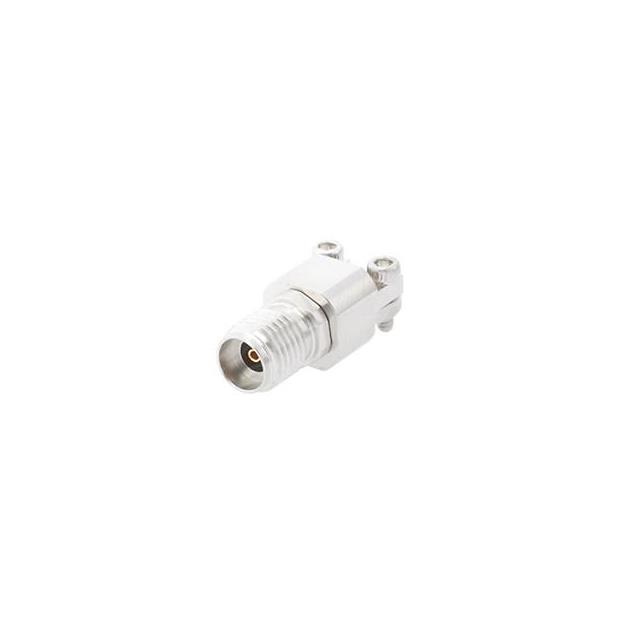

2.92mm Connector Receptacle, Female Socket 50 Ohms Board Edge, End Launch Compression

Technical documentation and resources

Specification	NE03FS001	NE03F Series

Body Finish	Nickel	Nickel
Body Material	Brass	Brass
Center Contact Material	Beryllium Copper	Beryllium Copper
Center Contact Plating	Gold	Gold
Connector Style	2.92 mm	2.92 mm
Connector Type	Receptacle, Female Socket	Receptacle, Female Socket
Contact Termination	Compression	Compression
Frequency - Max [Max]	40 GHz	40 GHz
Housing Color	Silver	Silver
Impedance	50 Ohms	50 Ohms
Mounting Feature	-	Bulkhead - Front Side Nut
Mounting Type	Board Edge, End Launch	Panel Mount, End Launch, Board Edge
Number of Ports	1	1
Shield Termination	Screw	Screw

Part	Connector Style	Mounting Feature	Body Finish	Frequency - Max [Max]	Center Contact Material	Center Contact Plating	Shield Termination	Housing Color	Body Material	Number of Ports	Mounting Type	Contact Termination	Impedance	Connector Type
WITHWAVE CO LTD NE03FS002	2.92 mm	Bulkhead - Front Side Nut	Nickel	40 GHz	Beryllium Copper	Gold	Screw	Silver	Brass	1	Board Edge, End Launch, Panel Mount	Compression	50 Ohms	Female Socket, Receptacle
WITHWAVE CO LTD NE03FS001	2.92 mm		Nickel	40 GHz	Beryllium Copper	Gold	Screw	Silver	Brass	1	Board Edge, End Launch	Compression	50 Ohms	Female Socket, Receptacle
