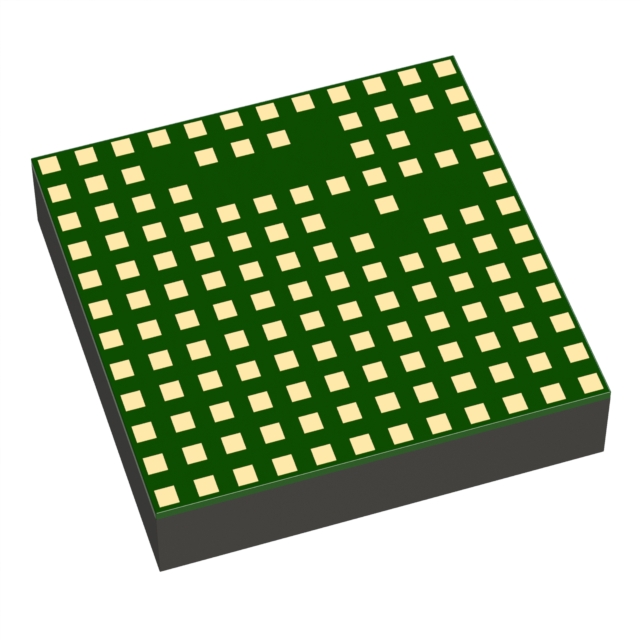

LTM4637IV#PBF

Active

Analog Devices

20A DC/DC ΜMODULE (POWER MODULE) STEP-DOWN REGULATOR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet R504 Reliability Data

LTM4637IV#PBF

Active

Analog Devices

20A DC/DC ΜMODULE (POWER MODULE) STEP-DOWN REGULATOR

Deep-Dive with AI

DocumentsDatasheet R504 Reliability Data

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LTM4637IV#PBF

Applications	ITE (Commercial)
Current - Output (Max) [Max]	20 A
Efficiency	88 %
Features	OVP, OCP, OTP
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-40 °C
Package / Case	133-BLGA Module
Size / Dimension [x]	0.59 in
Size / Dimension [x]	15 mm
Size / Dimension [y]	0.59 in
Size / Dimension [y]	15 mm
Size / Dimension [z]	0.17 in
Size / Dimension [z]	4.3 mm
Supplier Device Package	133-LGA (15x15)
Type	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	20 V
Voltage - Input (Min) [Min]	4.5 V
Voltage - Output 1 [Max]	5.5 V
Voltage - Output 1 [Min]	0.6 V

LTM4637 Series

20A DC/DC μModule (Power Module) Step-Down Regulator

Part	Voltage - Input (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Supplier Device Package	Efficiency	Number of Outputs	Package / Case	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Features	Current - Output (Max) [Max]	Applications	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Type	Mounting Type
Analog Devices LTM4637IY#PBF	20 V	125 °C	-40 °C	4.5 V	133-BGA (15x15)	88 %	1	133-BBGA Module	5.5 V	0.6 V	OCP OTP OVP	20 A	ITE (Commercial)	0.59 in	4.9 mm	15 mm	15 mm	0.59 in	0.19 in	Non-Isolated PoL Module	Surface Mount
Analog Devices LTM4637IV#PBF	20 V	125 °C	-40 °C	4.5 V	133-LGA (15x15)	88 %	1	133-BLGA Module	5.5 V	0.6 V	OCP OTP OVP	20 A	ITE (Commercial)	0.59 in	4.3 mm	15 mm	15 mm	0.59 in	0.17 in	Non-Isolated PoL Module	Surface Mount
