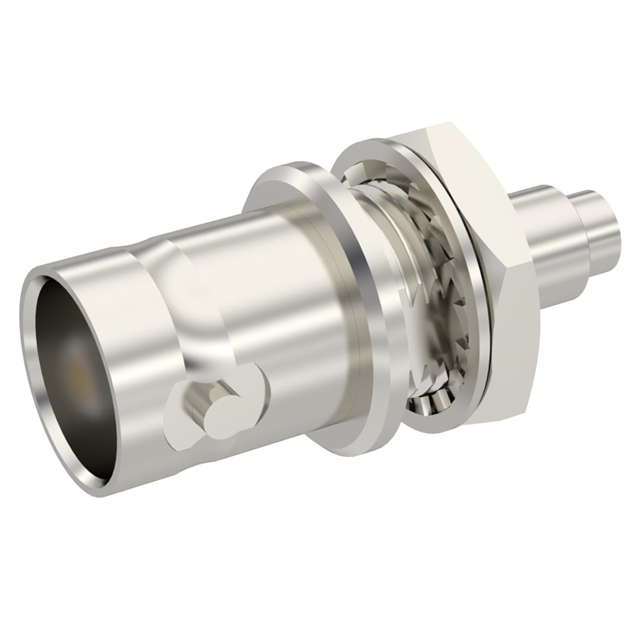

R142306503

Active

Radiall USA, Inc.

BNC / STRAIGHT BULKHEAD JACK FRO

Search across all available documentation for this part.

Active

Radiall USA, Inc.

BNC / STRAIGHT BULKHEAD JACK FRO

Technical Specifications

Parameters and characteristics for this part

Specification	R142306503

Body Finish	Nickel
Body Material	Brass
Cable Group	RG-179
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	BNC
Connector Type	Female Socket, Jack
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Bayonet Lock
Frequency - Max [Max]	1.5 GHz
Housing Color	Silver
Impedance	75 Ohms
Mating Cycles	500
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	335 V

Part	Cable Group	Frequency - Max [Max]	Housing Color	Connector Style	Shield Termination	Impedance	Number of Ports	Operating Temperature [Min]	Operating Temperature [Max]	Body Material	Mating Cycles	Contact Termination	Mounting Feature	Body Finish	Connector Type	Center Contact Plating	Fastening Type	Dielectric Material	Center Contact Material	Voltage Rating
Radiall USA, Inc. R142306503	RG-179	1.5 GHz	Silver	BNC	Crimp	75 Ohms	1	-65 ░C	165 °C	Brass	500	Crimp	Bulkhead - Rear Side Nut	Nickel	Female Socket Jack	Gold	Bayonet Lock	Polytetrafluoroethylene (PTFE)	Beryllium Copper	335 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

BNC Connector Jack, Female Socket 75 Ohms Panel Mount Crimp
