Q-1Z02U0001001M

Active

Amphenol Custom Cable

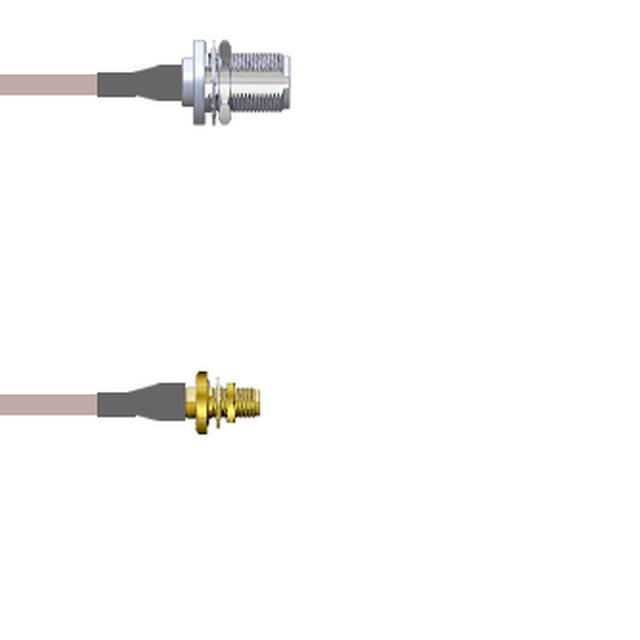

CBL ASSY SMA-NTYPE JCK-JCK 3.3'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-1Z02U0001001M

1st Connector	SMA Jack
1st Connector Mounting Feature	Bulkhead - Front Side Nut
1st Connector Mounting Type	Panel Mount
1st Contact Gender	Female
2nd Connector	N-Type Jack
2nd Connector Mounting Feature	Bulkhead - Front Side Nut
2nd Connector Mounting Type	Panel Mount
2nd Contact Gender	Female
Cable Type	RG-178
Color	Copper
Features	Shielded
Frequency - Max [Max]	11 GHz
Length	1 m
Length	3.3 ft
Length	39.4 in
Overall Impedance	50 Ohms
Style	SMA to N-Type

Q-1Z02U0 Series

Part	Color	1st Connector Mounting Feature	Overall Impedance	2nd Contact Gender	Style	1st Connector Mounting Type	2nd Connector	Length [x]	Length [x]	Cable Type	1st Contact Gender	Features	Frequency - Max [Max]	2nd Connector Mounting Feature	1st Connector	2nd Connector Mounting Type	Length	Length	Length
Amphenol Custom Cable Q-1Z02U0001018i	Copper	Bulkhead - Front Side Nut	50 Ohms	Female	SMA to N-Type	Panel Mount	N-Type Jack	457.2 mm	457.2 mm	RG-178	Female	Shielded	11 GHz	Bulkhead - Front Side Nut	SMA Jack	Panel Mount
Amphenol Custom Cable Q-1Z02U0001072i	Copper	Bulkhead - Front Side Nut	50 Ohms	Female	SMA to N-Type	Panel Mount	N-Type Jack			RG-178	Female	Shielded	11 GHz	Bulkhead - Front Side Nut	SMA Jack	Panel Mount	6 ft	72 in	1.8 m
Amphenol Custom Cable Q-1Z02U0001003i	Copper	Bulkhead - Front Side Nut	50 Ohms	Female	SMA to N-Type	Panel Mount	N-Type Jack			RG-178	Female	Shielded	11 GHz	Bulkhead - Front Side Nut	SMA Jack	Panel Mount		3 in	76.2 mm
Amphenol Custom Cable Q-1Z02U0001012i	Copper	Bulkhead - Front Side Nut	50 Ohms	Female	SMA to N-Type	Panel Mount	N-Type Jack			RG-178	Female	Shielded	11 GHz	Bulkhead - Front Side Nut	SMA Jack	Panel Mount		12 "	304.8 mm
Amphenol Custom Cable Q-1Z02U0001001M	Copper	Bulkhead - Front Side Nut	50 Ohms	Female	SMA to N-Type	Panel Mount	N-Type Jack			RG-178	Female	Shielded	11 GHz	Bulkhead - Front Side Nut	SMA Jack	Panel Mount	3.3 ft	39.4 in	1 m
Amphenol Custom Cable Q-1Z02U0001009i	Copper	Bulkhead - Front Side Nut	50 Ohms	Female	SMA to N-Type	Panel Mount	N-Type Jack			RG-178	Female	Shielded	11 GHz	Bulkhead - Front Side Nut	SMA Jack	Panel Mount		9 "	228.6 mm
Amphenol Custom Cable Q-1Z02U0001048i	Copper	Bulkhead - Front Side Nut	50 Ohms	Female	SMA to N-Type	Panel Mount	N-Type Jack			RG-178	Female	Shielded	11 GHz	Bulkhead - Front Side Nut	SMA Jack	Panel Mount	4 ft	48 in	1200 mm
Amphenol Custom Cable Q-1Z02U0001060i	Copper	Bulkhead - Front Side Nut	50 Ohms	Female	SMA to N-Type	Panel Mount	N-Type Jack			RG-178	Female	Shielded	11 GHz	Bulkhead - Front Side Nut	SMA Jack	Panel Mount	5 ft	5 '	1.5 m
Amphenol Custom Cable Q-1Z02U0001.75M	Copper	Bulkhead - Front Side Nut	50 Ohms	Female	SMA to N-Type	Panel Mount	N-Type Jack			RG-178	Female	Shielded	11 GHz	Bulkhead - Front Side Nut	SMA Jack	Panel Mount		29.53 "	750 mm
Amphenol Custom Cable Q-1Z02U0001002M	Copper	Bulkhead - Front Side Nut	50 Ohms	Female	SMA to N-Type	Panel Mount	N-Type Jack			RG-178	Female	Shielded	11 GHz	Bulkhead - Front Side Nut	SMA Jack	Panel Mount	6.6 ft	78.7 in	2 m
