1175L SL001

Active

ALPHA WIRE

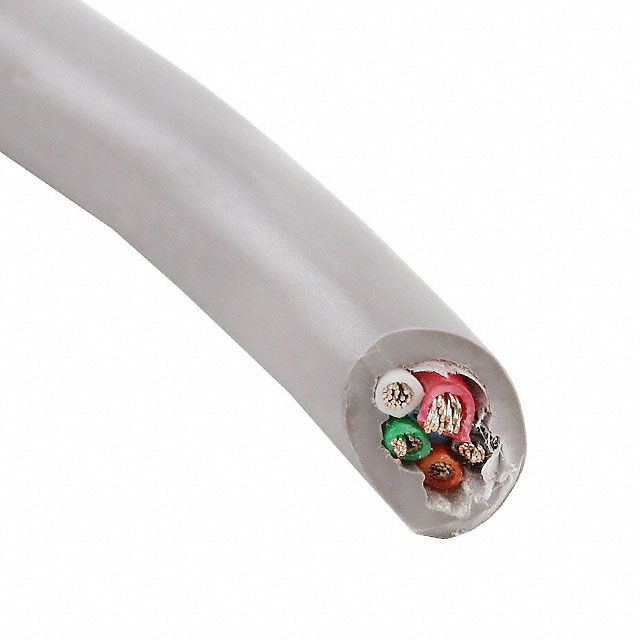

CABLE 5COND 22AWG SLATE 1000'

Search across all available documentation for this part.

Active

ALPHA WIRE

CABLE 5COND 22AWG SLATE 1000'

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	1175L SL001	1175L Series

Cable Type	Multi-Conductor	Multi-Conductor
Conductor Insulation	Low Smoke Zero Halogen (LSZH)	Low Smoke Zero Halogen (LSZH)
Conductor Material	Copper, Tinned	Copper, Tinned
Conductor Strand [custom]	7	7
Conductor Strand [custom]	30 AWG	30 AWG
Jacket (Insulation) Diameter [diameter]	5.11 mm	5.11 mm
Jacket (Insulation) Diameter [diameter]	0.201 in	0.201 in
Jacket (Insulation) Thickness	0.025 in	0.025 in
Jacket (Insulation) Thickness	0.635 mm	0.635 mm
Jacket Color	Slate	Slate
Length	1000 ft	1000 ft
Length	304.8 m	304.8 m
Length	-	500 '
Length	-	152.4 m
Number of Conductors	5	5
Usage	Control, Communication	Control, Communication
Voltage	300 V	300 V
Wire Gauge	22 AWG	22 AWG

AE C&C LSZH /500 FT /EACH

Part	Jacket (Insulation) Diameter [diameter]	Jacket (Insulation) Diameter [diameter]	Cable Type	Jacket Color	Conductor Strand [custom]	Conductor Strand [custom]	Voltage	Conductor Material	Length [x]	Length [x]	Wire Gauge	Conductor Insulation	Usage	Jacket (Insulation) Thickness	Jacket (Insulation) Thickness	Number of Conductors	Length	Length
ALPHA WIRE 1175L SL002	5.11 mm	0.201 in	Multi-Conductor	Slate	7	30 AWG	300 V	Copper, Tinned	500 '	152.4 m	22 AWG	Low Smoke Zero Halogen (LSZH)	Communication, Control	0.025 in	0.635 mm	5
ALPHA WIRE 1175L SL001	5.11 mm	0.201 in	Multi-Conductor	Slate	7	30 AWG	300 V	Copper, Tinned			22 AWG	Low Smoke Zero Halogen (LSZH)	Communication, Control	0.025 in	0.635 mm	5	1000 ft	304.8 m

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Spool	1	$ 659.38

General part information

5 Conductor Multi-Conductor Cable Slate 22 AWG 1000.0' (304.8m)
