53K517-271N5

Active

Rosenberger

CONN N TYPE JACK ST 50OHM SOLDER

Search across all available documentation for this part.

Active

Rosenberger

CONN N TYPE JACK ST 50OHM SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	53K517-271N5

Body Finish	White Bronze
Body Material	Brass
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Bronze
Center Contact Plating	Gold
Connector Style	N Type
Connector Type	Female Socket, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	11 GHz
Housing Color	Silver
Impedance	50 Ohms

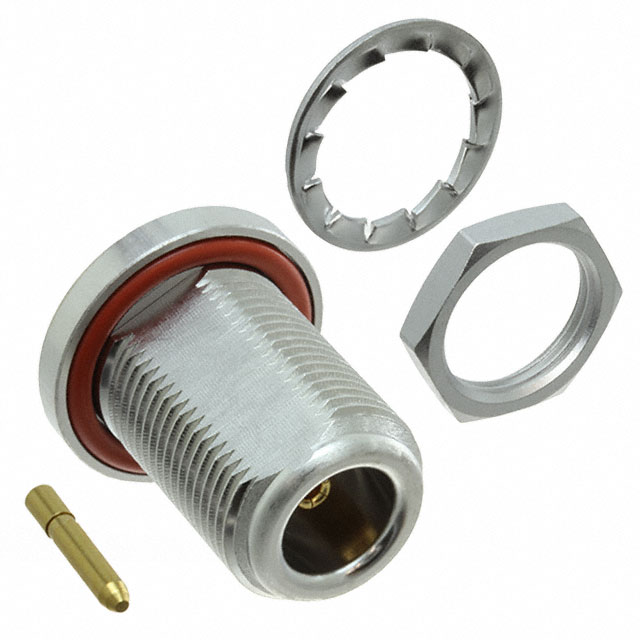

Includes	1 Lockwasher, 1 Connector, 1 Nut, 1 Contact
Ingress Protection	IP67 - Dust Tight, Waterproof
Insertion Loss	0.05 dB
Mating Cycles	500
Mounting Feature	Bulkhead - Front Side Nut
Number of Ports	1
Operating Temperature [Max]	110 °C
Operating Temperature [Min]	-25 °C
Shield Termination	Solder
Voltage Rating	500 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Insertion Loss	Center Contact Material	Body Material	Frequency - Max [Max]	Ingress Protection	Body Finish	Contact Termination	Number of Ports	Mounting Feature	Shield Termination	Housing Color	Connector Style	Includes	Connector Type	Mating Cycles	Dielectric Material	Center Contact Plating	Impedance	Cable Group
Rosenberger 53K517-271N5	-25 °C	110 °C	500 V	0.05 dB	Bronze	Brass	11 GHz	IP67 - Dust Tight Waterproof	White Bronze	Solder	1	Bulkhead - Front Side Nut	Solder	Silver	N Type	1 Connector 1 Contact 1 Lockwasher 1 Nut	Female Socket Jack	500	Polytetrafluoroethylene (PTFE)	Gold	50 Ohms	RG-405 (.085" Semi Rigid)
Rosenberger 53K517-802N5	-25 °C	85 °C	500 V	0.05 dB	Bronze	Brass	11 GHz	IP67 - Dust Tight Waterproof	White Bronze	Crimp	1	Bulkhead - Front Side Nut	Crimp	Silver	N Type	1 Connector 1 Contact 1 Ferrule 1 Lockwasher 1 Nut	Female Socket Jack	500	Polytetrafluoroethylene (PTFE)	Gold	50 Ohms	188A 316 RG-174A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

N Type Connector Jack, Female Socket 50 Ohms Panel Mount Solder
