Q-0M056000H060i

Active

Amphenol Custom Cable

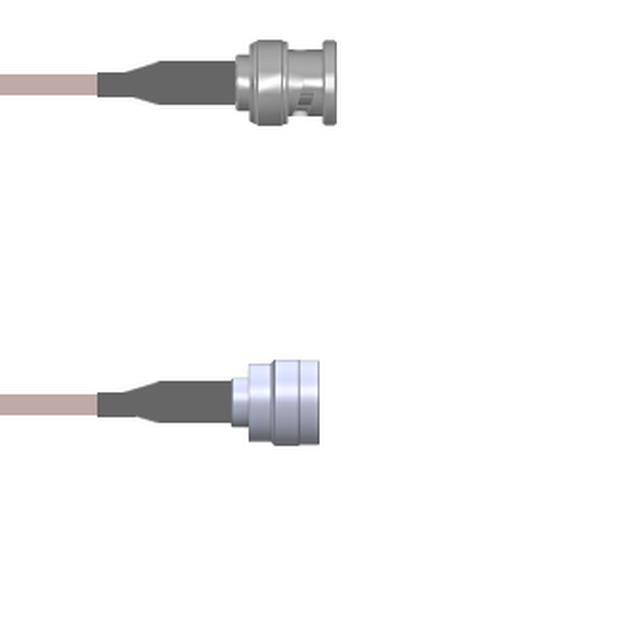

CBL ASSY BNC-TNC PLUG-PLUG 5'

Deep-Dive with AI

Search across all available documentation for this part.

Q-0M056000H060i

Active

Amphenol Custom Cable

CBL ASSY BNC-TNC PLUG-PLUG 5'

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	Q-0M056000H060i

1st Connector	BNC Plug
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Male
2nd Connector	TNC Plug
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Male
Cable Type	RG-142
Color	Copper
Features	Shielded
Frequency - Max [Max]	4 GHz
Length	5 ft
Length	1.5 m
Length	5 '
Overall Impedance	50 Ohms
Style	BNC to TNC

Q-0M0560 Series

Part	2nd Connector	1st Contact Gender	2nd Contact Gender	Overall Impedance	Color	Cable Type	1st Connector	Features	Style	Frequency - Max [Max]	2nd Connector Mounting Type	Length	Length	1st Connector Mounting Type	Length	Length [x]	Length [x]
Amphenol Custom Cable Q-0M056000H036i	TNC Plug	Male	Male	50 Ohms	Copper	RG-142	BNC Plug	Shielded	BNC to TNC	4 GHz	Free Hanging (In-Line)	91.44 cm	36 in	Free Hanging (In-Line)
Amphenol Custom Cable Q-0M056000H002M	TNC Plug	Male	Male	50 Ohms	Copper	RG-142	BNC Plug	Shielded	BNC to TNC	4 GHz	Free Hanging (In-Line)	2 m	78.7 in	Free Hanging (In-Line)	6.6 ft
Amphenol Custom Cable Q-0M056000H018i	TNC Plug	Male	Male	50 Ohms	Copper	RG-142	BNC Plug	Shielded	BNC to TNC	4 GHz	Free Hanging (In-Line)			Free Hanging (In-Line)		457.2 mm	457.2 mm
Amphenol Custom Cable Q-0M056000H072i	TNC Plug	Male	Male	50 Ohms	Copper	RG-142	BNC Plug	Shielded	BNC to TNC	4 GHz	Free Hanging (In-Line)	1.8 m	72 in	Free Hanging (In-Line)	6 ft
Amphenol Custom Cable Q-0M056000H1.5M	TNC Plug	Male	Male	50 Ohms	Copper	RG-142	BNC Plug	Shielded	BNC to TNC	4 GHz	Free Hanging (In-Line)	1.5 m	59.1 in	Free Hanging (In-Line)	4.9 ft
Amphenol Custom Cable Q-0M056000H060i	TNC Plug	Male	Male	50 Ohms	Copper	RG-142	BNC Plug	Shielded	BNC to TNC	4 GHz	Free Hanging (In-Line)	1.5 m	5 '	Free Hanging (In-Line)	5 ft
Amphenol Custom Cable Q-0M056000H0.5M	TNC Plug	Male	Male	50 Ohms	Copper	RG-142	BNC Plug	Shielded	BNC to TNC	4 GHz	Free Hanging (In-Line)	50 cm	19.69 "	Free Hanging (In-Line)
Amphenol Custom Cable Q-0M056000H003M	TNC Plug	Male	Male	50 Ohms	Copper	RG-142	BNC Plug	Shielded	BNC to TNC	4 GHz	Free Hanging (In-Line)	3 m	118.1 in	Free Hanging (In-Line)	9.8 '
Amphenol Custom Cable Q-0M056000H012i	TNC Plug	Male	Male	50 Ohms	Copper	RG-142	BNC Plug	Shielded	BNC to TNC	4 GHz	Free Hanging (In-Line)	304.8 mm	12 "	Free Hanging (In-Line)
Amphenol Custom Cable Q-0M056000H.75M	TNC Plug	Male	Male	50 Ohms	Copper	RG-142	BNC Plug	Shielded	BNC to TNC	4 GHz	Free Hanging (In-Line)	750 mm	29.53 "	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 99.57
		25	$ 97.60
		50	$ 95.64
		100	$ 93.67
		250	$ 91.70

Description

General part information

Q-0M0560 Series

Cable Assembly Coaxial BNC to TNC RG-142 60.0" (1.5m) 5.0'

Documents

Technical documentation and resources

No documents available
