H2MA305D101100

Active

Unictron Technologies Corporation

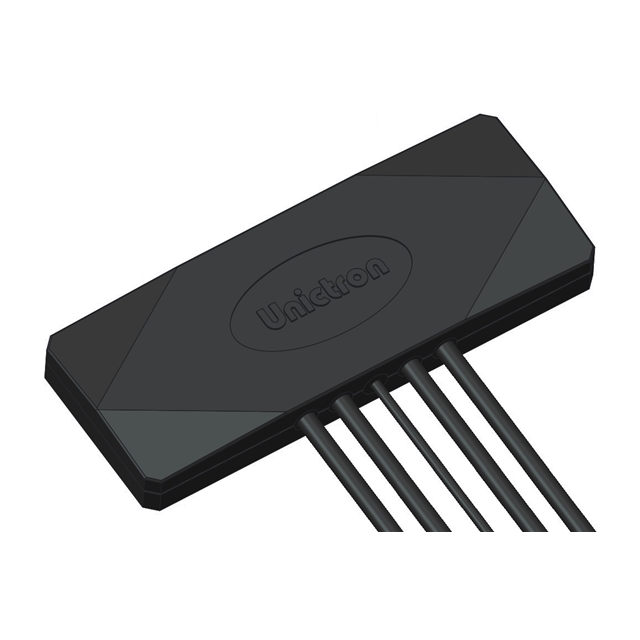

5IN1 EXTERNAL ANTENNA GNSS + LTE

Search across all available documentation for this part.

Active

Unictron Technologies Corporation

5IN1 EXTERNAL ANTENNA GNSS + LTE

Technical Specifications

Parameters and characteristics for this part

Specification	H2MA305D101100

Antenna Type	Flat Patch
Applications	Beidou, GPS, Wi-Fi, Galileo, GLONASS, LTE, GNSS
Features	LNA, Cable - 2m
Frequency (Center/Band)	1.561 GHz, 2.59 GHz, 3.6 GHz, 5.5 GHz, 1.94 GHz, 829 MHz, 2.442 GHz, 2.35 GHz, 1.602 GHz, 1.575 GHz
Frequency Group	Wide Band
Frequency Range [Max]	2.484 GHz, 5.85 GHz, 2.69 GHz, 2.4 GHz, 960 MHz, 2.17 GHz, 3.8 GHz
Frequency Range [Min]	5.15 GHz, 2.4 GHz, 698 MHz, 2.3 GHz, 2.49 GHz, 3.4 GHz, 1.71 GHz
Gain	2.6 dBi, 1.1 dBi, 1.8 dBi, 2.4 dBi, 2.5 dBi, 2 dBic, 3.1 dBi, 1.4 dBi, 3.2 dBi, 1.2 dBi, 1.5 dBic
Height (Max) [Max]	17 mm
Height (Max) [Max]	0.669 in
Ingress Protection	IP67
Mounting Type	Adhesive
Number of Bands	10
RF Family/Standard	Navigation, WiFi, Cellular
VSWR	3, 2, 5

5IN1 EXTERNAL ANTENNA GNSS + LTE

Part	Frequency Group	Features	Mounting Type	Gain	Frequency (Center/Band)	Frequency Range [Min]	Frequency Range [Max]	Number of Bands	VSWR	Height (Max) [Max]	Height (Max) [Max]	RF Family/Standard	Antenna Type	Ingress Protection	Applications
Unictron Technologies Corporation H2MA305D101100	Wide Band	Cable - 2m, LNA	Adhesive	1.1 dBi, 1.2 dBi, 1.4 dBi, 1.5 dBic, 1.8 dBi, 2 dBic, 2.4 dBi, 2.5 dBi, 2.6 dBi, 3.1 dBi, 3.2 dBi	1.561 GHz, 1.575 GHz, 1.602 GHz, 1.94 GHz, 2.35 GHz, 2.442 GHz, 2.59 GHz, 3.6 GHz, 5.5 GHz, 829 MHz	1.71 GHz, 2.3 GHz, 2.4 GHz, 2.49 GHz, 3.4 GHz, 5.15 GHz, 698 MHz	2.17 GHz, 2.4 GHz, 2.484 GHz, 2.69 GHz, 3.8 GHz, 5.85 GHz, 960 MHz	10	2, 3, 5	17 mm	0.669 in	Cellular, Navigation, WiFi	Flat Patch	IP67	Beidou, Galileo, GLONASS, GNSS, GPS, LTE, Wi-Fi

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

RF ANTENNA Beidou, Galileo, GLONASS, GPS, GNSS, LTE, Wi-Fi Flat Patch SMA Male Adhesive
