Connectors, Interconnects
770520-1
ActiveTE Connectivity Raychem Cable Protection

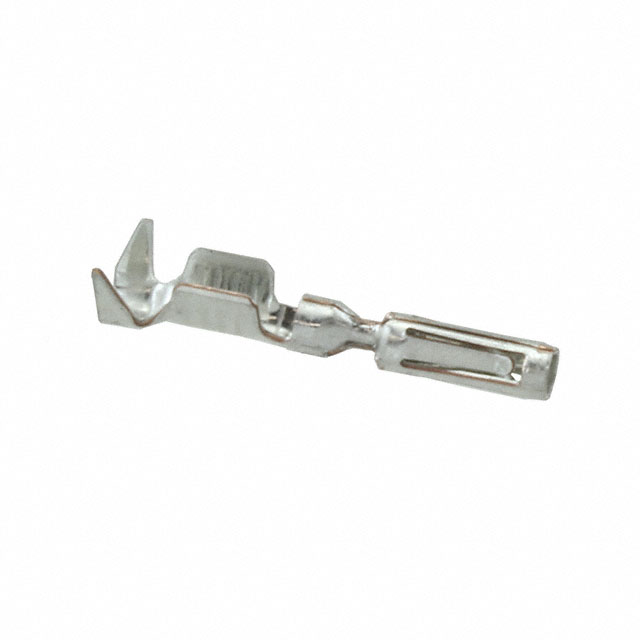

CONN SOCKET 16-20AWG CRIMP TIN
Deep-Dive with AI
Search across all available documentation for this part.
Connectors, Interconnects
770520-1
ActiveTE Connectivity Raychem Cable Protection
CONN SOCKET 16-20AWG CRIMP TIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 770520-1 |
|---|---|
| Contact Finish | Tin |
| Contact Termination | Crimp |
| Pin or Socket | Socket |
| Wire Gauge [Max] | 20 AWG |
| Wire Gauge [Min] | 16 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.16 | |
| 10 | $ 0.13 | |||
| 25 | $ 0.12 | |||
| 50 | $ 0.12 | |||
| 100 | $ 0.11 | |||
| 250 | $ 0.10 | |||
| 500 | $ 0.10 | |||
| 1000 | $ 0.09 | |||
| 2500 | $ 0.08 | |||
| Tape & Reel (TR) | 5000 | $ 0.07 | ||
| 10000 | $ 0.07 | |||
| 15000 | $ 0.07 | |||
| 25000 | $ 0.06 | |||
| 35000 | $ 0.06 | |||
| 50000 | $ 0.06 | |||
| 125000 | $ 0.06 | |||
Description
General part information
770520 Series
Socket Contact Tin 16-20 AWG Crimp
