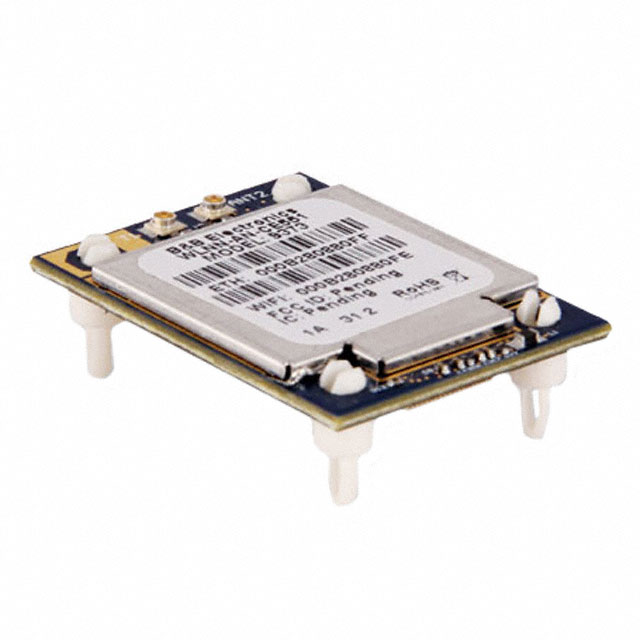

BB-WLNN-AN-DP551

Obsolete

Advantech Corp

RF TXRX MODULE WIFI U.FL SMD

Search across all available documentation for this part.

Obsolete

Advantech Corp

RF TXRX MODULE WIFI U.FL SMD

Technical Specifications

Parameters and characteristics for this part

Specification	BB-WLNN-AN-DP551

Antenna Type	Antenna Not Included, U.FL
Current - Receiving	200 mA
Current - Transmitting	370 mA
Data Rate	65 Mbps
Frequency	5 GHz, 2.4 GHz
Modulation	OFDM, DQPSK, BPSK, DSSS, DBPSK, QPSK, 16QAM, 64QAM, CCK
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Power - Output	17 dBm
Protocol	802.11a/b/g/n
RF Family/Standard	WiFi
Sensitivity	-92 dBm
Serial Interfaces	UART
Utilized IC / Part	CC2530
Voltage - Supply	3.3 V

Part	RF Family/Standard	Frequency	Serial Interfaces	Protocol	Power - Output	Package / Case	Mounting Type	Utilized IC / Part	Voltage - Supply	Modulation	Sensitivity	Current - Transmitting	Current - Receiving	Antenna Type	Operating Temperature [Max]	Operating Temperature [Min]	Data Rate
Advantech Corp BB-WLNN-AN-DP551	WiFi	2.4 GHz 5 GHz	UART	802.11a/b/g/n	17 dBm	Module	Surface Mount	CC2530	3.3 V	16QAM 64QAM BPSK CCK DBPSK DQPSK DSSS OFDM QPSK	-92 dBm	370 mA	200 mA	Antenna Not Included U.FL	85 °C	-40 °C	65 Mbps
Advantech Corp BB-WLNN-SP-DP551	WiFi	2.4 GHz 5 GHz	SPI	802.11a/b/g/n	17 dBm	Module	Through Hole	CC2530	3.3 V	16QAM 64QAM BPSK CCK DBPSK DQPSK DSSS OFDM QPSK	-92 dBm	370 mA	200 mA	Antenna Not Included U.FL	85 °C	-40 °C	65 Mbps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

WiFi 802.11a/b/g/n Transceiver Module 2.4GHz, 5GHz Antenna Not Included, U.FL Surface Mount
