Technical Specifications
Parameters and characteristics for this part
| Specification | STEVAL-1PS02A |
|---|---|
| Board Type | Fully Populated |
| Current - Output | 400 mA |
| Frequency - Switching | 2 MHz |
| Main Purpose | DC/DC, Step Down |
| Outputs and Type | Non-Isolated |
| Outputs and Type | 1 |
| Regulator Topology | Buck |
| Supplied Contents | Board(s) |
| Utilized IC / Part | ST1PS02AQTR |
| Voltage - Input [Max] | 5.5 V |
| Voltage - Input [Min] | 1.8 V |
| Voltage - Output [Max] | 1.75 V |
| Voltage - Output [Min] | 1.4 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
STEVAL-1PS02A Series

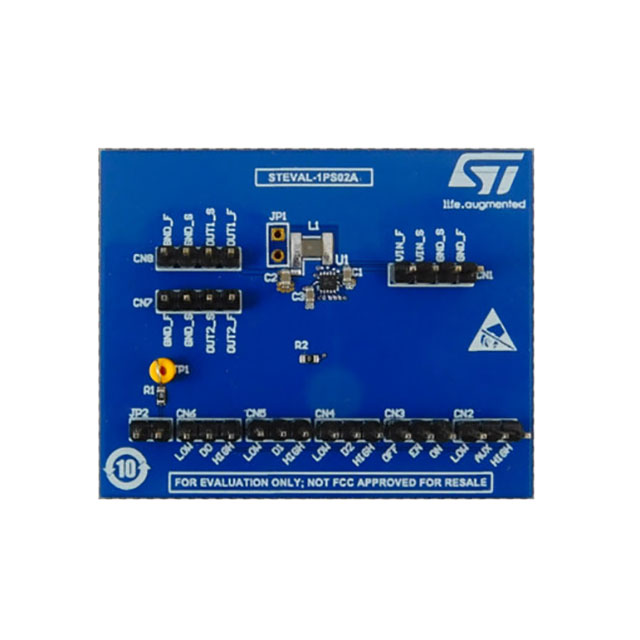

The STEVAL-1PS02A evaluation board allows evaluation of a smart converter design able to deliver up to 400 mA output current from a 1.8 V to 5.5 V input, with a dynamically adjustable 1.4 V to 1.75 V output voltage.
The board embeds the ST1PS02AQTR nano-quiescent miniaturized synchronous step-down converter which implements enhanced peak current control (PCC) and advanced design circuitry to minimize quiescent current. It features a controlled load switch to supply a subsystem with the same voltage rail. The device is supplied in TQFN12 (2.0x1.7 mm) thin package, but other packages are also available.
The board demonstrates how highly efficient conversion can be achieved using just the ST1PS02AQTR, a 2.2 μH inductor and two small capacitors.
