111-47-306-41-001000

Active

Mill-Max Manufacturing Corp.

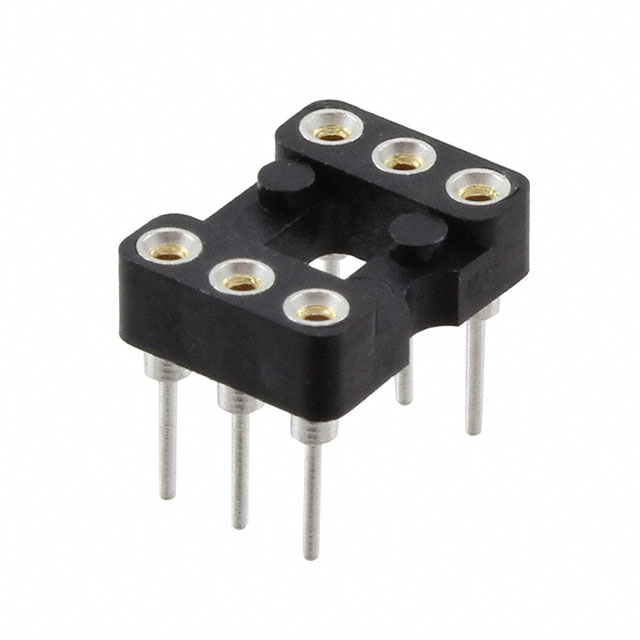

CONN IC DIP SOCKET 6POS GOLD

Deep-Dive with AI

Search across all available documentation for this part.

111-47-306-41-001000

Active

Mill-Max Manufacturing Corp.

CONN IC DIP SOCKET 6POS GOLD

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	111-47-306-41-001000

Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	200 µin
Contact Finish Thickness - Post	5.08 µm
Contact Material - Mating	Beryllium Copper
Contact Material - Post	Brass Alloy
Current Rating (Amps)	3 A
Features	Open Frame
Housing Material	Polycyclohexylenedimethylene Terephthalate (PCT), Polyester
Mounting Type	Through Hole
Number of Positions or Pins (Grid) [custom]	2
Number of Positions or Pins (Grid) [custom]	6
Number of Positions or Pins (Grid) [custom]	3
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Pitch - Post	2.54 mm
Pitch - Post	0.1 in
Termination	Solder
Termination Post Length	4.32 mm
Termination Post Length	0.17 in
Type	0.3 "
Type	7.62 mm
Type	DIP

111-47 Series

Part	Current Rating (Amps)	Features	Contact Resistance	Termination Post Length	Termination Post Length	Contact Material - Post	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Type	Type	Type	Termination	Number of Positions or Pins (Grid) [custom]	Material Flammability Rating	Contact Material - Mating	Pitch - Mating	Pitch - Mating	Contact Finish - Mating	Mounting Type	Pitch - Post	Pitch - Post	Housing Material	Contact Finish Thickness - Mating	Number of Positions or Pins (Grid)	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]	Number of Positions or Pins (Grid) [custom]
Mill-Max Manufacturing Corp. 111-47-304-41-001000	3 A	Open Frame	10 mOhm	4.32 mm	0.17 in	Brass Alloy	Tin	-55 °C	125 °C	200 µin	5.08 µm	0.3 "	7.62 mm	DIP	Solder	4	UL94 V-0	Beryllium Copper	0.1 in	2.54 mm	Gold	Through Hole	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash
Mill-Max Manufacturing Corp. 111-47-952-41-001000	3 A	Open Frame	10 mOhm	4.32 mm	0.17 in	Brass Alloy	Tin	-55 °C	125 °C	200 µin	5.08 µm	0.9 in	22.86 mm	DIP	Solder		UL94 V-0	Beryllium Copper	0.1 in	2.54 mm	Gold	Through Hole	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash
Mill-Max Manufacturing Corp. 111-47-642-41-001000	3 A	Open Frame	10 mOhm	4.32 mm	0.17 in	Brass Alloy	Tin	-55 °C	125 °C	200 µin	5.08 µm	0.6 in	15.24 mm	DIP	Solder		UL94 V-0	Beryllium Copper	0.1 in	2.54 mm	Gold	Through Hole	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash	42
Mill-Max Manufacturing Corp. 111-47-428-41-001000	3 A	Open Frame	10 mOhm	4.32 mm	0.17 in	Brass Alloy	Tin	-55 °C	125 °C	200 µin	5.08 µm	0.4 in	10.16 mm	DIP	Solder		UL94 V-0	Beryllium Copper	0.1 in	2.54 mm	Gold	Through Hole	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash	28
Mill-Max Manufacturing Corp. 111-47-424-41-001000	3 A	Open Frame	10 mOhm	4.32 mm	0.17 in	Brass Alloy	Tin	-55 °C	125 °C	200 µin	5.08 µm	0.4 in	10.16 mm	DIP	Solder		UL94 V-0	Beryllium Copper	0.1 in	2.54 mm	Gold	Through Hole	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash	24
Mill-Max Manufacturing Corp. 111-47-306-41-001000	3 A	Open Frame		4.32 mm	0.17 in	Brass Alloy	Tin	-55 °C	125 °C	200 µin	5.08 µm	0.3 "	7.62 mm	DIP	Solder			Beryllium Copper	0.1 in	2.54 mm	Gold	Through Hole	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash		2	6	3
Mill-Max Manufacturing Corp. 111-47-432-41-001000	3 A	Open Frame	10 mOhm	4.32 mm	0.17 in	Brass Alloy	Tin	-55 °C	125 °C	200 µin	5.08 µm	0.4 in	10.16 mm	DIP	Solder		UL94 V-0	Beryllium Copper	0.1 in	2.54 mm	Gold	Through Hole	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash					2 x 16	32
Mill-Max Manufacturing Corp. 111-47-950-41-001000	3 A	Open Frame	10 mOhm	4.32 mm	0.17 in	Brass Alloy	Tin	-55 °C	125 °C	200 µin	5.08 µm	0.9 in	22.86 mm	DIP	Solder		UL94 V-0	Beryllium Copper	0.1 in	2.54 mm	Gold	Through Hole	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash		2	50				25
Mill-Max Manufacturing Corp. 111-47-648-41-001000	3 A	Open Frame	10 mOhm	4.32 mm	0.17 in	Brass Alloy	Tin	-55 °C	125 °C	200 µin	5.08 µm	0.6 in	15.24 mm	DIP	Solder		UL94 V-0	Beryllium Copper	0.1 in	2.54 mm	Gold	Through Hole	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash	48
Mill-Max Manufacturing Corp. 111-47-322-41-001000	3 A	Open Frame	10 mOhm	4.32 mm	0.17 in	Brass Alloy	Tin	-55 °C	125 °C	200 µin	5.08 µm	0.3 "	7.62 mm	DIP	Solder		UL94 V-0	Beryllium Copper	0.1 in	2.54 mm	Gold	Through Hole	2.54 mm	0.1 in	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Flash	22

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 0.93
		10	$ 0.78
		25	$ 0.75
		67	$ 0.73
		134	$ 0.70
		268	$ 0.64
		536	$ 0.57
		1005	$ 0.51
		2546	$ 0.46

Description

General part information

111-47 Series

6 (2 x 3) Pos DIP, 0.3" (7.62mm) Row Spacing Socket Gold Through Hole
